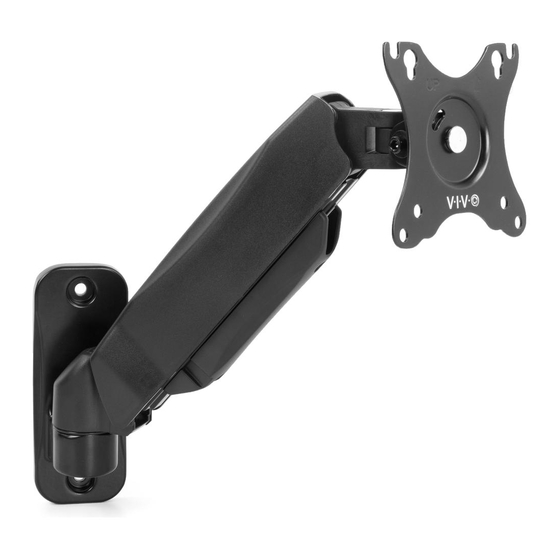

Pneumatic Arm Single Monitor Wall Mount
Instruction Manual
SKU: MOUNT-V001A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-v001a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-V001A
Summary of Contents for Vivo MOUNT-V001A
- Page 1 Pneumatic Arm Single Monitor Wall Mount Instruction Manual SKU: MOUNT-V001A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-v001a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Wood Wall Use a pencil to mark drilling location for wood beam and drill 2.2” deep holes using 3/16” bit. Use of a studfinder is recommended. Mount arm (A) to wall using screws (W-A) and washers (W-C). Do NOT use anchors (W-B) for wood beam installation.
- Page 4 STEP 2 Press covers (B) into screw holes. STEP 3 Install screws (M-A or M-B) with washers (M-C) in top two holes of the monitor, leaving 3mm of space between the screw heads and the monitor. Tighten using 5mm Allen Wrench (C). Hang monitor over top two slots of VESA plate, install two bottom screws, and then tighten top screws using the 5mm Allen Wrench (C).
- Page 5 STEP 4 Tighten the socket screw if the joints are making a popping sound. Adjust arm tension by turning the screw with the Allen Wrench (C). Clockwise reduces tension, counterclockwise increases tension. The tension should be just enough to hold your monitor in place without lifting itself up. If needed, adjust bolts on the sides of the hinge behind the VESA plate to tighten or loosen the tilt angle.
- Page 6 STEP 6 Insert cables and replace cover while making sure the cables have enough slack to allow enough free movement of the arm.
- Page 7 Adjust as Desired 180 ° +90° 360 ° -45 ° 180 °...
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
