User's Guide
TN-GB-xM5x
Gigabit Interface Converter (GBIC)
Transceiver Modules

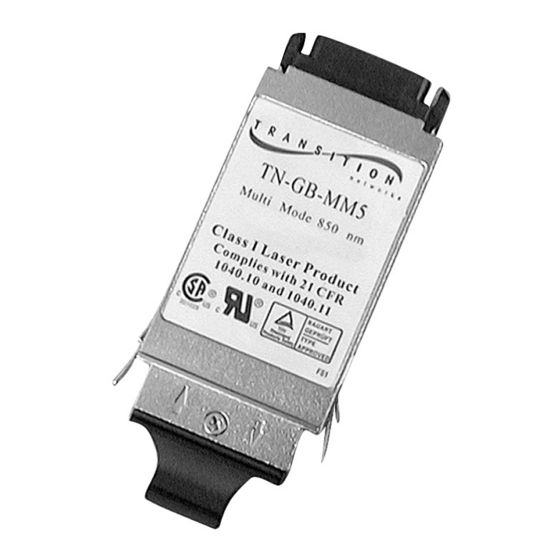

The Transition Networks TN-GB-xM5x series Gigabit
Interface Converter (GBIC) transceiver modules,
designed to be installed in any GBIC port, connect
multimode 1000Base-SX or single mode 1000Base-LX
fiber-optic cable to the network through the GBIC
connector.
The GBIC transceiver also complies with IEEE
802.3z™ which allows this device to be used with
IEEE 803.3z™ compliant devices from other vendors
without voiding the warranty of either device.
Part Number
Duplex Fiber-Optic Port
TN-GB-MM5
SC, 1000Base-SX, 850 nm multimode,
220m (720ft)* (62.5/125µm), 500m (1640ft)* (50/125 µm)
TN-GB-ESX5
SC, 1000Base-SX, 1300 nm, extended multimode,
up to 2Km (1.2 miles)* (50/125 μ m only)
TN-GB-ESX6
SC, 1000Base-SX, 1300 nm, extended multimode,
up to 2Km (1.2 miles)* (60/125 μ m only)
TN-GB-SM5
SC, 1000Base-LX, 1310 nm single mode, 10 km (6.2 miles)*
TN-GB-SM53
SC, 1000Base-LX, 1310 nm single mode, 30 km (18.8 miles)*
TN-GB-SM55
SC, 1000Base-LX, 1550 nm single mode, 50 km (31.2 miles)*
TN-GB-SM58
SC, 1000Base-LX, 1550 nm single mode, 80 km (50.0 miles)*
TN-GB-SM512
SC, 1000Base-LX, 1550 nm single mode, 120 km (75.0 miles)**
Installation . . . . . . . . . . . . . . . .2
Technical Specifications . . . . . .4
Fiber Cable Specification . . . . .5
Compliance Information . . . . . .7
Advertisement
Related Manuals for Transition Networks TN-GB-ESX5
Summary of Contents for Transition Networks TN-GB-ESX5
- Page 1 Part Number Duplex Fiber-Optic Port TN-GB-MM5 SC, 1000Base-SX, 850 nm multimode, 220m (720ft)* (62.5/125µm), 500m (1640ft)* (50/125 µm) TN-GB-ESX5 SC, 1000Base-SX, 1300 nm, extended multimode, up to 2Km (1.2 miles)* (50/125 μ m only) TN-GB-ESX6 SC, 1000Base-SX, 1300 nm, extended multimode, up to 2Km (1.2 miles)* (60/125 μ...
-
Page 2: Installation
TN-GB-xM5x Installation Install the GBIC Transceiver To install the TN-GB-xM5x GBIC transceiver module into a media converter: Position the module at the installation slot so that the label faces up. Carefully slide the module into the installation slot, aligning the module with the internal installation guides. -
Page 3: Technical Specification
TN-GB-xM5x Technical Specification For use with Transition Networks Model TN-GB-xM5x or equivalent. Standards IEEE802.3z Gigabit Ethernet (1000BASE-SX and 1000BASE-LX); Revision 5.4 compliant [4] (GBIC). Laser Class 1 Product which complies with the requirements of IEC 60825-1 and IEC 60825-2 Dimensions 1.2”... -
Page 4: Compliance Information
6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: TN-GB-xM5x Series GBIC Transceiver Modules Part Number(s): TN-GB-MM5, TN-GB-ESX5, TN-GB-ESX6, TN-GB-SM5, TN-GB-SM53, TN-GB-SM55,TN-GB-SM58, TN-GB-SM512 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the TN-GB-xM5x to which this declaration refers is in conformity with the following standards. - Page 5 TN-GB-xM5x Trademark Notice All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2002, 2004 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or means (graphic, electronic, mechanical) without written permission from Transition Networks.
