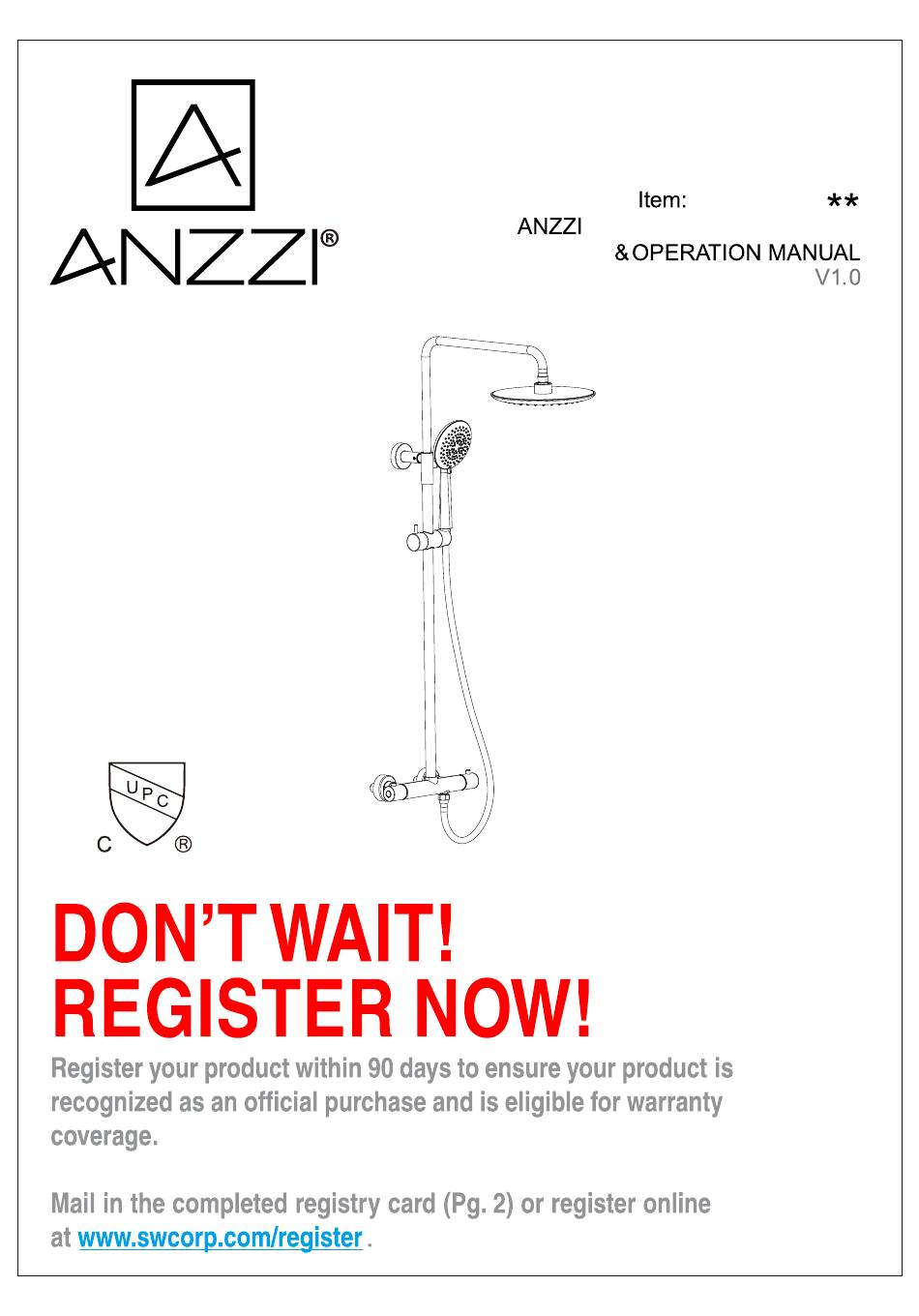

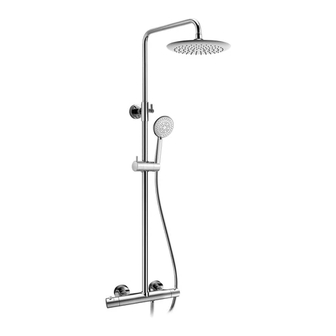

- Page 1 SH-AZ101 RAINFALL SHOWER BAR INSTALLATION 05/10/2022 808000-792 20220222...
- Page 3 Order or Purchase #..........SKU or Model #........
-
Page 5: Tools And Materials
PRODUCT SIZE CHART TOOLS AND MATERIALS PG. 1... - Page 6 COMPONENTS [14] [11] Part Description Qty. [ 01 ] Faucet [ 02 ] Thermostatic Cartridge [10] [ 03 ] Temp. Control Handle [ 04 ] Diverter [13] [ 05 ] Diverter Handle [ 06 ] [ 07 ] Cover [ 08 ] Nipple [ 09 ] Riser...
-
Page 7: Installation
INSTALLATION Cold 1/2" 35.5"-39.4" Floor [08] STEP 1: STEP 2: Ensure that the center distance of a. Wrap the smaller point of outlets are between 5.7" - 6.1". Nipples [08] with water sealing tape. The Hot inlet is on the Left, and t h e Cold inlet is on the Right. - Page 8 INSTALLATION STEP 5: Install the Riser [09] with washer to the Faucet [01]. Hand tighten the nut. [09] washer [01] STEP 6: a. Remove the cap from the Mounting Kit [11]. b. Install the Mounting Kit [11] to the rod [11] of the Riser [09] then install the Faucet [01] and hand tighten the nuts.
- Page 9 INSTALLATION STEP 7: a. Drill the holes for the Mounting Kit [11] using a 1/4" (6 mm) bit. b. Install the anchors. c. Secure the Mounting Kit [11] with screws. d. Make sure the screw holes are aligned [11] vertically. e.
- Page 10 INSTALLATION STEP 9: shower a. Install the Shower Head [14] with washer and secure. washer b. Loose the locking handle by turning [14] it anti-clockwise. Then adjust the height of Shower Head [14] to about 12.6"[320mm] above the head to get locking the best shower experience.
-
Page 11: Operation
OPERATION Diverter Handle [05] in Turn the Diverter Handle Turn the Diverter Handle close position. [05] anti-clockwise for [05] clockwise for Hand Shower [13] flow. Shower Head [14] flow. You can raise the Turn the Temp. control Flow tempreture is set in temperature by pressing Handle [03] clockwise will 100 F with the button of... -
Page 12: Cleaning And Maintenance
CLEANING & MAINTENANCE To preserve the finish on the metallic parts of your ANZZI faucet, apply non-abrasive wax, such as car wax. Any cleaners should be rinsed off immediately. When there is scale build up on the nozzle of showers, you can turn on the showers and simply rub over the spray nozzles to remove lime scale. - Page 13 temperature...
