Anzzi SD-AZFL06001 Series Install & Operation Manual

Glass shower door
Hide thumbs

Advertisement

Quick Links

Download this manual
A
ANZZI
DON'T WAIT!
REGISTER NOW!
Register your product within 90 days to ensure your product is
recognized as an official purchase and is eligible for warranty
coverage.
Mail in the completed registry card (Pg. 2) or register online
at www.swcorp.com/register.
®
ANZZI GLASS SHOWER DOOR
INSTALL & OPERATION MANUAL
Item : SD- AZFL06001
**
V1 .3

Advertisement

loading
Need help?

Need help?

Do you have a question about the SD-AZFL06001 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anzzi SD-AZFL06001 Series

Summary of Contents for Anzzi SD-AZFL06001 Series

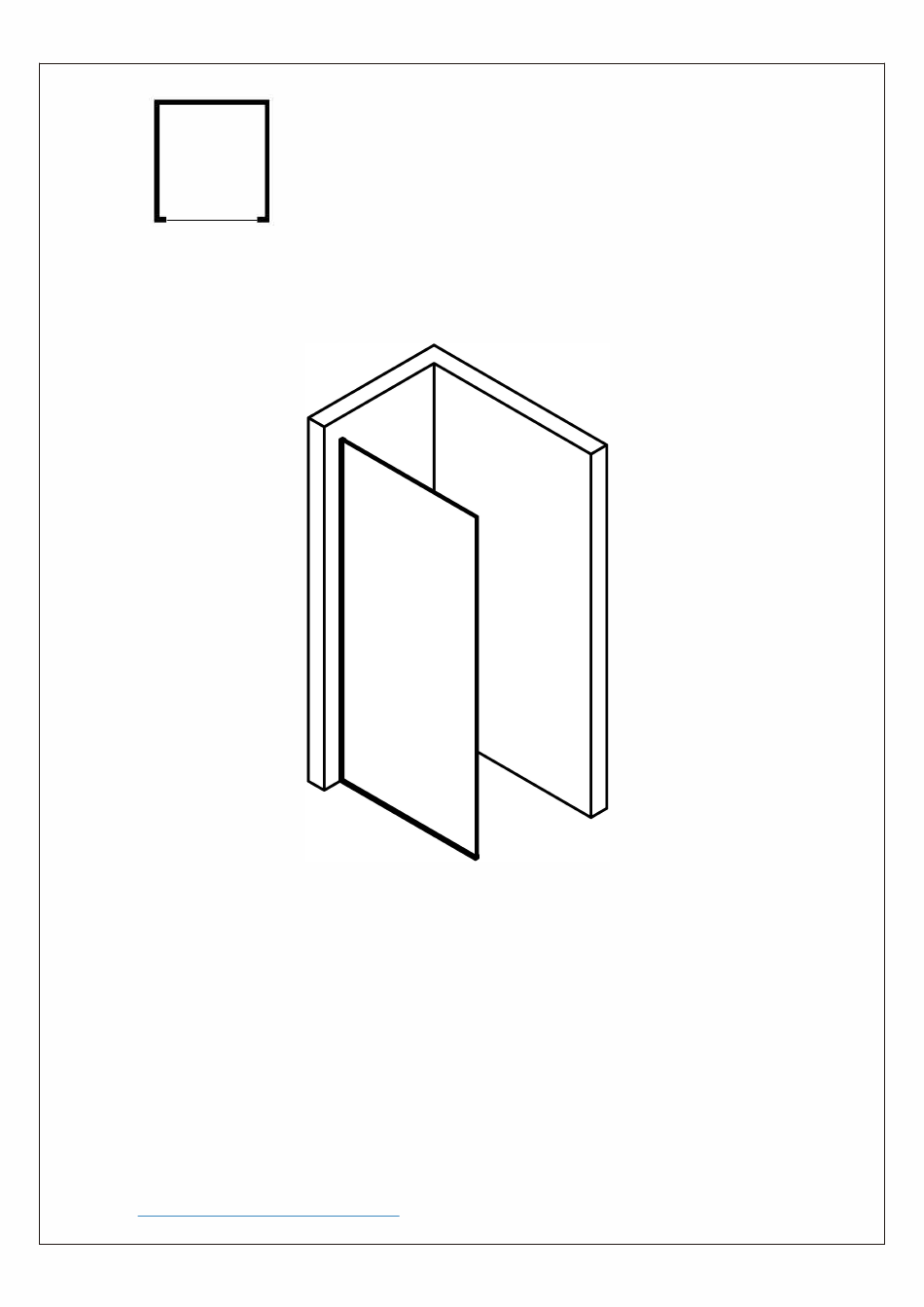

  • Page 1 Item : SD- AZFL06001 ® ANZZI GLASS SHOWER DOOR ANZZI INSTALL & OPERATION MANUAL V1 .3 DON'T WAIT! REGISTER NOW! Register your product within 90 days to ensure your product is recognized as an official purchase and is eligible for warranty coverage.

  • Page 2: Product Registration

    ® ANZZI PRODUCT REGISTRATION* IMPORTANT: YOURWARRANTYW ILLNOT BE RECOGNIZEDUNLESSTHIS CARD IS FULLYCOMPLETEDAND RETURNEDOR ONLINE REGISTRNION IS COMPLETED. To ensure that your warranty is registered and confirmed please do one of the following: Register online at www.swcorp.com/register. You will be asked to fill out the same information you would in the registration card.
  • Page 3 INSTALLATION GUIDE • Please check the product for transit damage, missing parts immediately. Damage reported later cannot be accepted. Please handle the product with care. Avoiding any impact on all sides and edges of the glass. • Consult your local plumbing codes prior to installation. •...
  • Page 4 INSTALLATION GUIDE &WARNING • Threshold must be level for proper installation. • The installation of this unit requires that you drill down into the threshold. Contact the manufacturer of the base, or threshold material with any questions regarding the drilling of holes into their product.
  • Page 5 Left-hand door installation shown Right-hand door installation shown...
  • Page 6 DIMENSIONS 34"[864mm� 74"[18 80mm]...
  • Page 7 PARTS [Ol]Plastic anchor X6 ll - ■ @lli 1111\\1 1- [03]Vertical Rail Xl [04]Vertical Rail Seal Strip Xl [02]5crew STSX40mm[1-9/16"] [07]Bottom Rail Seal Strip Xl [OS]Fixed Panel Xl [06]Bottom Rail Xl...
  • Page 8 ASSEMBLY Part Discription Qty. [01] Wall Plug [QS] Screw STSX40mm[l-9/16"] 6 [02] [03] Wall Jamb [01] [04] Wall Jamb Seal [OS] Fixed Panel [06] Bottom Rail [07] Bottom Rail Seal [02] [03] _JQ_ 2 ] GLASS THICKNESS: 10mm / 3/8" NOTE: INSTALLATION MUST BE DONE BY A QUALIFIED, LICENSED PROFESSIONAL.

  • Page 9: Installation Steps

    INSTALLATION STEPS Step 1 • This shower door must be installed into a stud. Minimum threshold space is required. IMPORTANT: Using a stud finder,ensure that the wall on both side of the enclosure has a stud in the location shown. A stud in this MARK THE HOLES ON location must be identified to support the THE WALL...
  • Page 10 Step 3 1. Replace the Wall Jamb[03]. Tighten the screws by the allen key. Fig 3 Step 4 1. Position the Bottom Rail [06] on the floor, perpendicular to the Wall Jamb[03]. Both Wall ° Jamb[03] and Bottom Rail [06] have a 45 angle to ensure a perfect connection.
  • Page 11 Step 5 1. Remove the Bottom Rail [06] and drill hole into the floor where marked. Place Wall Plugs [01] inside the holes. 2.lf needed, a rubber mallet can be used to insert Wall Plugs[0l]. 3.To reduce risk of property damage, the use of metal hammers is not recommended.
  • Page 12 Step 7 1. Clean the Fixed Panel[OS] with rubbing alcohol. Install the Wall Jamb Seal[04] to the Fixed Panel [OS]. The top end of the Wall Jamb Seal[04] should meet the top of the glass. The bottom end should leave a gap of 10mm from the bottom of the glass.
  • Page 13 Step 9 1. Install the Fixed Panel[0S] into the Bottom Rail [06] by placing the corner of the bottom of the fixed panel inside the outside edge of the Bottom Rail [06]. Then install the rest of the Fixed Panel[0S] into the Bottom Rail [06].
  • Page 14 Step 11 1. Apply a good quality Silicone Sealant on the Wall Jamb[03] and Bottom Rail [06] along the bottom profile and wall profiles (Fig 11). Fig 11 The sealant should be applied to the interior edge. .,,, 24 hours .,,, Allow 24 hours for silicone to dry before use.

  • Page 15: Care And Maintenance

    Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces. NOT E: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact ANZZI with any questions or concerns.
  • Page 16 ® ANZZI...
