ECHO
INSTALL GUIDE
Model#
SP-AZ022
PERFECTION IS OUR TRADITION™
v2.0516

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECHO SP-AZ022 and is the answer not in the manual?

Questions and answers

James Schoettler
April 15, 2025

What distance between top and bottom brackets when you drill into wall?

Subscribe to Our Youtube Channel

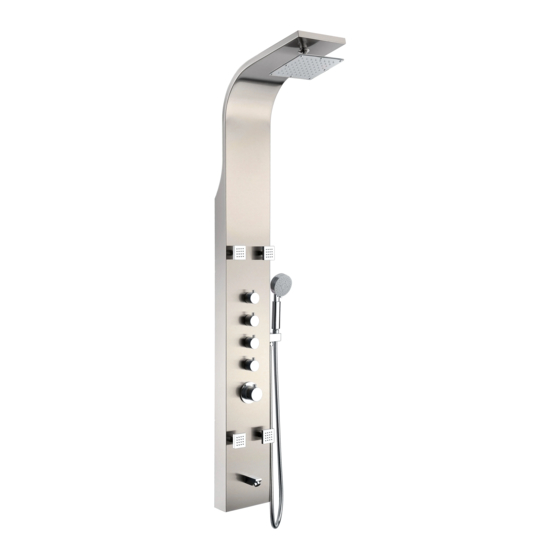

Summary of Contents for Anzzi ECHO SP-AZ022

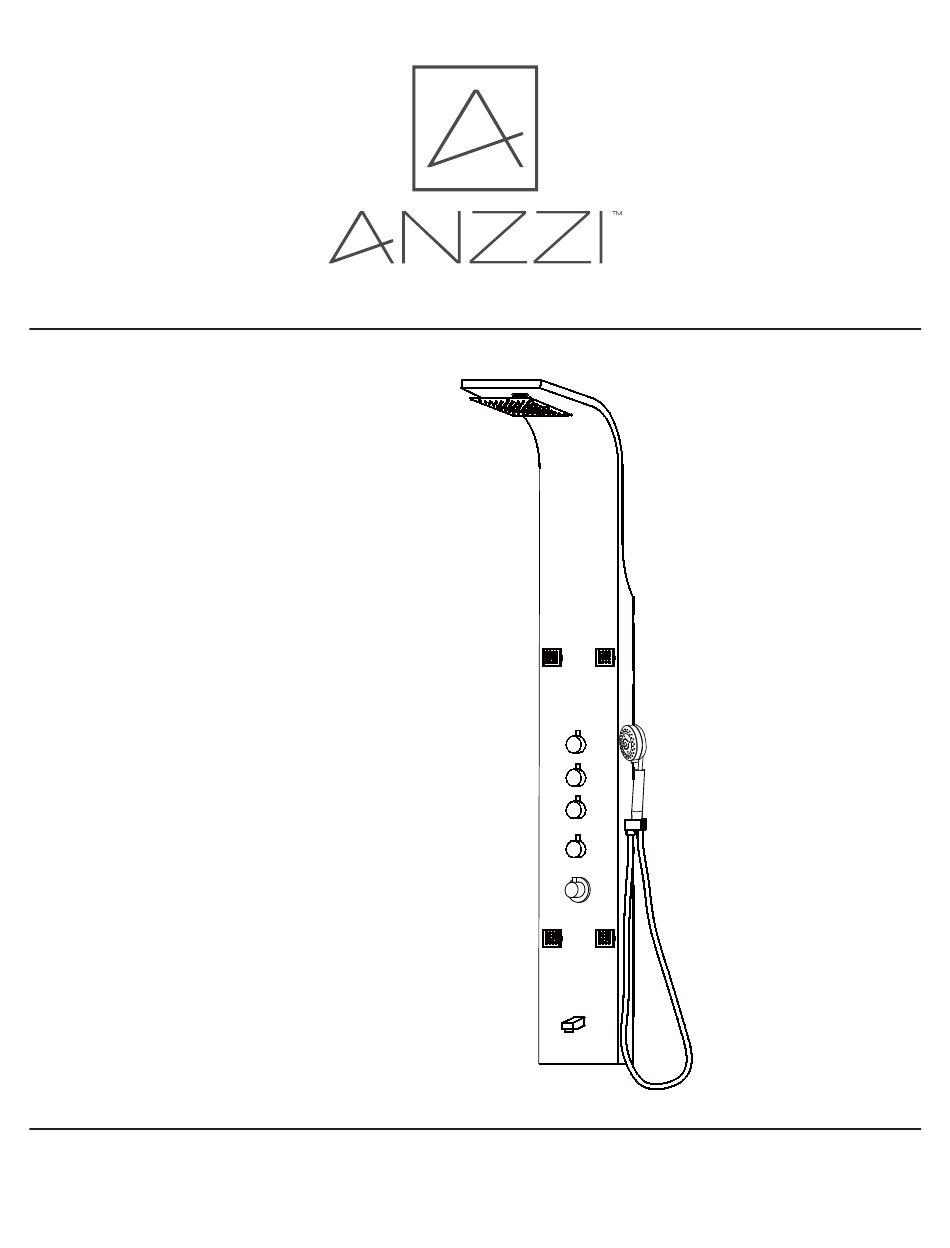

  • Page 1 ECHO INSTALL GUIDE Model# SP-AZ022 PERFECTION IS OUR TRADITION™ v2.0516...
  • Page 2: Table Of Contents

    Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product.
  • Page 3: Parts List

    PARTS LIST Component no. Component Material clip nut 1 brass body connector brass flange head shower 1. Shower Head body jets brass knob zinc 2. Body Jets wash 1 rubber function cartridge brass 3. Diverter handle zinc 4. Mixer handle plate cover brass thermostatic cartridge 5.
  • Page 4: Before You Start

    Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 1-844-44-ANZZI. PERFECTION IS OUR TRADITION™ pg. 2...
  • Page 5: Spec Drawing

    SPEC DRAWING 17.72" Perfection is our Tradition™ ECHO SP-AZ022 Material: Stainless Steel Finish: Brushed Handles: 5 Jets: Shower: 6.89” x 6.89“ Sprayer: 60” reach Weight: 20.72 lbs Height: 62.99” Supply: 1/2” connections Flow: 2.5 gpm *when reducer is removed 7.87" Features Heavy Rain™...
  • Page 6: Installation

    INSTALLATION (SETUP) Figure A IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Step A Drill the two holes for the top bracket 1” apart at the desired height. Step A.2 Drill the two holes for the bottom bracket 1”...
  • Page 7 INSTALLATION (SETUP) Figure C Figure B Step B Insert the wall anchors into the pre-drilled holes as shown in Figure B. Step C Place the shower panel brackets aligned with the drilled holes and using a Philips screw- driver ighten the screws to secure the brackets. PERFECTION IS OUR TRADITION™...
  • Page 8 Figure 1 Step 1A Insert the hand shower holder through the pre-drilled hole on the shower panel. Step 1B Install the water supply hose for the hand shower onto the holder, as shown. Step 1C Make sure all O-rings are inserted to prevent leakage. Step 1D Once the shower panel is fully installed and hung on the bracket, you can install the hand shower hose to the holder connection.
  • Page 9 INSTALLATION (HANDSHOWER) Figure 2 Standard 3 Setting Hand Hand Shower Shower Step 2A Finally, install the hand shower to the hose, as shown. PERFECTION IS OUR TRADITION™ pg. 7...
  • Page 10 Figure 4 Cold Step 4A Screw the cold and hot water hoese from the shower panel to the supply lines in the wall. Step 4B Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4. PERFECTION IS OUR TRADITION™...
  • Page 11 DISASSEMBLE (GPM REDUCER) Reducer NOTE: Due to water conservation laws, this unit is equipped with a GPM reducer. If your local code doesn’t have a restriction requirement, you can use the following steps to remove the reducer. Setp 5A Loosen the fastening nut of the faucet body 1 unscrew the hexagon nut from the faucet body 2.
  • Page 12: Care & Maintenance

    DO NOT ALLOW THE CLEANER TO SOAK. Following these simple principles will ensure you ANZZI™ product will remain as lustrous and stun- ning as the day it was first received. ENJOY! Sincerely, La Familia ANZZI™...
  • Page 13: Warranty

    ANZZI™ products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any product or parts that proves defective.
  • Page 15 Email..................I have read the ANZZI™ Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done strictly in accordance with instructions and guidelines contained in the ANZZI™ owner’s manual and installation guide.
  • Page 16 Perfection is our Tradition™...
