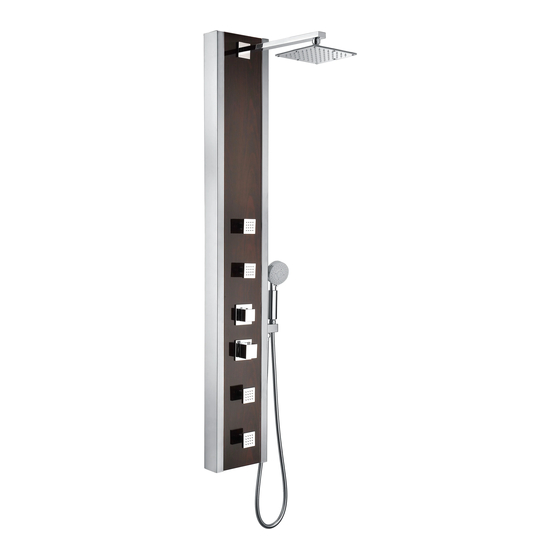

Anzzi MONSOON SP-AZ012 Install Manual
Hide thumbs Also See for MONSOON SP-AZ012:

Advertisement

Quick Links

MONSOON
INSTALL GUIDE
Model#
SP-AZ012
PERFECTION IS OUR TRADITION™
v2.0516

Advertisement

loading
Need help?

Need help?

Do you have a question about the MONSOON SP-AZ012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Anzzi MONSOON SP-AZ012

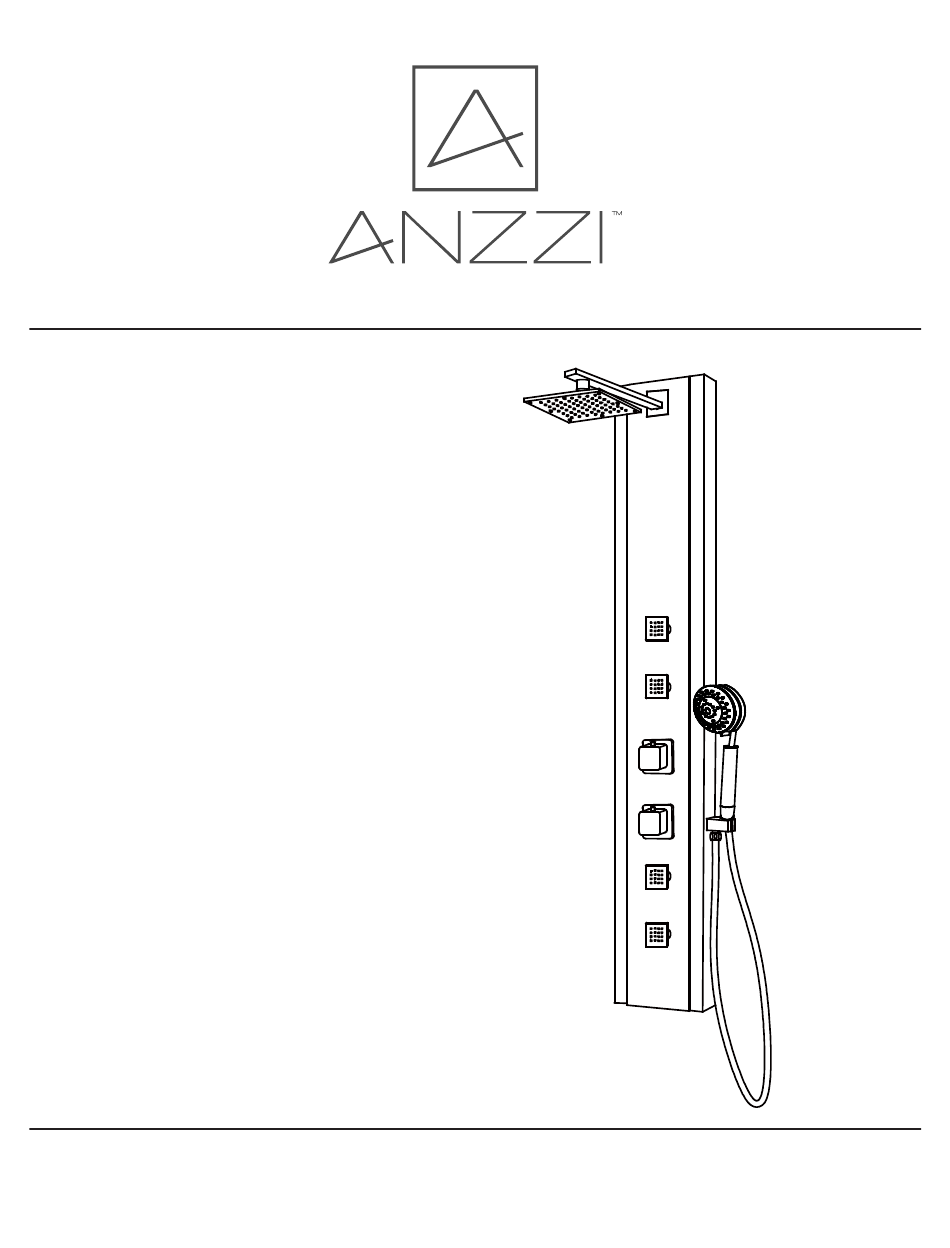

  • Page 1 MONSOON INSTALL GUIDE Model# SP-AZ012 PERFECTION IS OUR TRADITION™ v2.0516...
  • Page 2: Table Of Contents

    Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product.
  • Page 3: Parts List

    PARTS LIST Component no. Component Material head shower arm bar brass flange brass front body glass backside body washer 1 rubber arm bar nut brass clip 1. Shower Head one way joint body jets brass 2. Body Jets knob zinc 3.
  • Page 4: Before You Start

    Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 1-844-44-ANZZI. PERFECTION IS OUR TRADITION™ pg. 2...
  • Page 5: Spec Drawing

    SPEC DRAWING 20.37” MONSOON SP-AZ012 Material: Stainless steel & Tempered Glass Finish: Brushed & Dark Wood style Handles: 2 Jets: Shower: 6.89” x 6.89“ Sprayer: 60” reach Weight: 26.67 lbs Height: 59.05” Supply: 1/2” connections Flow: 1.8 gpm 8.66” Features Heavy Rain™...
  • Page 6: Installation

    INSTALLATION (SETUP) Figure A IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Step A Drill the two holes for the top bracket 1” apart at the desired height. Step A.2 Drill the two holes for the bottom bracket 1”...
  • Page 7 INSTALLATION (SETUP) Figure C Figure B Step B Insert the wall anchors into the pre-drilled holes as shown in Figure B. Step C Place the shower panel brackets aligned with the drilled holes and using a Philips screw- driver ighten the screws to secure the brackets. PERFECTION IS OUR TRADITION™...
  • Page 8 Figure 1 Step 1A Insert the shower wand holder through the pre-drilled hole on the shower panel. Step 1B Install the water supply hose for the shower wand onto the holder, as shown. Make sure all O-rings are inserted to prevent leakage. Step 1C Step 1D Once the shower panel is fully installed and hung on the bracket, you can install the shower...
  • Page 9 INSTALLATION (HANDSHOWER) Figure 2 Standard 3 Setting Hand Hand Shower Shower Step 2A Finally, install the shower wand to the hose, as shown. PERFECTION IS OUR TRADITION™ pg. 7...
  • Page 10 Figure 3 Step 3A Install the shower arm to the shower panel, using the rubber washer and nut on the opposite side to tighten. Step 3B Makes sure the shower arm is sitting correctly before installed the shower head. Step 3C Screw the shower head onto the shower arm.
  • Page 11 Figure 4 Cold Step 4A Screw the cold and hot water from the shower panel to the supply lines in the wall. Step 4B Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4. PERFECTION IS OUR TRADITION™ pg.
  • Page 12: Care & Maintenance

    CARE AND MAINTENANCE ANZZI™ products are crafted with superior quality standards and workmanship and are engineered to stand the test of time. However, that does not mean the product can be neglected and will need some care and cleaning. It is recommended to use regular soap and hot water along with a non-abrasive cloth or sponge to regularly clean the product.
  • Page 13: Warranty

    ANZZI™ products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any product or parts that proves defective.
  • Page 15 Email..................I have read the ANZZI™ Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done strictly in accordance with instructions and guidelines contained in the ANZZI™ owner’s manual and installation guide.
  • Page 16 Perfection is our Tradition™...
