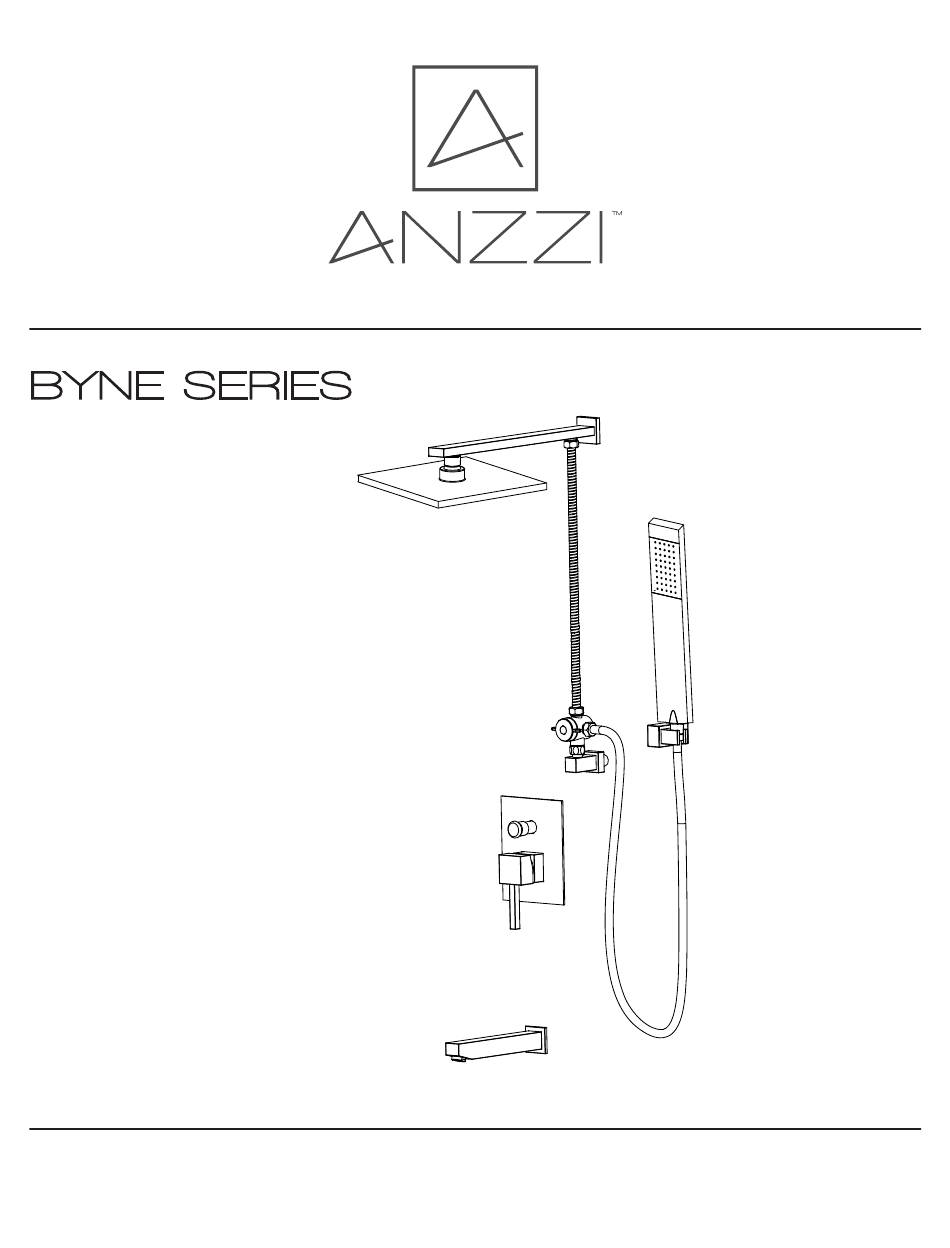

- Page 1 BYNE SERIES INSTALL GUIDE Model# SH-AZ013 PERFECTION IS OUR TRADITION™ v2.0516...
-
Page 2: Table Of Contents
Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. -
Page 3: Parts List
PARTS LIST ASME A112.18.1/CSA B125.1 PERFECTION IS OUR TRADITION™ pg. 1... -
Page 4: Before You Start
Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 1-844-44-ANZZI. PERFECTION IS OUR TRADITION™ pg. 2... -
Page 5: Spec Drawing
SPEC DRAWING [inches] PERFECTION IS OUR TRADITION™ pg. 3... -
Page 6: Installation
INSTALLATION Figure 1 Step 1A Drill holes according to the drawing shown. PERFECTION IS OUR TRADITION™ pg. 4... - Page 7 INSTALLATION Figure 2 Step 2A Connect plumbing supply lines to the facuet valve as shown. Step 2B Make sure the hot and cold supply lines are connected to the pertaining sides. PERFECTION IS OUR TRADITION™ pg. 5...
- Page 8 INSTALLATION Figure 3 Step 3A Add Teflon tape and screw the diverter adapter to the pipe ran from above the faucet valve. PERFECTION IS OUR TRADITION™ pg. 6...
- Page 9 INSTALLATION Figure 4 Step 4A The spout comes with a male thread adapter that can be used or removed depending on existing connections. Step 4B Apply Teflon tape to the pipe connections and screw the spout onto the pipe. PERFECTION IS OUR TRADITION™ pg.
- Page 10 INSTALLATION Figure 5 Figure 6 Step 5A Separate the rear anchor for the shower arm. Step 5B Place the anchor in the desired position. Step 5C Pre-drilled the holes to insert the wall anchors. Step 5C Secure the shower arm anchor with the (x2) screws supplied using a Philips screwdriver. Step 6A Install the shower arm to the anchor until it’s tighten in the upright position.
- Page 11 INSTALLATION Figure 7 Figure 8 Install the shower head & wand diverter to the diverter adapter previously installed (in Step 6A FIGURE 3). Make sure the black O-ring is inside the diverter before screwing into place. Step 6B Screw the steel braided hose to the top of the diverter knob and other end of hose to the Step 7A shower arm.
- Page 12 INSTALLATION Figure 9 Figure 10 Step 9A Remove end cap, followed by the screws and wall anchors inside. Step 9B Pre-drill holes to insert wall anchors at your desired position. Step 9C Then, install the (x2) screws provided using a Philips screwdriver. Step 10A Connect the longer hose to the right side of the diverter and other end to the shower wand.
- Page 13 INSTALLATION Figure 11 Figure 12 Step 11A Slide the cover plate over faucet valve until it sits up against the finished wall. Step 11B Apply a bead of silicone all the way around the plate to properly seal. Step 12A Remove small cap to access set screw.
- Page 14 INSTALLATION Figure 13 Figure 14 Step 13A Remove small cap located at the bottom side of the faucet handle to access the set screw. Step 13B Slide knob into place and tighten set screw to secure. Step 13C Insert the cap to hide set screw. Step 14A Finally, install the shower head onto the shower arm by screwing it clockwise.
-
Page 15: Care & Maintenance
DO NOT ALLOW THE CLEANER TO SOAK. Following these simple principles will ensure you ANZZI™ product will remain as lustrous and stun- ning as the day it was first received. ENJOY! Sincerely, La Familia ANZZI™... -
Page 16: Warranty
ANZZI™ products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any product or parts that proves defective. - Page 17 Email..................I have read the ANZZI™ Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done strictly in accordance with instructions and guidelines contained in the ANZZI™ owner’s manual and installation guide.
- Page 18 Perfection is our Tradition™...
