INSTALLATION
9
[09]
10
shower arm
locking
handle
[13]
[12]
[01]
PG. 6
shower
arm
washer
[14]
locking
handle
[01]
washer
[05]
flow
restrictor

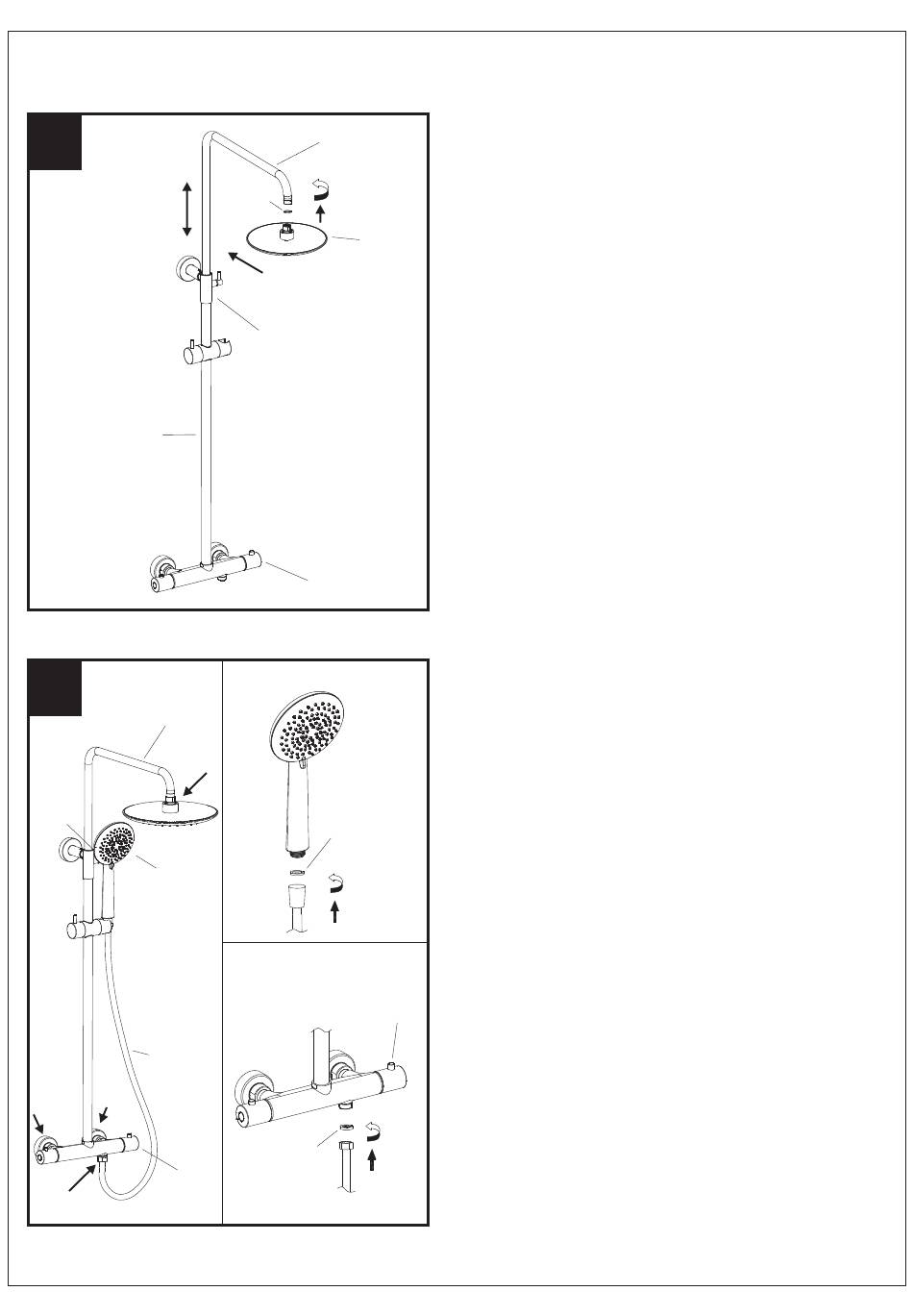

STEP 9:
a. Install the Shower Head [14] with
washer and secure.
b. Loose the locking handle by turning
it anti-clockwise. Then adjust the
height of Shower Head [14] to about
12.6"[320mm] above the head to get
the best shower experience.
c. Hold the shower arm still and turn
the locking handle clockwise to
secure the shower arm.
STEP 10:
a. Install and secure the Hand Shower
[13] and Shower Hose [12] to the
faucet as the figure shows and secure.
Note:
Make sure the washer and the
flow restrictor are in position.
b. Turn on hot and cold water supplies
and check all connections at arrows
for leaks. Retighten if necessary,
but do not overtighten.
c. Turn the Diverter Handle [05] to
Hand Shower [13] and Shower Head
[14] fuction to check for leakage and
flow effect. If the shower arm moves
upward when the shower head flows,
turn off the Faucet [01] and tighten
the locking handle to secure.
