INSTALLATION

1
Hot
1/2"
35.5"-39.4"

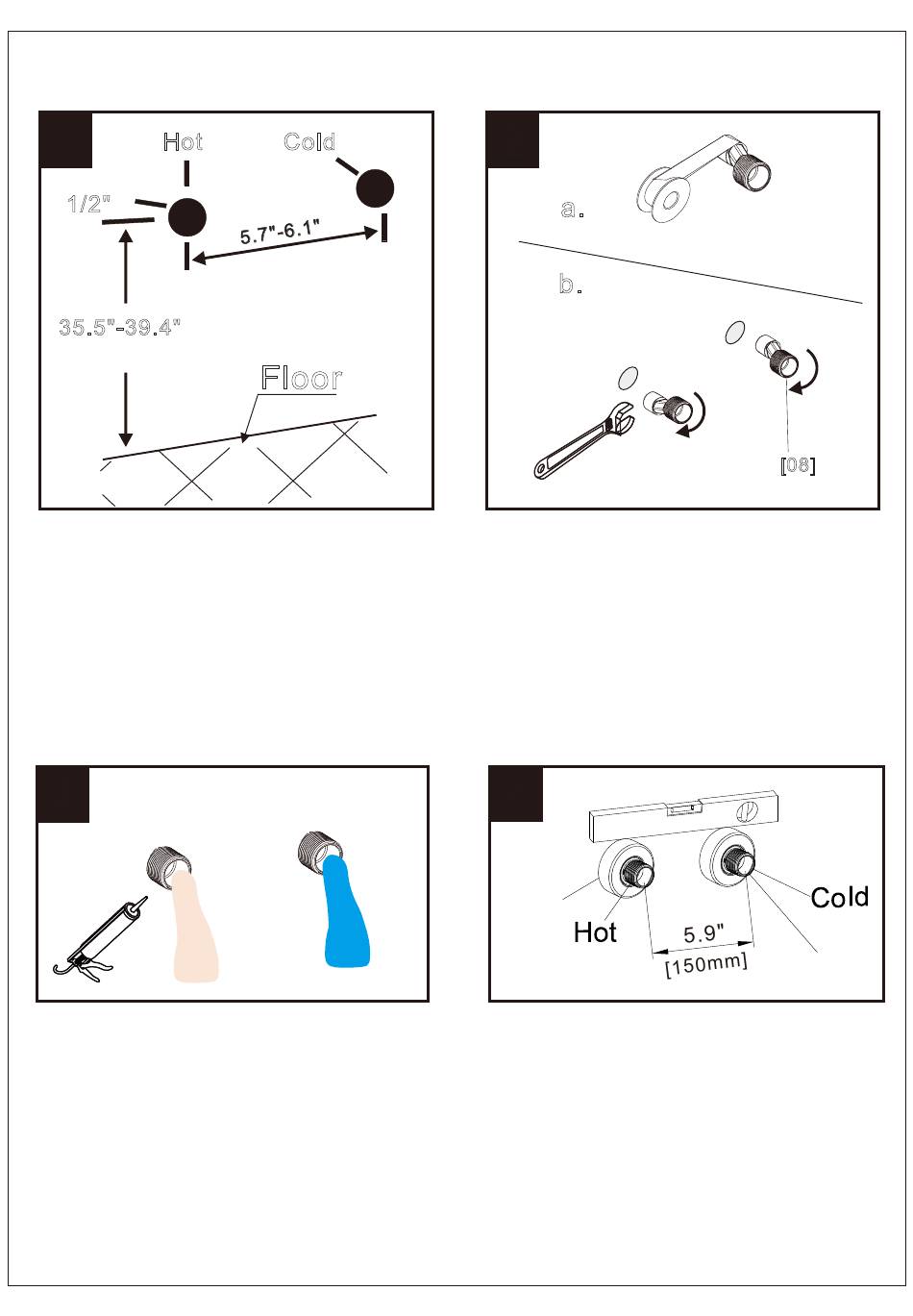

STEP 1:
Ensure that the center distance of
outlets are between 5.7" - 6.1".
The Hot inlet is on the Left,
and t h e Cold inlet is on the Right.
The he ight of the inlets from the floor
is about 35.5" - 39.4". Ensure each
inlet with the same height.
3
STEP 3:
Turn on the valves and flush the hot
and cold supplies thoroughly for 30s
to 1 minute. Then turn off the valve
and seal the wall around the nipples
with waterproof sealant.
Cold
Floor
2
a.
b.
STEP 2:
a. Wrap the smaller point of
Nipples [08] with water sealing tape.
b. Install the Nipples [08] and secure
by wrench.
4
[07]
STEP 4:
Install the Covers [07] and place the
leveler on the Covers [07] and make
sure the leveler is in level condition.
Then place the leveler on the shanks.
Make sure the leveler is in level
condition and the distance between
the shanks is 5.9".
[08]
shank
PG. 3
