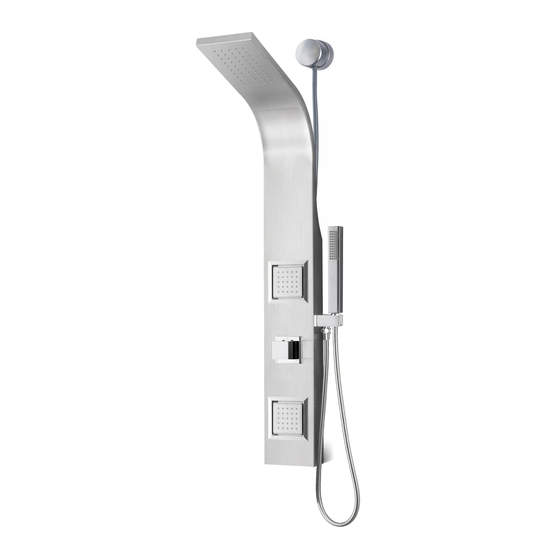

- Page 1 ITEM: SP-AZ078 ANZZI AURA SHOWER PANEL INSTALL & OPERATION MANUAL V2.0 DON’T WAIT! REGISTER NOW! Register your product within 90 days to ensure your product is recognized as an purchase and is for warranty coverage. in the registry card (Pg. 2) or register...
-
Page 2: Product Registration
I have read the Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done strictly in accordance with instructions and guidelines contained in the owner’s manual and installation guide. Signature____________________________________________________________Date ______________________________________________ 305-614-4070 Have questions? Call us at or visit us at www.ANZZI.com... -
Page 3: Parts List
PARTS LIST Component no. Component Material body head shower A. Shower Head EPDM B. Diverter screw 1 C. Body Jets clip D. Hand Shower pvc hose knob plate cover knob zinc braided hose long- short connector brass base body jets flow restricter various function cartridge... -
Page 4: Before You Start
1. Prior to installation. please make sure your package is intact. Look over the product and contact your dealer or ANZZI if you find damaged sections. 2. In order to install this shower panel, simple understanding of plumbing techniques will be necessary. - Page 5 Mounting the Brackets of the Shower Panel -It is recommended that the shower panel be mounted at a height that will make the unit accessible to people with varying heights. Establish the percise height and position of the unit on the wall.
- Page 6 1-3 Mark the postion of each screw holes of both mounting brackets(2) on the wall using a pencil. 1-4 The recommended height of water is 5-16.5 inches. 305-614-4070 Have questions? Call us at or visit us at www.ANZZI.com pg. 4...
- Page 7 2-3 Insert the wall anchors into the pre-drilled holes as shown in Figure B. 2-4 Place the shower panel brackets aligned with the drilled holes and secure the brackets by tightening the screws. 305-614-4070 Have questions? Call us at or visit us at www.ANZZI.com pg. 5...
- Page 8 Once the shower panel is fully installed and hung on the bracket, you can install the hand shower hose to the holder connection. Connecting the hand shower to the hose, as shown. 305-614-4070 Have questions? Call us at or visit us at www.ANZZI.com pg. 6...
-
Page 9: Installation
Remove the existing shower head and shower arm assembly. Hold the plastic base against the wall.Wrap plumber tape around "A"position of adapter threads. Connect the adapter to the existing outlet. 305-614-4070 Have questions? Call us at or visit us at www.ANZZI.com pg. 7... - Page 10 Slide the shower panel down until it rests on the mounting brackets you installed. The shower panel must be seated onto the mounting brackets by pulling down the shower panel. 305-614-4070 Have questions? Call us at or visit us at www.ANZZI.com pg. 8...
- Page 11 DO NOT ALLOW THE CLEANER TO SOAK. ® Following these simple principles will ensure you ANZZI product will remain as lustrous and stun- ning as the day it was first received. ENJOY!
