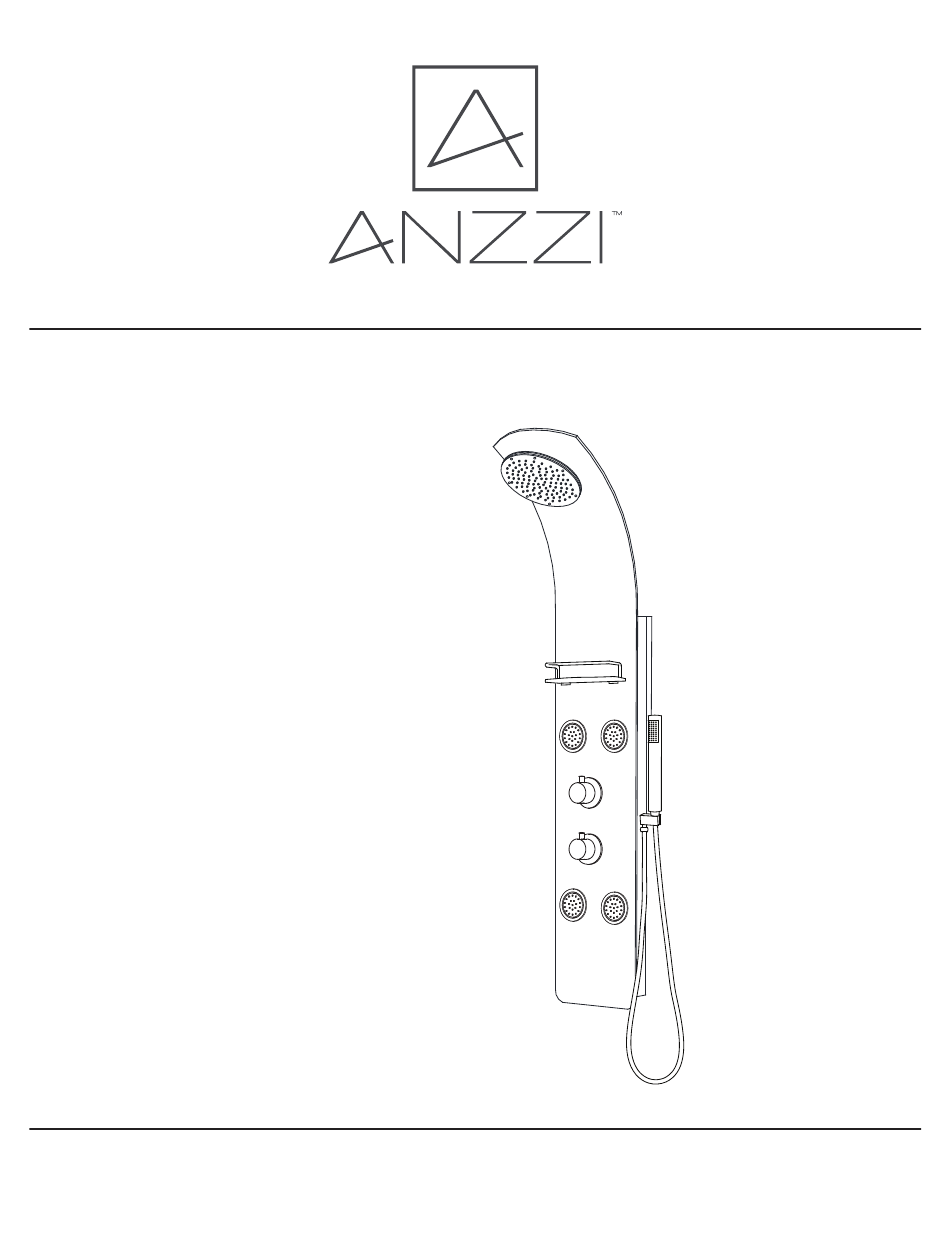

- Page 1 LLANO & Colossal Series INSTALL GUIDE Model# SP-AZ047 SP-AZ8095 PERFECTION IS OUR TRADITION™ v2.0516...
-
Page 2: Table Of Contents
Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. -
Page 3: Parts List
PARTS LIST Component no. Component Material clip connector brass body tempered glass washer silicon head shower glass clamp brass Shelf glass body jets knob zinc knob plate brass function cartridge handle zinc handle plate cover brass thermostatic cartidge faucet body 1 brass backside body 1. -
Page 4: Before You Start
Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 1-844-44-ANZZI. PERFECTION IS OUR TRADITION™ pg. 2... -
Page 5: Spec Drawing
SPEC DRAWING 13.98 Perfection is our Tradition™ LLANO Series SP-AZ047 Material: Tempered Glass Finish: Black Tempered Glass Handles: 2 Jets: Shower: Ø7.677” Sprayer: 60” reach Weight: 28.38 lbs Height: 55.12” Supply: 1/2” connections 9.84 Flow: 2.5 gpm *when reducer is removed Features Heavy Rain™... -
Page 6: Installation
INSTALLATION (SETUP) Figure A IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Step A Drill the two holes for the top bracket 1” apart at the desired height. Step A.2 Drill the two holes for the bottom bracket 1”... - Page 7 INSTALLATION (SETUP) Figure C Figure B Step B Insert the wall anchors into the pre-drilled holes as shown in Figure B. Step C Place the shower panel brackets aligned with the drilled holes and using a Philips screw- driver tighten the screws to secure the brackets. PERFECTION IS OUR TRADITION™...
- Page 8 INSTALLATION (HANDSHOWER & SHELF) Figure 1 Figure 2 Step 1 Attach the shelf to the glass clamp, using the screw to fix it. Step 2A Insert the hand shower holder through the pre-drilled hole on the shower panel. Step 2B Install the water supply hose for the hand shower onto the holder, as shown.
- Page 9 INSTALLATION (HANDSHOWER) Figure 2 1 Setting 3 Setting Hand Hand Shower Shower Step 2A Finally, install the hand shower to the hose, as shown. PERFECTION IS OUR TRADITION™ pg. 7...
- Page 10 INSTALLATION (SHOWER HEAD) Figure 3 Step 3A Install the shower head to the upper threader connectin on the shower panel as shown. PERFECTION IS OUR TRADITION™ pg. 8...
- Page 11 INSTALLATION (WALL MOUNTING) Figure 4 Cold Screw the cold and hot water hoese from the shower panel to the supply lines in the wall. Step 4A Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4. Step 4B PERFECTION IS OUR TRADITION™...
- Page 12 DISASSEMBLE (GPM REDUCER) Reducer NOTE: Due to water conservation laws, this unit is equipped with a GPM reducer. If your local code doesn’t have a restriction requirement, you can use the following steps to remove the reducer. Setp 5A Loosen the fastening nut of the faucet body 1 unscrew the hexagon nut from the faucet body 2.
-
Page 13: Care & Maintenance
DO NOT ALLOW THE CLEANER TO SOAK. Following these simple principles will ensure you ANZZI™ product will remain as lustrous and stun- ning as the day it was first received. ENJOY! Sincerely, La Familia ANZZI™... -
Page 14: Warranty
ANZZI™ products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty. ANZZI™ products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE* any product or parts that proves defective. - Page 15 Email..................I have read the ANZZI™ Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done strictly in accordance with instructions and guidelines contained in the ANZZI™ owner’s manual and installation guide.
- Page 16 Perfection is our Tradition™...
