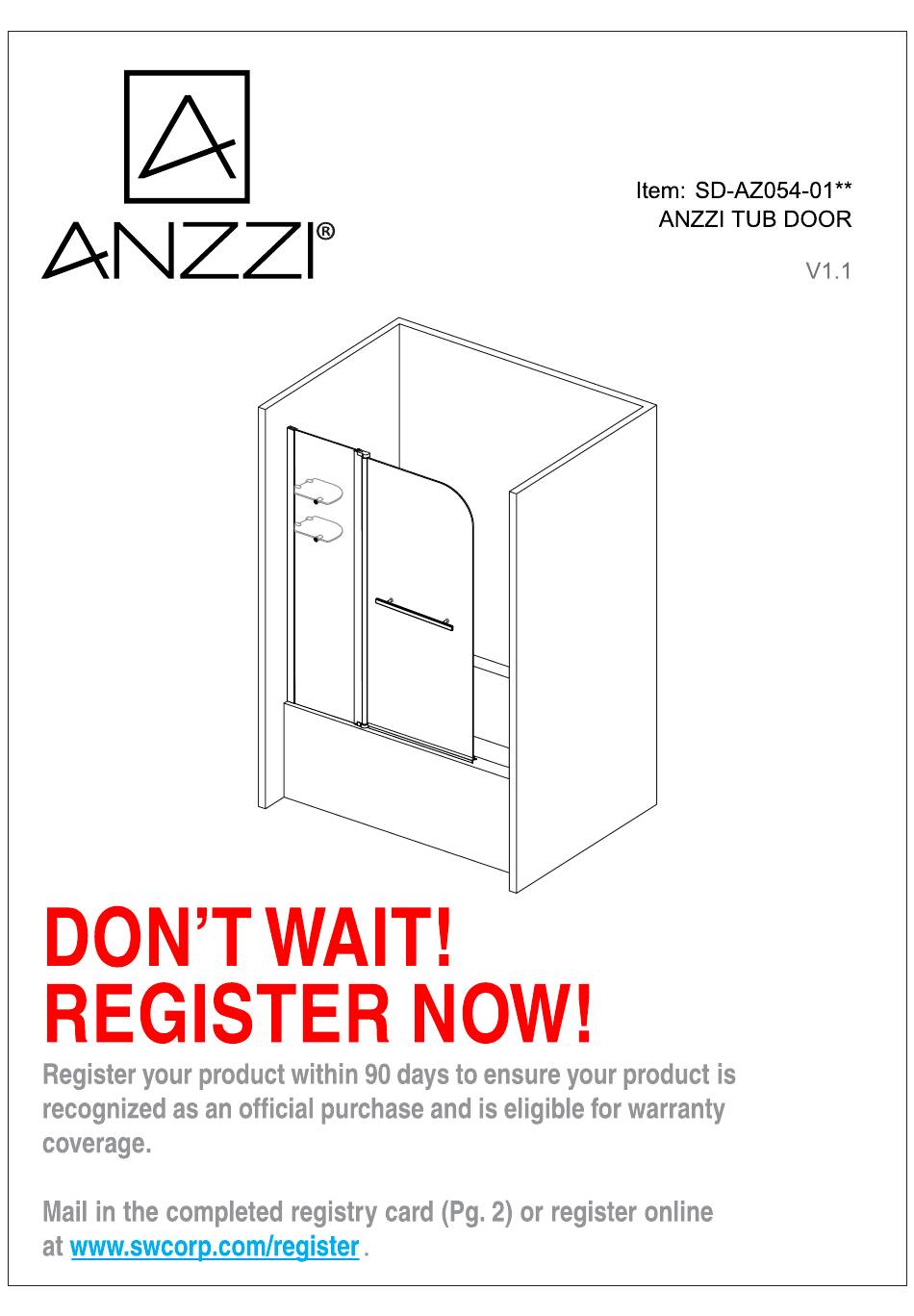

- Page 1 INSTALLATION & OPERATION MANUAL V1.1 – This version supersedes all previous versions as of 3/31/2022...
- Page 3 Pleasechecktheproduct for damage and missing parts immediately upon delivery. Damage reported later will not be covered by our warranty. Please handle the product with care. Avoid any impact to the sides and edges of the glass. is being (if required by local code) plumber for all plumbing installations. Before beginning installation, make sure all surfaces are level, solid and will support the total weight of the unit.
- Page 4 Surface of the tub deck must be level for better sealing. This product is heavy and may require two people to install. Phillips Level Tape Drill 1/8'' 1/4'' Screwdriver Measure (3mm) (6mm) Drill Bit Drill Bit Use cut-resistant, non-slip gloves to reduce the risk of personal injury and to hold the glass firmly.
- Page 5 [06] x2 [01] x1 [02] x1 [03] x1 [04] x1 [05] x1 [07] x1 [10] x3 [11] x7 (ST4x35mm [12] x3 (ST4x8mm [08] x1 [09] x1 [1-3/8"]) [5/16"]) [14] x1 (1.5mm) [13] x3 [15] x4 [16] x2...
- Page 6 Part Qty. Part Qty. Description Description [01] Wall Post [09] Bottom Shaft Seat [02] Side Water Sealing Strip [10] Anchors [03] Water Sealing Strip [11] Screws ST4X35 [04] [12] Fixed Panel Screws ST4X8 [05] [13] Door Panel Screw Caps [06] [14] Glass shelves 1.5mm Allen Key...
- Page 8 1. This shower door must be mounted to a stud. Minimum tub desk space is required. Using a stud finder, ensure the wall intended to hold the door has a stud at the installation point. If there is no stud in the shown area, we recommend employing a qualified contractor to install one.
- Page 9 Step 2 1.Mark the drill hole locations on the wall using the predrilled holes in the Wall Post [01] (Fig 2.1). 2. Drill a 1/4" hole at each location and insert the Anchors [10] (Fig 2.2, Fig 2.3). 3. Apply silicone sealant along the back of the Wall Post [01] (Fig 2.4). 4.
- Page 10 Slide the Side Water Sealing Strip [02] to the groove of Fixed Panel [04]. (Fig 3) Note: Make sure the flange of Side Water Sealing Strip [02] points inside after the Fixed Panel [04] is secured to Wall Post [01]. (Fig 3.1) Fig 3 Attach Door Panel [05] to the Fixed Panel [04] and secure by Top Shaft Seat [08] and Bottom...
- Page 11 1. Attach the Water Sealing Strip [03] to the bottom edge of the Door Panel [05] (Fig 5.1). The flange of Water Sealing Strip [03] should face the wall. Fig 5...
- Page 12 1. Disassemble the Bracket Set [16] and install to the hole the Fixed Panel [04]. 2. Install the button and o-ring to the outside of outer surface. Then install thesleeve, o-ring, anchor, screw to the inner surface. (Fig 6.1) 3. Adjust groove of the Bracket Set [16] to the horizontal position and secure by tightening the screw.
- Page 13 Step 7 Install Brackets [15] to the Glass Shelves [06] according to the measurements in Fig 7. Secure the Brackets [15] by tightening the screws. Do Not over tighten. Fig 7 Step 8 Install Glass Shelves [06] with Brackets [15] to the Bracket Set [16] and wall.
- Page 14 Step 9 1. Place the Brackets [15] on the marks and mark the holes on the wall. (Fig 9.1) 2. Drill a 1/4" hole at each location. (Fig 9.2) 3. Insert the Wall Plugs. (Fig 9.3) 4. Mount the Brackets [15] to the wall using the flat head screws . NOTE: The padded set screw of the Brackets [15] should be facing down.
- Page 15 Step 10 1. Slide the Glass Shelves [06] into the Brackets [15] and tighten the set screws to secure. Fig 10...
- Page 16 Step 11 1. Disassemble gaskets by removing handle knobs (Fig 11.1). 2. Install handle, washers and handle knobs to the Door Panel [05]. Tighten handle knob with allen key to secure (Fig 11.2). IMPORTANT: Ensure handle gaskets and washers are placed on each side of glass. handle knob Allen Key gasket...
-
Page 17: Care And Maintenance
Never use an abrasive sponge or cloth, steel wool, or wire brush, which may permanently scratch the surfaces. NOTE: Regularly inspect the glass and all hardware for misalignment, proper attachment, and damage. Contact ANZZI with any questions or concerns.
