J/FE-CF-03
Options Accessories (sold separately)
Part Number Description
WMBS Optional Wall Mount Brackets
Length: 3.2 in. (81 mm), Fits converter length: 3.9 in. (99 mm)
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Wide-Input;
Output: 12.6VDC, 1.0 A
SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-Back Wide-Input;
Output: 12.6VDC, 1.0 A

Installation

Installing the Cable

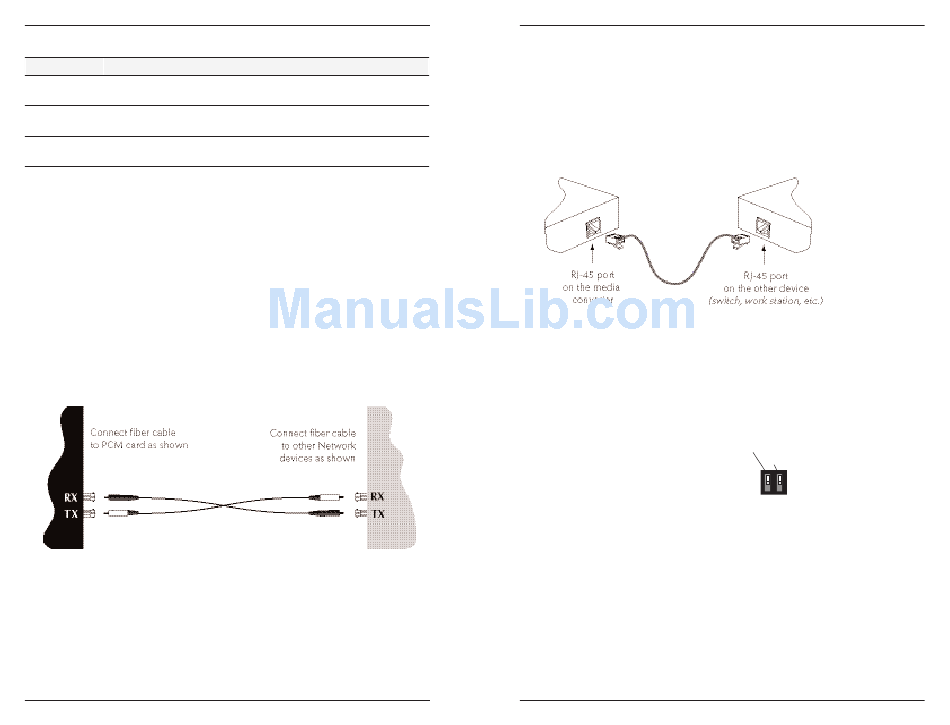

Fiber
1. Locate or build 100Base-FX compliant fiber cable with male, two-stranded TX
to RX connectors installed at both ends.
2. Connect the fiber cables to J/FE-CF-03 media converter as described:
• Connect the male TX cable connector the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other device (another media converter, hub,
etc.) as described:
• Connect the male TX cable connector the female RX port.
• Connect the male RX cable connector to the female TX port.
2
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Installation -- Continued
Copper
1. Locate or build 100Base-TX compliant copper cables with male, RJ-45
connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the
J/FE-CF-03 media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on
the other device (switch, workstation, etc.).
Set the Two-Position Switch
A two-position switch (located on the back of the media monverter) allows
selection of Auto-Negotiation and Full- or Half-Duplex. Use a small, flat-blade
screwdriver (or a similar device) to set the switch according to the site requirements
see the drawing below.
Auto-Negotiation:
UP Enable Auto-Negotiation
DOWN Disable Auto-Negotiation
Full/Half Duplex:
UP Full Duplex -- Advertises 100 Mb/s full-duplex only during Auto-
Negotiation.
DOWN Half Duplex -- Used primarily when connecting to a hub. Operates at
100 Mb/s in duplex mode of the attached device.
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
Auto-Negotiation - UP=Enable
Full/Half Duplex - UP=Full
