INSTALLATION
Installing the Cable
FIBER
1.
Locate or build fiber cable with male, two-stranded TX to RX connectors
installed at both ends.
2.
Connect the fiber cables to F-SM-MM-04 Media Converter as described:
•
Connect the male TX cable connector the female TX port.
•
Connect the male RX cable connector to the female RX port.
3.
Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
•
Connect the male TX cable connector the female RX port.
•
Connect the male RX cable connector to the female TX port.

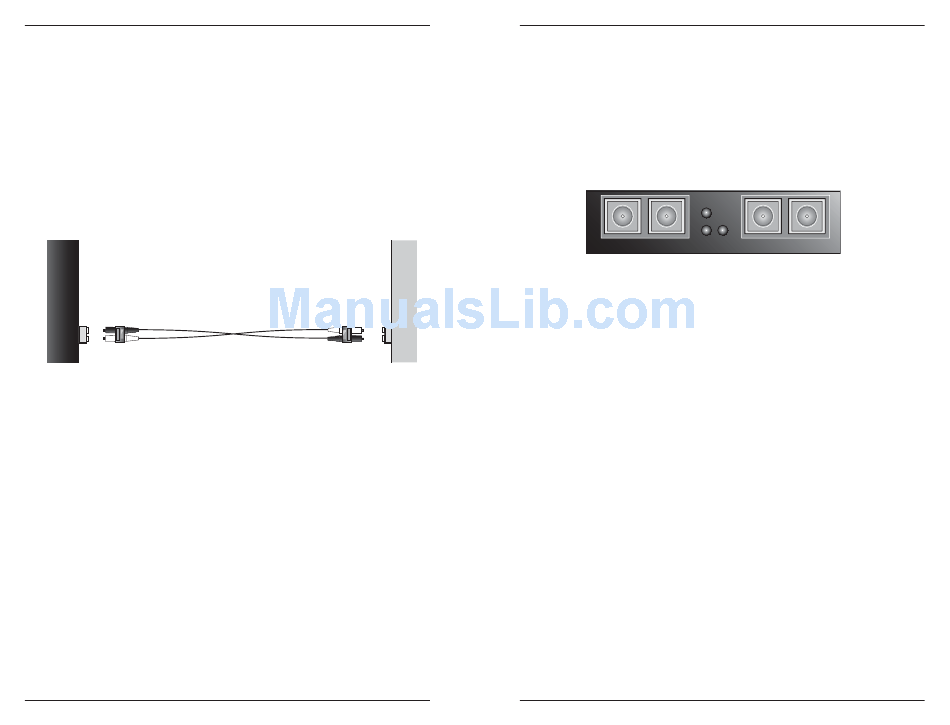

Connect the fiber cable
to the Media Converter
as shown.
RX
TX
Power the Media Converter
AC
1.
Install the power adapter cord to the back of the Media Converter.
2.
Connect the power adapter plug to AC power.
3.
Verify that the Media Converter is powered by observing the illuminated
LED power indicator light.
DC
Consult the User's Guide for the Transition Networks SPS1872-xx DC External
Power Suppy for powering the Media Converter.
2
Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)
Connect the fiber cable
to the other device
(media converter,
hub, etc.) as shown
RX
TX
OPERATION
Using Status LEDs
Use the status LEDs to monitor the Media Converter operation in the network.
Pwr
Steady LED indicates connection to external AC power.
Link (left)
Steady LED indicates multimode fiber link connection.
Link (right)
Steady LED indicates singlemode link connection.
(Port 1)
(TX)
(RX)
PWR
Link
Multimode
Full-Duplex Network
In a full-duplex network, maximum cable lengths are determined by the type
of cables that are used. See page 4 for the cable specifications for the
different F-SM-MM-04 models. (The 512-Bit Rule does not apply in a full-
duplex network.)
Half-Duplex Network (512-Bit Rule)
In a half-duplex network, the maximum cable lengths are determined by the
round trip delay limitations of each Fast Ethernet™ collision domain. (A
collision domain is the longest path between any two terminal devices, e.g. a
terminal, switch, or router.)
The 512-Bit Rule determines the maximum length of cable permitted by
calculating the round-trip delay in bit-times (BT) of a particular collision
domain. If the result is less than or equal to 512 BT, the path is good.
For more information on the 512-Bit Rule, see the white paper titled "Collision
Domains" on the Transition Networks website at:
http://www.transition.com/learning/whitepapers/colldom_wp.htm
techsupport@transition.com -- Select the "Transition Now" Link for a Live Web Chat
(Port 2)
(TX)
(RX)
Link
Singlemode
