Transition Networks FD-CD-01 User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards
ANSI X3T12 FDDI
Case dimensions
4.7" x 3.0" x 1.0"
Environment
Temperature:
Humidity
Altitude
Warranty
Lifetime
Power Supply Requirements
Replace power supply with only the equivalent input
rating (see below) and output rating (regulated 12VDC @1.5 A).
TN PN Requirement
3507 240 volts, 50 hertz
3342 230 volts, 50 hertz
3340 120 volts, 60 hertz
3346 100 volts, 50-60 hertz
3511 240 volts, 50 hertz
3537 (with power cord: 3522)
NOTE: This product also can be powered by the Transition Networks E-MCR series media
converter rack.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class B
FCC Regulations
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class B limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Copyright Restrictions
© 1997 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(119mm x 76mm x 25mm)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
South Africa
33025.B
FDDI/CDDI
FD-CD-01, FD-CD-01(SM)
USER'S GUIDE

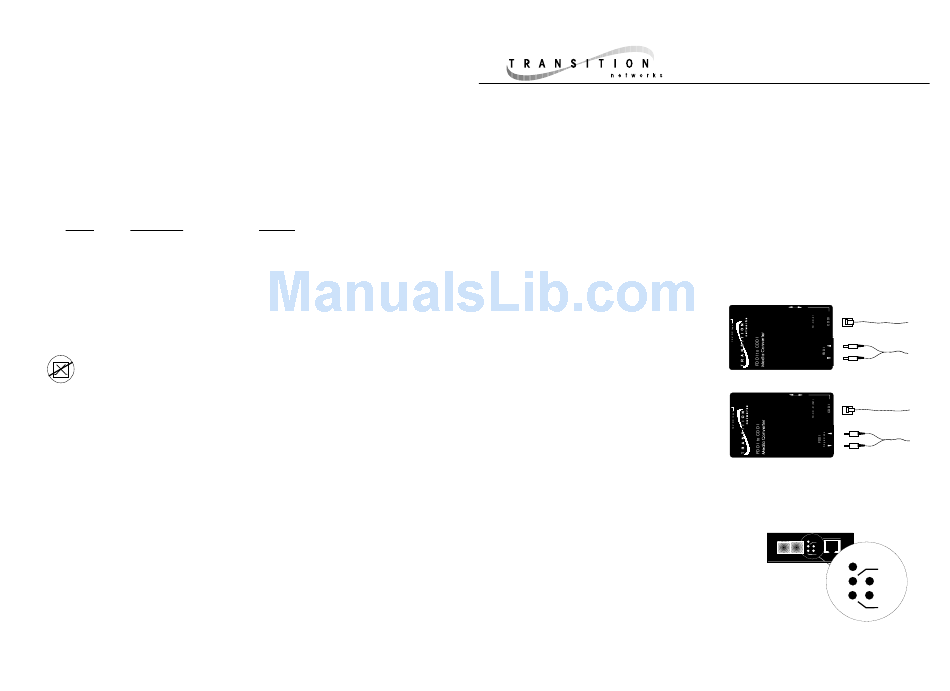

The TRANSITION Networks Ethernet™ CDDI to FDDI media converters connect CDDI
unshielded twisted pair cable to FDDI multimode OR to FDDI singlemode fiber-optic
cable. Media converter models are selected according to the fiber mode required at the
site. Both multimode fiber (FD-CD-01) and singlemode fiber (FD-CD-01(SM)) media
converters use a standard SC connector. Both media converters function in half-duplex
mode or, when connected to devices capable of full-duplex connectivity, in full-duplex
mode. An MDI/MDI-X switch allows straight-through twisted-pair cable to be used for
crossover CDDI connections.
FD-CD-01
Provides an RJ-45 twisted pair CDDI
connector and an RX (receive) and TX
(transmit) SC FDDI connector to multimode
fiber-optic cable.
FD-CD-01(SM)
Provides an RJ-45 twisted pair CDDI
connector and an RX (receive) and TX
(transmit) SC FDDI connector to singlemode
fiber-optic cable.
Status LEDs on the connector side of the media converters provide the following
information:
Power Illuminated green LED indicates connection to
external AC power.
SDF Signal Detect/Fiber: Steady green LED
indicates fiber port is connected to device.
SDC Signal Detect/Copper: Steady green LED
indicates RJ-45 port is connected to device.
RXC Receive/Copper: Flashing green LED indicates
packets are seen on RJ-45 port.
RXF Receive/Fiber: Flashing green LED indicates
packets are seen on fiber port.
NOTE: Since the FDDI/CDDI protocol passes a "token" across the entire FDDI/CDDI
ring, the RXC/RXF LEDs are continuously illuminated during normal operation.
Minneapolis, MN 55344 USA
Media Converters
MDI-X MDI
UTP
Multimode Fiber
FD-CD-01
MDI-X MDI
UTP
Singlemode Fiber
FD-CD-01(SM)
CDDI Connector
RX Power
TX
SDF
SDC
RXC
RXF
10BASE-T
UTP/STP Power
Fiber
FDDI Connector
SDF
SDC
RXC
RXF
