Transition Networks F-xM-MM-05 User Manual

Part Number Port One - Fiber-Optic
F-SM-MM-05 ST, 850 nm multimode
2 km (1.2 miles)*
F-MM-MM-05 ST, 850 nm multimode
2 km (1.2 miles)*
* Typical maximum cable distance. (Actual distance is dependent upon the physical
characteristics of the network.)
Optional Accessories (sold separately)
Part No Description
SPS-2460-SA Optional External Power Supply; 18-72VDC Stand-Alone
Output: 12.6VDC, 1.0 A
SPS-2460-CC Optional External Power Supply; 18-72VDC Piggy-back;
Output: 12.6VDC, 1.0 A
E-MCR-05 12-Slot Media Converter Rack (includes universal internal power supply)
17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBL Optional Wall Mount Brackets
Length: 4.0 in. (102 mm), Fits converter length: 4.7 in. (119 mm)
WMBV Optional Vertical Mount Bracket; Length: 5.0 in. (127 mm)
WMBD Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm)
WMBD-F Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84 mm)

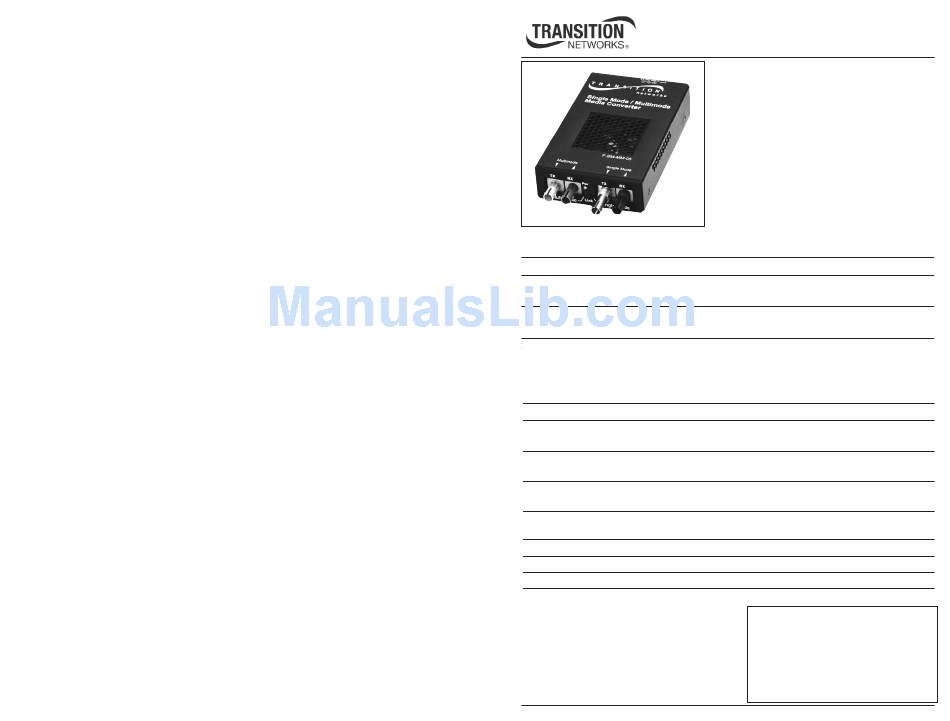

User's Guide
F-xM-MM-05
Stand-Alone Media Converter
• 10 Mb/s Ethernet
• 16 Mb/s Token Ring
• SM to MM
Transition Networks F-SM-MM-05 and the
F-MM-MM-05 Media Converters extend
Ethernet or Token Ring networks over
singlemode fiber-optic cable up to 20 km and
multimode to 2 km.
Port Two - Fiber-Optic
ST, 1310 nm singlemode
20 km (12.4 miles)*
ST, 850 nm multimode
2 km (1.2 miles)*
Installation . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . .3
Cable Specifications . . . . . . . . . . . . . .4
Technical Specifications . . . . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . . . .7
Compliance Information . . . . . . . . . .8
