Part Number
Port One - Fiber-Optic
1000Base-SX
F-SM-MM-04
SC, 850 nm multimode
220 m (721 ft)*
F-SM-MM-04(LH) SC, 850 nm multimode
220 m (721 ft)*
F-SM-MM-04(LW) SC, 850 nm multimode
220 m (721 ft)*
* Typical maximum cable distance. (Actual distance is dependent upon the
physical characteristics of the network installation.) See the Cable Specifications
on page 4 for more information on the cable length.
Optional Accessories (sold separately)
Part Number Description
E-MCR-03
12-Slot Media Converter Rack (includes universal internal power
supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBL
Optional Wall Mount Brackets
Length: 4.0 in. (102 mm), Fits converter length: 4.7 in. (109 mm)
SPS-1872-SA
Optional External Power Supply; 18-72VDC Stand-Alone Wide-
Input; Output: 12.6VDC, 1.0 A
SPS-1872-CC Optional External Power Supply; 18-72VDC Wide-Input;
Output: 12.6VDC, 1.0 A

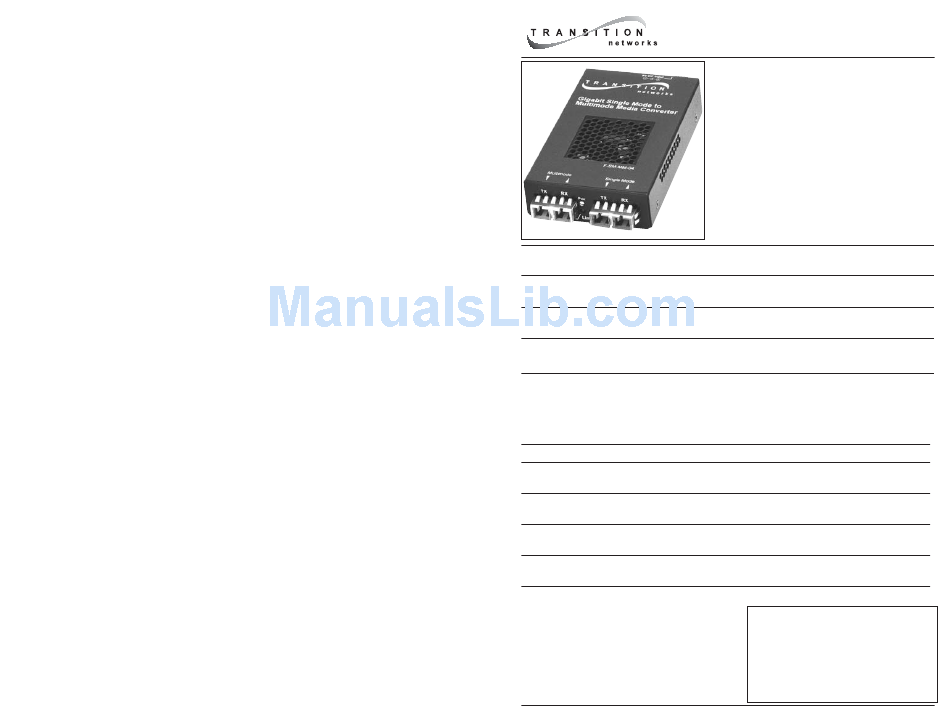

USER'S GUIDE
F-SM-MM-04
Stand-Alone Media Converter
• Gigabit Ethernet™
• Singlemode to Multimode
• 1000Base-SX to 1000Base-LX

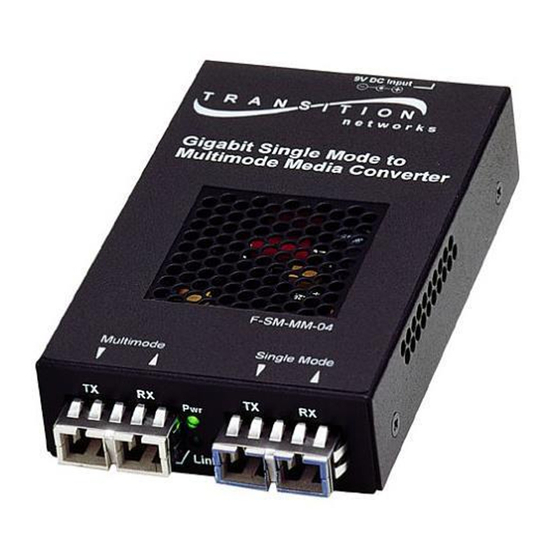

Transition Networks F-SM-MM-04 Gigabit
Ethernet™ Media Converter connects
singlemode to multimode fiber-optic cable.
The F-SM-MM-04 Media Converters
function in either full-duplex or half-duplex
mode.
Port Two - Fiber-Optic
1000Base-LX
SC, 1300 nm singlemode
10 km (6.2 miles)*
SC ,1310 nm singlemode
25 km (15.5 miles)*
SC, 1550 nm singlemode
65 km (40.4 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .3
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Fault Isolation and Correction . . .6
Contact Us . . . . . . . . . . . . . . . . . .7
Compliance Information . . . . . . . .8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks F-SM-MM-04(LH)
Summary of Contents for Transition Networks F-SM-MM-04(LH)
- Page 1 • Singlemode to Multimode • 1000Base-SX to 1000Base-LX Transition Networks F-SM-MM-04 Gigabit Ethernet™ Media Converter connects singlemode to multimode fiber-optic cable. The F-SM-MM-04 Media Converters function in either full-duplex or half-duplex mode. Part Number Port One - Fiber-Optic Port Two - Fiber-Optic...
-
Page 2: Installation
F-SM-MM-04 INSTALLATION Installing the Cable FIBER Locate or build fiber cable with male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to F-SM-MM-04 Media Converter as described: • Connect the male TX cable connector the female TX port. •... -
Page 3: Cable Specifications
F-SM-MM-04 CABLE SPECIFICATIONS The physical characteristics must meet or exceed IEEE 802.3™ specifications. <10 -12 Bit Error Rate: Multimode - 1000Base-SX 850 nm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 50/125 µm Fiber Optic Transmitter Power: min: -10.0 dBm Fiber Optic Receiver Sensitivity: min: -17.0 dBm Link Budget:... -
Page 4: Fault Isolation And Correction
DECLARATION OF CONFORMITY Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: F-SM-MM-04 Series Media Converters Part Number(s): F-SM-MM-04, F-SM-MM-04(LH), F-SM-MM-04(LW) Regulation: EMC Directive 89/336/EEC Purpose: To declare that the F-SM-MM-04 to which this declaration refers is in conformity with the following standards. -
Page 5: Compliance Information
COMPLIANCE INFORMATION UL Listed C-UL Listed (Canada) CISPR22/EN55022 Class A CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
