Packages, barrels, building blocks, etc. can be
strapped horizontally with this strapping machine.
Strapping can be divided into five main functions:
– plastic strap fed through strap guides
– strapping head driven to package
– plastic strap retracted and tensioned
– plastic strap cut off and welded
– strapping head driven into initial position
d

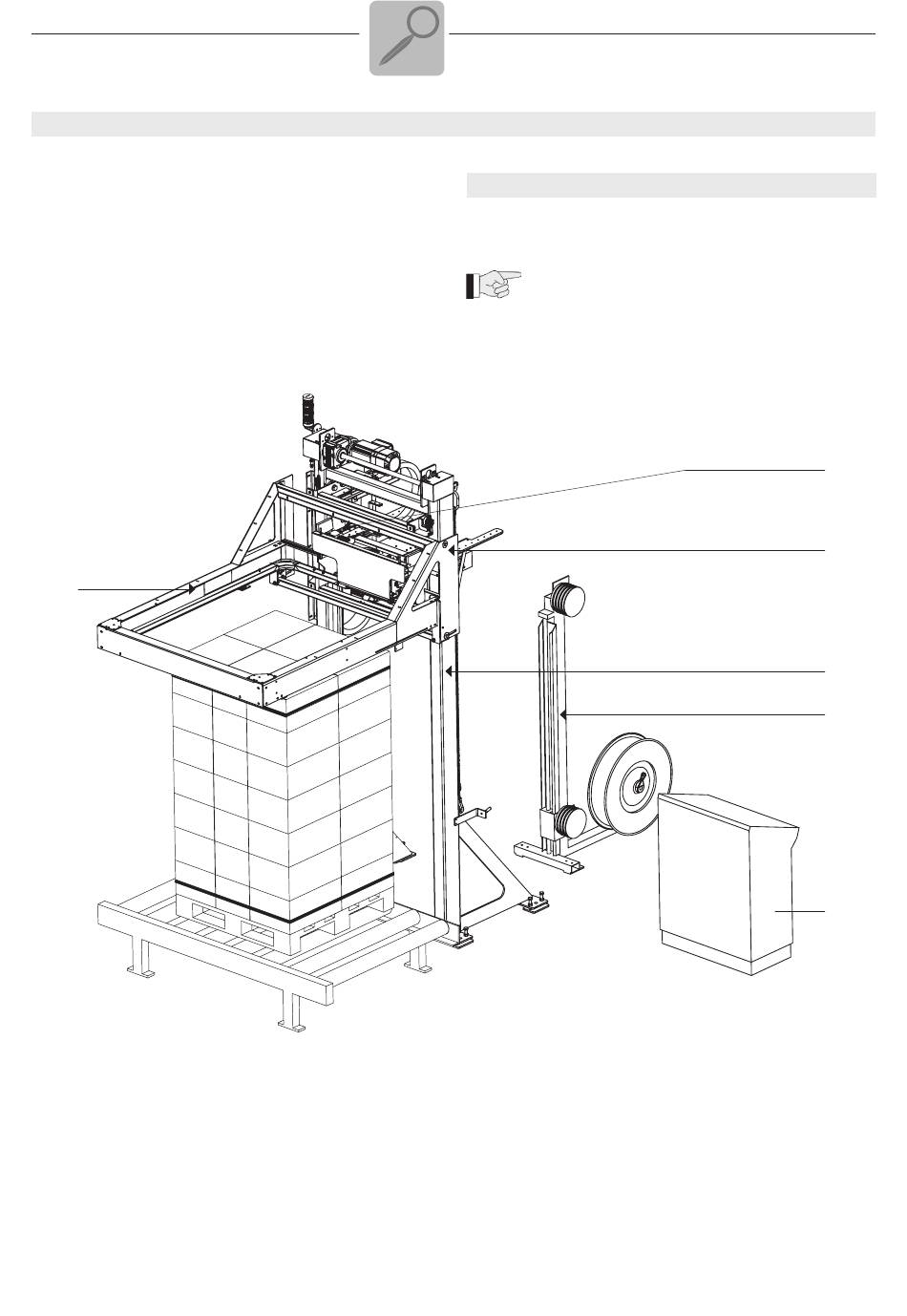

Fig. 1 Main assemblies
a Strapping head
b Carriage
c Machine stand
d Strap guide frame
e Control desk
f Dispenser
8

DESCRIPTION

The machine consists of the following main assemblies
(see Fig. 1).
The description refers to a generally autho-
ritative drawing, showing an example of such
a machine. The layout of the assemblies not perma-
nently fixed to the machine can vary.

4.1 DESIGN

a
b
c
f
e
