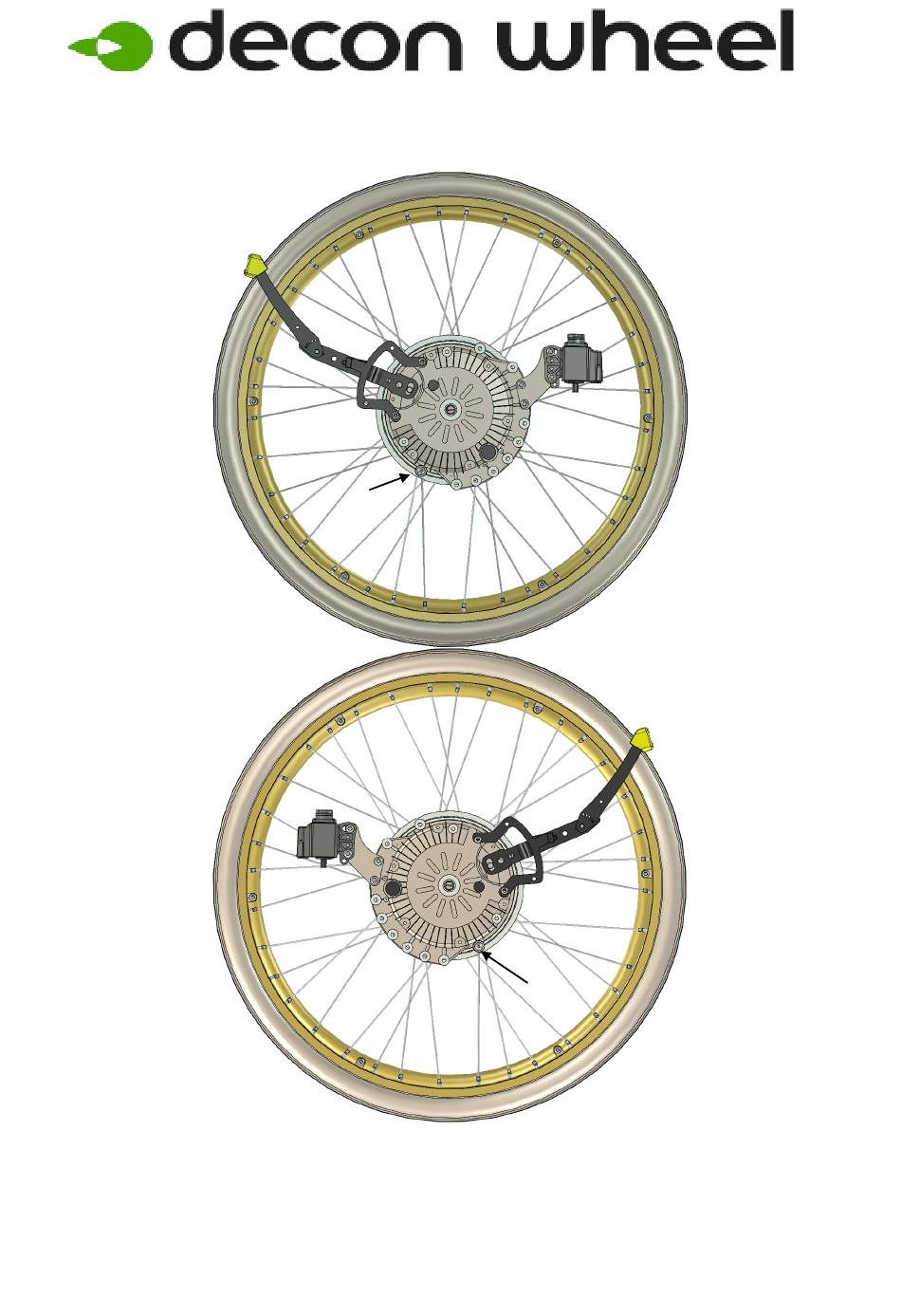

- Page 1 Assembly instructions for IBIS XA MED3113 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin and the battery connector. Check that anti tip devices are removed on the E-Drive. Use the anti tip devices on the chair.
- Page 2 3. Assemble the plate (right side) according to picture. The hubsleever is to be attached with the rear wheel attachments on the wheelchair. Parts pair mountingset: Item No. Part Number Description HW084 Hubsleever XSM18BR Plain washer M18 XSM18M Nut M18 x1 100 400 008 Spacer XSM8X35...
- Page 3 MED1359 for IBIS XA 2013- Item No. Part Number Description MED1515 Bracket eDrive IBIS XOC-48160-B0 Upper holder assembly 2 XSM6X25 Screw Round M6 x 25 2019-06-28...
- Page 4 Attendant control for IBIS 2013- MED1202 Item No. Part Number Description MED1200 Assistant controller 91312-06050 Screw Socket M6 x 50 92902-06200 Washer Plain M6 XA2-2612E-00 Clamp XOD-2612K-00 Clamp2 2019-06-28...
