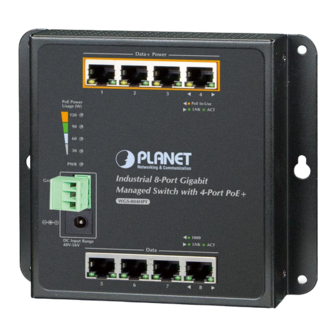

Industrial wall-mount managed gigabit ethernet switch
Hide thumbs
Also See for WGS-804HPT:
- Quick installation manual (16 pages) ,
- User manual (373 pages) ,
- User manual (359 pages)
Related Manuals for Planet WGS-804HPT
Summary of Contents for Planet WGS-804HPT
- Page 1 Industrial Wall-mount Managed Gigabit Ethernet Switch WGS-804HPT/WGS-4215-8T WGS-4215-8T2S/WGS-4215-8P2S/WGS-4215-16P2S Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ................. 3 2. Requirements ..................5 3. Wiring the Power Inputs ............... 6 3.1 Terminal Block Connector Pinout ............. 7 3.2 DC Power Jack ................7 4. Hardware Installation ................8 4.1 Wall-mount Installation ..............8 4.2 Magnet Installation ................ -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET Industrial Wall-mount Managed Gigabit Switch, WGS-804HPT or WGS-4215 series. The table below shows the models with the number of ports: 10/100/1000T 100/1000 SFP Fiber Model Name 802.3at PoE Ports Copper Ports Optic Interface WGS-4215-8T... - Page 4 Open the box of the Wall-mount Managed Switch and carefully unpack it. The box should contain the following items: The Wall-mount Managed Quick Installation DIN-rail Kit x 1 set Switch x 1 Guide Sheet x 1 pc (Vary on the model) 3-pin Terminal Block Wall-mounted Kit x 1 set Magnet Kit x 1 set...
-
Page 5: Requirements
2. Requirements z Workstations running Windows XP/2003/Vista/7/8/2008/10/11, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP proto- cols. z Workstations are installed with Ethernet NIC (Network Interface Card). z Ethernet Port Connection Network cables -- Use standard network (UTP) cables with RJ45 connec- tors. -
Page 6: Wiring The Power Inputs
Range 3-pin Terminal Block DC Jack Model WGS-4215-8T 12~48V DC, 24V AC 12~48V DC, 24V AC WGS-4215-8T2S 12~48V DC, 24V AC 12~48V DC WGS-804HPT 48~54V DC 48~54V DC WGS-4215-8P2S 48~54V DC 48~54V DC WGS-4215-16P2S 48~54V DC 48~54V DC Maximum power requirements also rely on the real site applica- tion. -
Page 7: Terminal Block Connector Pinout
2. The device must be grounded. 3.2 DC Power Jack The WGS-804HPT/WGS-4215 PoE models requires DC 48V~54V power input, and the WGS-4215-8T/WGS-4215-8T2S requires DC 12~48V power input. Should you have the issue of power connection, please contact your local sales representative. -
Page 8: Hardware Installation
4.1 Wall-mount Installation To install the Wall-mount Managed Switch on the wall, simply follow the following steps: Step 1: Drive four 8mm diameter holes into the wall horizontally with the distance between the 2 holes is 133mm (WGS-804HPT/ WGS-4215-8T), 163mm (WGS-4215-8T2S/WGS-4215-8P2S) 230mm (WGS-4215-16P2S) Refer to the table below. -
Page 9: Magnet Installation
4.2 Magnet Installation To install the Wall-mount Managed Switch on a magnetic surface, simply follow the following diagram: 4.2.1 Magnet Installation of WGS-4215-16P2S There are six holes on the unit, using six round magnets to install. Please refer to the following. Step 1: Turn the switch to the back and place the six round magnets with holes on the back of the switch where the holes are. - Page 10 Step 2: Turn the switch to front and push the plastic bolts into the holes to secure the magnets. Step 3: One last round magnet should be fixed in the middle of the switch. Step 4: Now the you can place the switch on to any magnetic surface. As the magnetic mounting is not securely fixed, be aware that the switch will not fall or break due to vibration when installing the switch.
-
Page 11: Din-Rail Mounting
4.3 DIN-rail Mounting The DIN-rail kit is included in the package for wall mounting. Refer to the following figures to screw the DIN-rail on the Wall-mount Managed Switch. To hang up the Wall-mount Managed Switch, follow the steps below: Step 1: Screw the DIN-rail on the Wall-mount Managed Switch. Step 2: Lightly insert the DIN-rail into the track. - Page 12 Step 3: Check whether the DIN-rail is tightly on the track. D a t P o w P o E P o w U s a g e (W 1 2 0 L N K A C T P o E I n -U 8 - P o r t G...
-
Page 13: Web Login
5. Web Login 5.1 Starting Web Management The following shows how to start up the Web Management of the Wall- mount Managed Switch. Note the Wall-mount Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. - Page 14 The login screen in Figure 5-2 appears. Default IP Address: 192.168.0.100 Default Username: admin Default Password: admin Figure 5-2: Web Login Screen 3. After entering the password, the main screen appears as Figure 5-3 shows. The following web screen is based on the WGS-4215-8T2S. The display of the WGS-4215-8T2S is the same as those of WGS-804HPT WGS-4215-8T/WGS-4215-8P2S/WGS- 4215-16P2S.
- Page 15 Figure 5-3: Web Main Screen of Wall-mount Managed Switch The Switch Menu on the top of the Web page lets you access all the commands and statistics the Industrial Managed Switch provides. The Switch Menu always contains one or more buttons, such as “System”, “Switching”, “QoS”, “Security”, “Ring”...
-
Page 16: Saving Configuration Via The Web
Figure 5-6: Switch Sub-menu Now, you can use the Web management interface to continue the Switch management. Please refer to the user’s manual for more. 5.2 Saving Configuration via the Web In the Wall-mount Managed Switch, the running configuration file stores in the RAM. In the current version, the running configuration sequence of running- config can be saved from the RAM to FLASH by “Save Configurations to FLASH” function, so that the running configuration sequence becomes the startup configuration file, which is called configuration save. - Page 17 2. Press the “Apply” button to save running configuration to start up configu- ration.
-
Page 18: Ssh Login
6. SSH Login Wall-mount Managed Switch also supports SSHv2 remote management. The switch asks for user name and password for remote login when using Telnet; please use “admin” for both username and password. Default IP address: 192.168.0.100 Username: admin Password: admin Figure 6-1: Wall-mount Managed Switch SSH Login Screen The user can now enter commands to manage the Wall-mount Managed Switch. - Page 19 Display of the Current IP Address 1. At the “#” prompt, enter “show ip”. 2. The screen displays the current IP address shown in Figure 6-2. Figure 6-2: IP Information Screen Configuration of the IP Address 3. At the “#” prompt, enter the following command and press <Enter> as shown in Figure 6-3. WGS-4215-16P2S# configure WGS-4215-16P2S(config)# ip address 192.168.1.100 mask 255.255.255.0 WGS-4215-16P2S(config)# ip default gateway 192.168.1.254...
-
Page 20: Storing The Current Switch Configuration
6.2 Storing the Current Switch Configuration At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 6-4: Saving Current Configuration Command Screen If the IP is successfully configured, the Wall-mount Managed Switch will apply the new IP address setting immediately. You can access the Web interface of the Wall-mount Managed Switch through the new IP address. -
Page 21: Recovering Back To Default Configuration
5 seconds. After the device is rebooted, you can log in the Web interface management within the same subnet of 192.168.0.xx. Reset Figure 7-1: WGS-804HPT/WGS-4215-8T Reset Button Reset Figure 7-2: WGS-4215-8T2S/WGS-4215-8P2S Reset Button 100/1000X... -
Page 22: Customer Support
8. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.
