Planet SGSW-24040 Quick Installation Manual

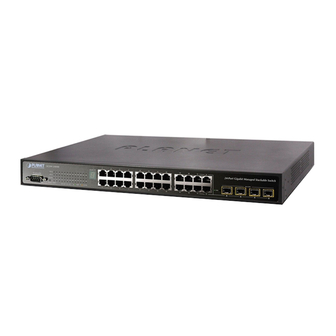

24-port 10/100/1000mbps with 4 shared sfp managed gigabit switch
Hide thumbs Also See for SGSW-24040:
Table of Contents

Advertisement

Quick Links

See also: User Manual
24-Port 10/100/1000Mbps with
4 Shared SFP Managed Gigabit Switch
WGSW-24040 / SGSW-24040
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGSW-24040 and is the answer not in the manual?

Questions and answers

Related Manuals for Planet SGSW-24040

Summary of Contents for Planet SGSW-24040

  • Page 1 24-Port 10/100/1000Mbps with 4 Shared SFP Managed Gigabit Switch WGSW-24040 / SGSW-24040 Quick Installation Guide...

  • Page 2: Table Of Contents

    1. Package Content ..3 2. Requirements ... 4 3. Terminal Setup ... 5 4. Logon to the Console ... 6 5. Configure IP address ..7 Show the current IP address ... 7 Configure IP address ..8 6. Start Web Management ..9 Login the Managed Switch ..9 While IP Address be changed or forgotten admin password – ..11 Customer Support ...12 Table of Contents...

  • Page 3: Package Content

    1. Package Content Thank you for purchasing PLANET Layer 2 Managed Switch, WGSW-24040 / WGSW-24040R / SGSW-24040 / SGSW-24040R. Terms of “Managed Switch” means the Switches mentioned titled in the cover page of this Quick installation guide, i.e. WGSW-24040 / SGSW-24040. Open the box of the Managed Switch and carefully unpack it. The box should...

  • Page 4: Requirements

    Workstations of subscribers running Windows 98/ME, NT4.0, 2000/XP, MAC OS9 ó or later, Linux, UNIX or other platform compatible with TCP/IP protocols. Workstation installed with Ethernet NIC (Network Card) ó Serial Port connect (Terminal) ó Above PC with COM Port (DB-9) ó Ethernet Port connect ó > Network cables - Use standard network (UTP) cables with RJ45 connectors. > Above PC installed with WEB Browser and JAVA runtime environment Plug-in It is recommended to use Internet Explore 6.0 or above to access WGSW / SGSW Managed Switch. Note...

  • Page 5: Terminal Setup

    To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to serial (console) port of the WGSW / SGSW Managed Switch. The console port of the Managed Switch is DCE already, so that you can connect the console port directly through PC without the need of Null Modem.

  • Page 6: Logon To The Console

    Once the terminal has connected to the device, power on the WGSW / SGSW Managed Switch, the terminal will display that it is running testing procedures. Then, the following message asks the login password. The factory default password as following and the login screen in Figure 4-1 appears. Password: admin Figure 4-1 WGSW / SGSW Managed Switch Console Login screen 1. For security reason, please change and memorize the new pass- word after this first setup. 2. Only accept command in lowercase letter under console inter- Note...

  • Page 7: Configure Ip Address

    The WGSW / SGSW Managed Switch is shipped with default IP address as following. IP Address : 192.168.0.100 Subnet Mask : 255.255.255.0 To check the current IP address or modify a new IP address for the Switch, please use the procedures as follow: Show the current IP address 1. On “Switch/>” prompt, enter “show ip”.

  • Page 8: Configure Ip Address

    Gateway: 192.168.1.1 Figure 5-2 Set IP address screen 4. Repeat Step 1 to check if the IP address is changed. If the IP is successfully configured, the Managed Switch will apply the new IP address setting immediately. You can access the Web interface of WGSW / SGSW Managed Switch through the new IP address. If you do not familiar with console command or the related param- eter, enter “help” anytime in console to get the help description.

  • Page 9: Start Web Management

    Ethernet connection, please make sure the manager PC must be set on the same IP subnet address. For example, the default IP address of the WGSW / SGSW Managed Switch is 192.168.0.100, then the manager PC should be set at 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.
  • Page 10 “admin” (or the password you have changed via console). The login screen in Figure 6-2 appears. Default Password: admin 3. After entering the password, the main screen appears as Figure 6-3. The following screen based on WGSW-24040 for SGSW-24040 the display will be the same for WGSW-24040. Note Figure 6-3 Web Main Screen of WGSW / SGSW Managed Switch Figure 6-2 Login screen...

  • Page 11: While Ip Address Be Changed Or Forgotten Admin Password

    4. The Switch Menu on the left of the Web page let you access all the commands and statistics the Switch provides. If you do not familiar with Switch functions or the related param- eter, press “Help icon” anytime in right-top of the Web page to get the help description.

  • Page 12: Customer Support

    Customer Support Thank you for purchase PLANET products. You can browse our online FAQ resource at the PLANET website first to check if it could solve you issue. If you need more support information, please contact PLANET switch support team. PLANET online FAQ : http://www.planet.com.tw/en/support/faq.php?type=1 Switch support team mail address : support_switch@planet.com.tw...
