Lattice Semiconductor MachXO2 Quick Start page 2

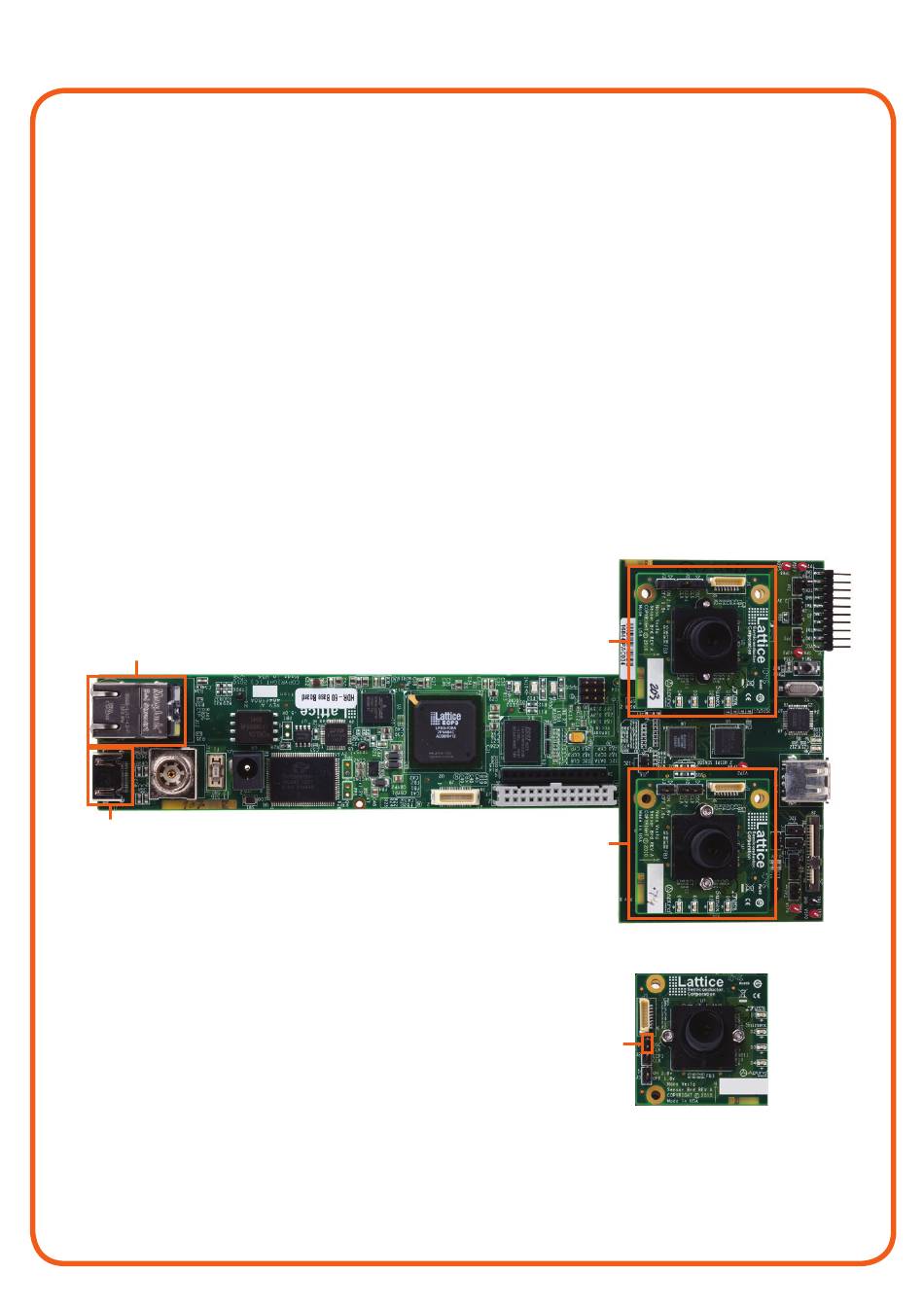

To Connect the DSIB, HDR-60 and NanoVesta Boards:
1. Plug the bottom connectors of the DSIB into the HDR-60 Base Board. The two connectors
align on the bottom of the DSIB to the HDR-60 Base Board, as shown below. These connec-
tors permit mating only one configuration, so no misconnection is possible.
2. Plug a 9MT024 NanoVesta sensor into sensor location #1. Both sensor board connectors
permit mating only one way. Make sure jumper J2 on the NanoVesta board has pins 1
and 2 shorted, as shown below. You can optionally insert another NanoVesta sensor into
sensor location #2, however jumper settings and soldered resistors will need to be modi-
fied accordingly as the default configuration is for one sensor. For further details on these
options, see EB69, MachXO2 Dual Sensor Interface Board User' s Guide.
3. Plug in the 12V power supply of the HDR-60 Base Board into the power connector.
4. Connect the HDMI cable to the HDR-60 Base Board and then to a digital monitor. It is
not necessary to use the HDMI-to-DVI connector if the display accepts HDMI, it can be
directly connected. If the display has a DVI connector, use the HDMI-to-DVI adapter.
USB Connector
HDMI Connector
5. Plug the USB cable into the USB connector on the HDR-60 Base Board and the other end
to a PC.
This procedure is continued on the next page.
MachXO2 Dual Sensor
Optional NanoVesta
Sensor #2
NanoVesta Sensor #1
For single sensor configuration,
J2 must have a jumper
shorting pins 1 and 2
Interface Board
