Lattice Semiconductor CertusPro-NX Quick Start Manual

QuickSTART
This document provides a brief introduction to the CertusPro-NX PCIe Bridge Board
USB2 In
Driver
(U10)
DONE and
Indicator LEDs
(D6-1:3)
USB3 Out
(J20)
USB2 IN
(J17)
USB3 Out
Driver (U15)
LPDDR4
(U6)
JTAG
Header
(J12)
Check Kit Contents
1
The CertusPro-NX PCIe Bridge Board kit contains the following items:
CertusPro-NX PCIe Bridge Board
„
12V AC/DC power adapter and international plug adapters
„
Cables
„
Quick Start Guide with Lattice Radiant software download information
„
Using the CertusPro-NX PCIe Bridge Board
2
The CertusPro-NX PCIe Bridge Board as shipped can support both Master SPI (MSPI)
and Slave SPI (SSPI) modes for configuration. The external SPI Flash Configuration
Memory is pre-loaded with a demonstration program described below.
Installing the Software
3
To develop your own solutions, download and use the Lattice Radiant design software
(version 3.2 or later), download from www.latticesemi.com/radiant. If you only need to
re-program the board, you can use the Radiant Programmer Standalone software (version
3.2 or later).
Push
PMOD0
Buttons
(J7)
(SW2:4)
PCIe Edge
Connector
(CN1)

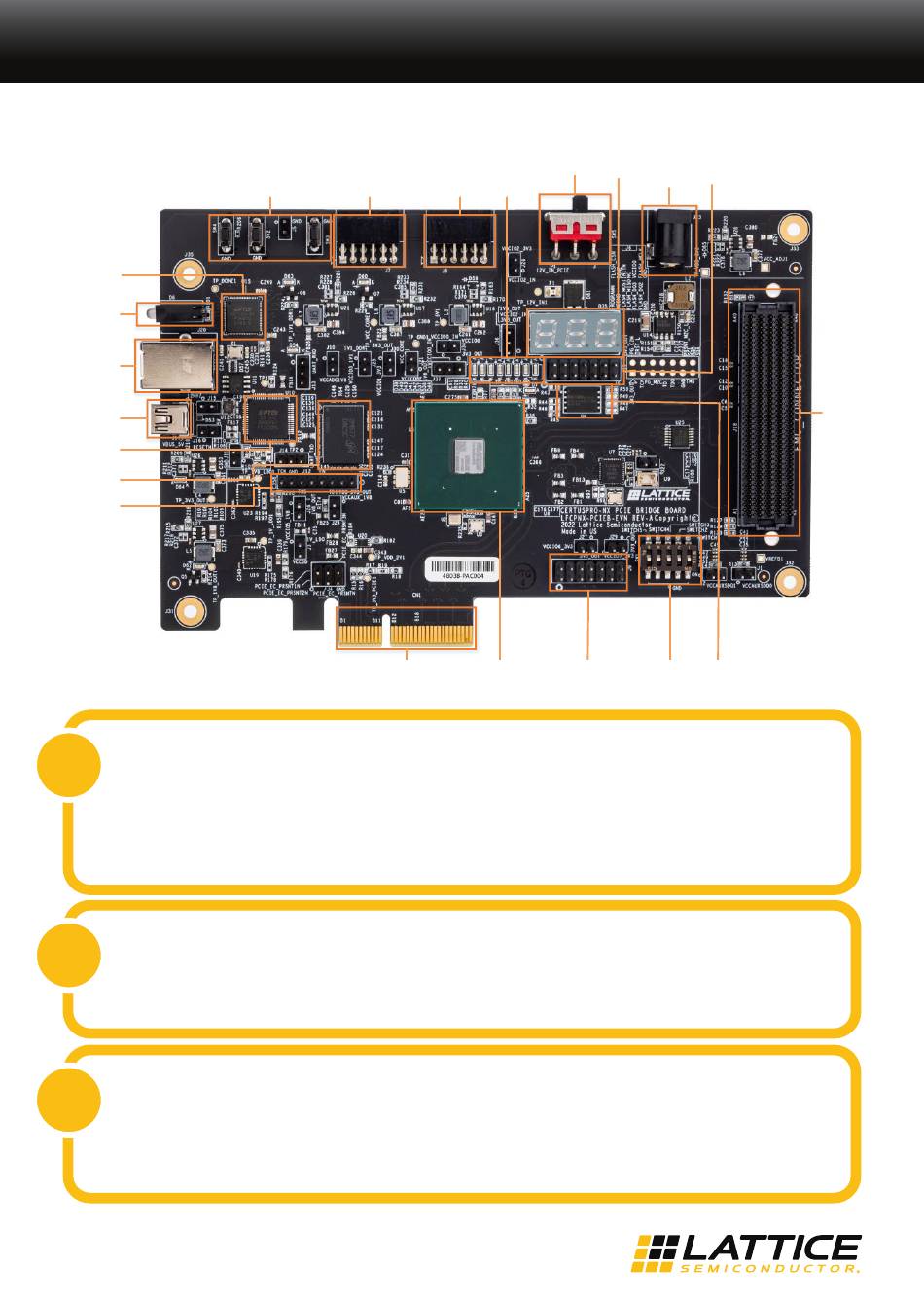

CertusPro-NX PCIe Bridge Board
12V Source 3-Digit
Switch Display
(SW5) (D35)
PMOD1 User LEDs
(J8) (D37:43)
LFCPNX User HP
(U1) GPIO Header
(J9)
12V
DC
SPI Config
Power
Header (J6)
(J23)
User SPI
Switches Flash
(SW1) (U4)
FMC
Connector
(J18)
