Teknion transit Manual page 4

Flush end and flush end bracket

Advertisement

transit
Installation Guides
Section:
WORKSURFACES & COUNTERTOPS
Description:
FLUSH END AND FLUSH END BRACKET

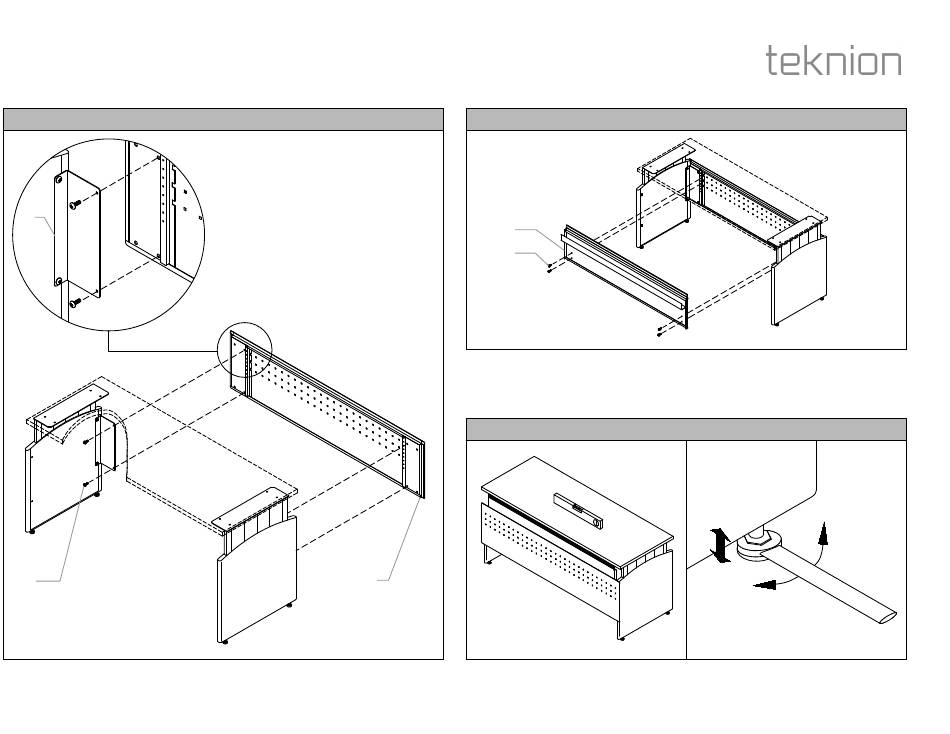

INSTALL MODESTY PANEL
C
E3
STEP 5: Align the whole on the Modesty Panel with the holes on the Flush End Bracket.
Secure the Modesty Panel with Screws provided.
E2
E3
STEP 6: Align the holes on the Wire Tray with the holes on the Modesty Panel. Secure it with
Screws provided.
NOTE: FS Wire Tray Modesty Panel is adjusted to position the vinyl trim flush to the
underside of the Worksurface.
LEVEL THE ASSEMBLED WORKSURFACE
E1
STEP 7: Using a leveler, adjust the Gable Leveler to level the assembled Worksurface.
Date:
TST_251
INSTALL WIRE TRAY
May 2018
Page No:
4 of 4
