Section: WORKSURFACES & COUNTERTOPS
Description: FLUSH END AND FLUSH END BRACKET
INSTALL SUPPORT
A1
B1

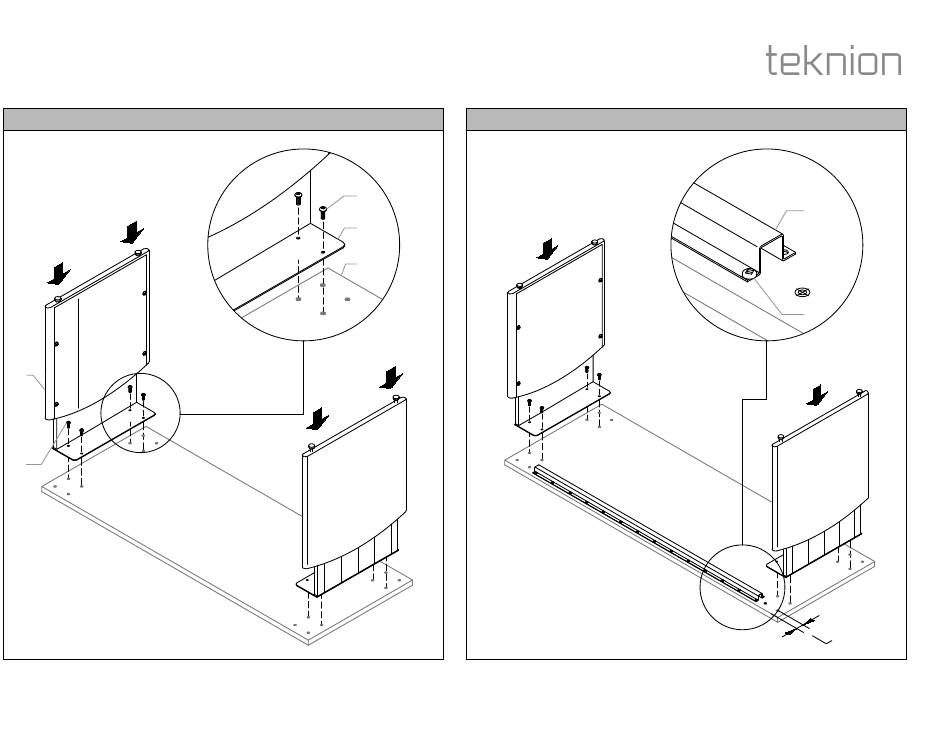

STEP 1: Flip the Worksurface onto a clean surface. Flip the Flush End Support upside down
and align the holes on the support with the holes on the Worksurface. Secure the support with
Screws provide in the kit.
INSTALL SUPPORT (FOR WORKSURFACE ≥ 60")
B1
A1
D
STEP 2: For Worksurfaces 66" or wider follow the isntallation step for the Support on Step 1,
then install a Reinforcing Channel as shown above.
NOTE: Channel location (L) = 1.75"
