th
3950 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760

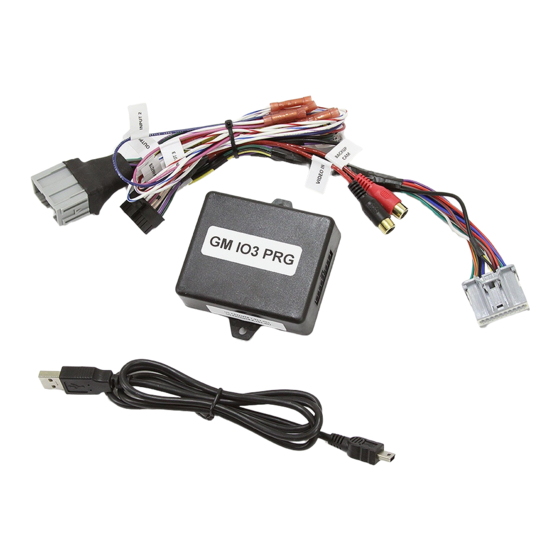

GM IO3-PRG
Dual camera interface for select GM vehicles equipped with 4.2" IO3 Infotainment Screen
NTV-KIT627
BHM
11/16/15
NTV-DOC240

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM IO3-PRG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nav TV GM IO3-PRG

  • Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 GM IO3-PRG Dual camera interface for select GM vehicles equipped with 4.2” IO3 Infotainment Screen NTV-KIT627 11/16/15 NTV-DOC240...
  • Page 2 NTV-DOC240 Overview The GM IO3-PRG interfaces a reverse and (optional) front facing camera on select GM vehicles equipped with the (model IO3) 4” color media screen. Forcing the rear camera to display at any time is activated with a wire trigger if desired.
  • Page 3 10/15/15 NTV-DOC240 Dash Disassembly (Impala) This disassembly is for vehicles where the radio tuner is located beneath the glove box (sedan). In trucks, the radio tuner may be located near the screen in the main dash. 1. Beneath the glove box on the passenger side, remove the under-dash panel.
  • Page 4 4. Optional: connect the front camera or AUX video source to the RCA at the interface labeled ‘FRONT’. 5. Connect the GM IO3-PRG Module to the 18-PIN connector among the provided Plug & Play T-Harness. 6. Connect the male side of the provided Plug & Play T-Harness to the radio tuner. Fully test unit before replacing panels.
  • Page 5 10/15/15 NTV-DOC240 GM IO3-PRG Programming & Operation 1. Once everything is connected, turn the vehicle on to IGNITION. The radio may show briefly and then reboot. 2. Once the radio is booted and settled after the programming sequence is complete, place the vehicle in Reverse.
  • Page 6 NTV-DOC240 GM IO3-PRG USB Updater  To verify that this module has been installed previously, you may download the GM IO3-PRG proprietary USB Updater to check stored VIN’s used previously, if any. The downloadable .ZIP file is located on the NAV-TV website: https://navtv.com/products/category/2/back-up-camera-...
