6-1
Product
specifications
www.maxcessintl.com

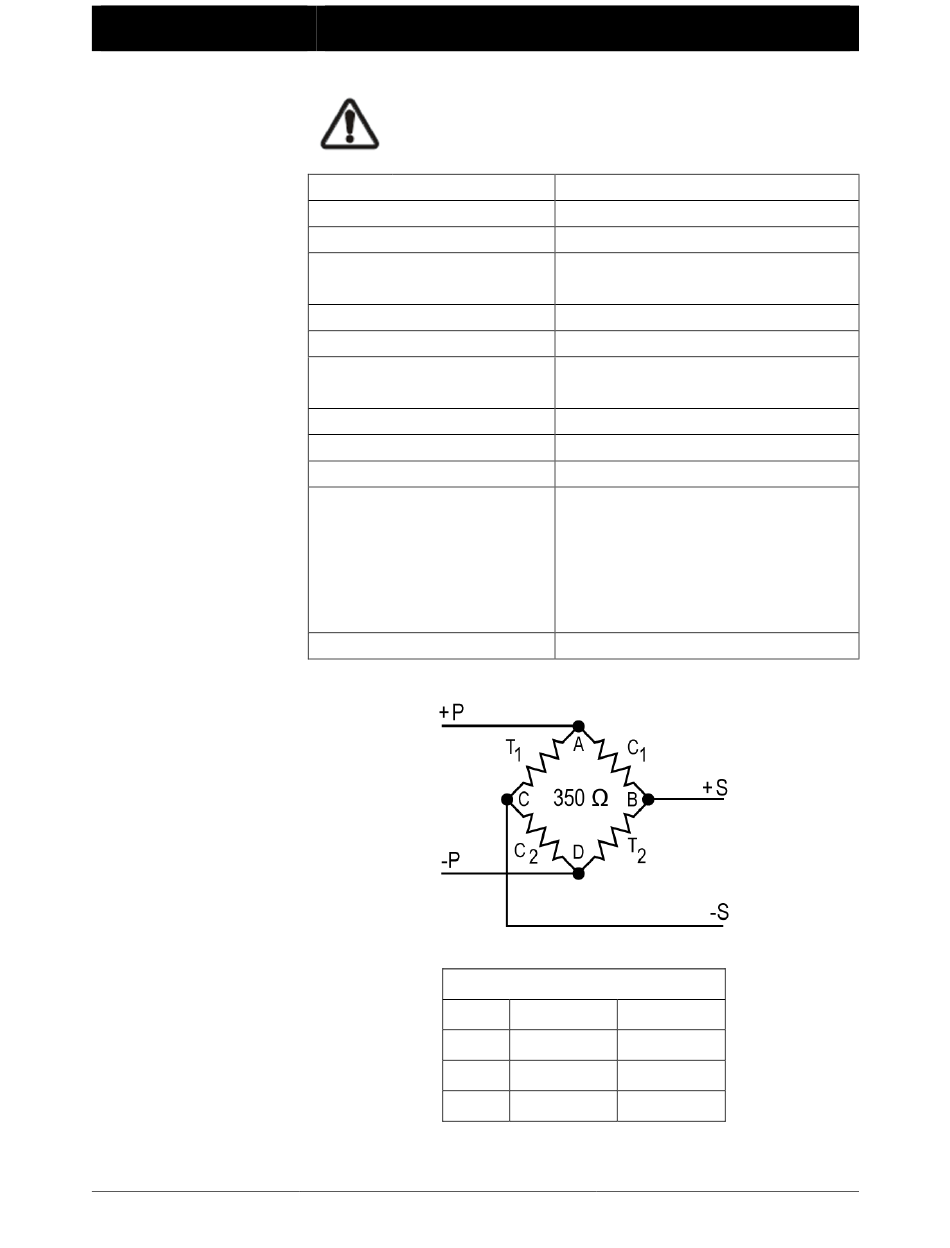

SPECIFICATIONS
Warning – Do not use the devices outside of their rated
specifications
Gage Resistance
Gage Type
Excitation Voltage
Output Signal
Operating Temperature
Temperature effect on zero
Combined non-linearity and
hysteresis
Repeatability
Overload stops
Deflection at full load
Cable Connector
Climate Class
+P
+S
-S
-P
MAGPOWR TS Load Cell
350 ohm
Metal foil, full bridge
10 VDC nominal
21 mVDC nominal at full load
rating
-30° C to 80° C [-22° F to 176° F]
0.02% of rating per ºC [.01 ¯ % of ºF]
0.5% of full scale maximum
0.2% of full scale maximum
105% to 150% of full load rating
0.41 mm [0.016 in.]
12B221-1; MAGPOWR mating cable
assembly Part #LCC5M, or mating
connector Part #12B220-1
(pin 1, +power; pin 2, +signal;
pin 3, -signal; pin 4, -power)
3K3 (EN60721)
Wiring diagram
Pin 1 Red
Pin 2 White
Pin 3 Black
Pin 4 Green
MI 850A342 1 A
