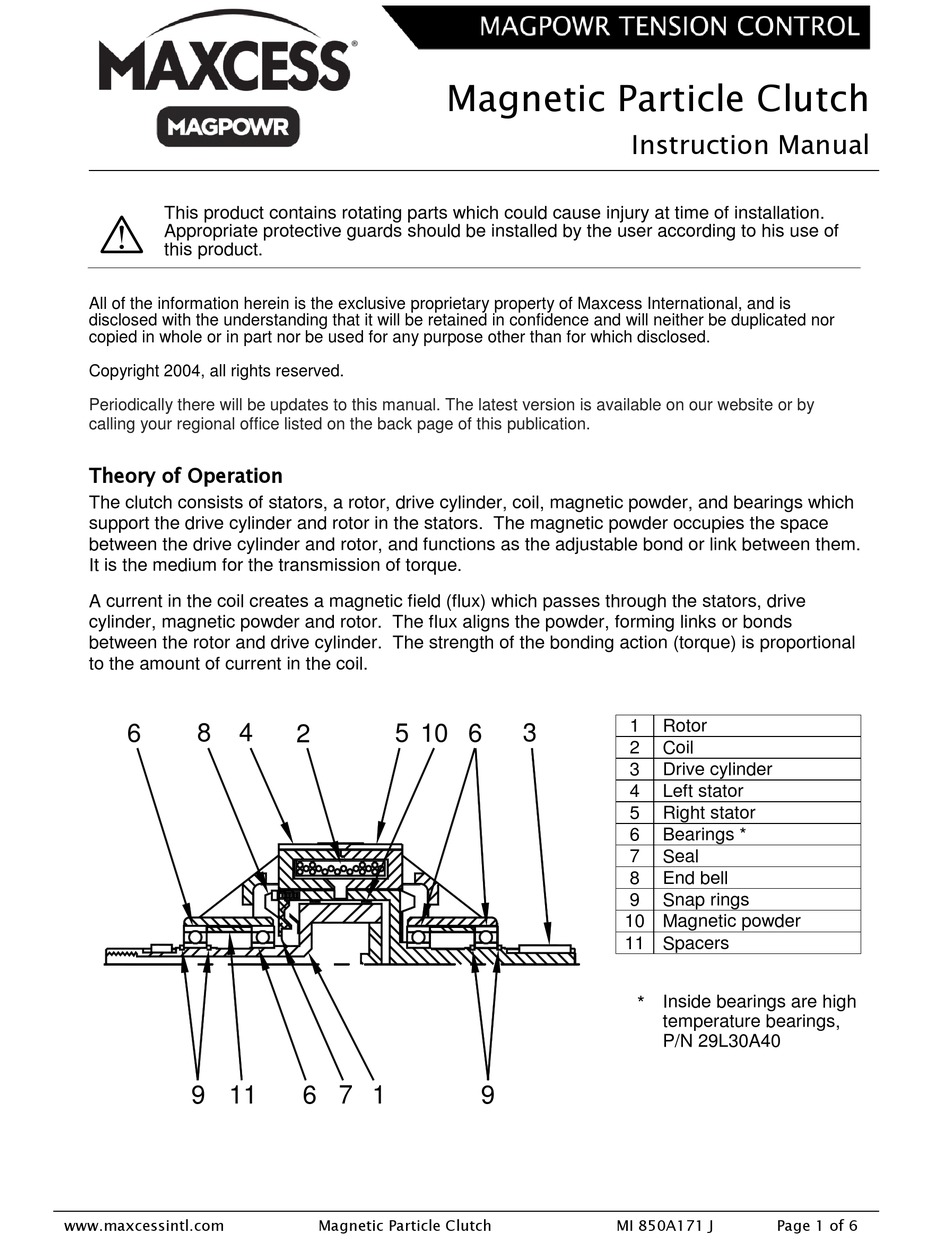

Maxcess MAGPOWR C1 Instruction Manual

This product contains rotating parts which could cause injury at time of installation.

Appropriate protective guards should be installed by the user according to his use of
this product.
All of the information herein is the exclusive proprietary property of Maxcess International, and is
disclosed with the understanding that it will be retained in confidence and will neither be duplicated nor
copied in whole or in part nor be used for any purpose other than for which disclosed.
Copyright 2004, all rights reserved.
Periodically there will be updates to this manual. The latest version is available on our website or by
calling your regional office listed on the back page of this publication.
Theory of Operation
The clutch consists of stators, a rotor, drive cylinder, coil, magnetic powder, and bearings which
support the drive cylinder and rotor in the stators. The magnetic powder occupies the space
between the drive cylinder and rotor, and functions as the adjustable bond or link between them.
It is the medium for the transmission of torque.
A current in the coil creates a magnetic field (flux) which passes through the stators, drive
cylinder, magnetic powder and rotor. The flux aligns the powder, forming links or bonds
between the rotor and drive cylinder. The strength of the bonding action (torque) is proportional
to the amount of current in the coil.
8 4
6
9 11
www.maxcessintl.com
Magnetic Particle Clutch
5 10 6
2
6 7 1
Magnetic Particle Clutch
Instruction Manual
1
3
2
3
4
5
6
7
8
9
10 Magnetic powder
11 Spacers
*
9
MI 850A171 J
Rotor
Coil
Drive cylinder
Left stator
Right stator
Bearings *
Seal
End bell
Snap rings
Inside bearings are high
temperature bearings,
P/N 29L30A40
