T2CVK710D: Configuration of CDVI A22K/A22NB/ADH10 Boards
1. Fasten spacers (supplied with A22K/A22NB/ADH10) to CDVI A22K/A22NB/ADH10 board (Fig. 3b, pg. 4).
2. Mount CDVI A22K/A22NB/ADH10 boards into the correct positions (Fig. 3, pg. 4) by postioning spacers over appropriate holes
on the backplane and depressing down on board to secure spacer to the backplane (Fig. 3a, 3b, pg. 4).
Note: CDVI A22K/A22NB/ADH10 boards have one (1) RJ45 jack each.
Please make sure that they are mounted correctly, as shown in Fig. 3 below.
3. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided).

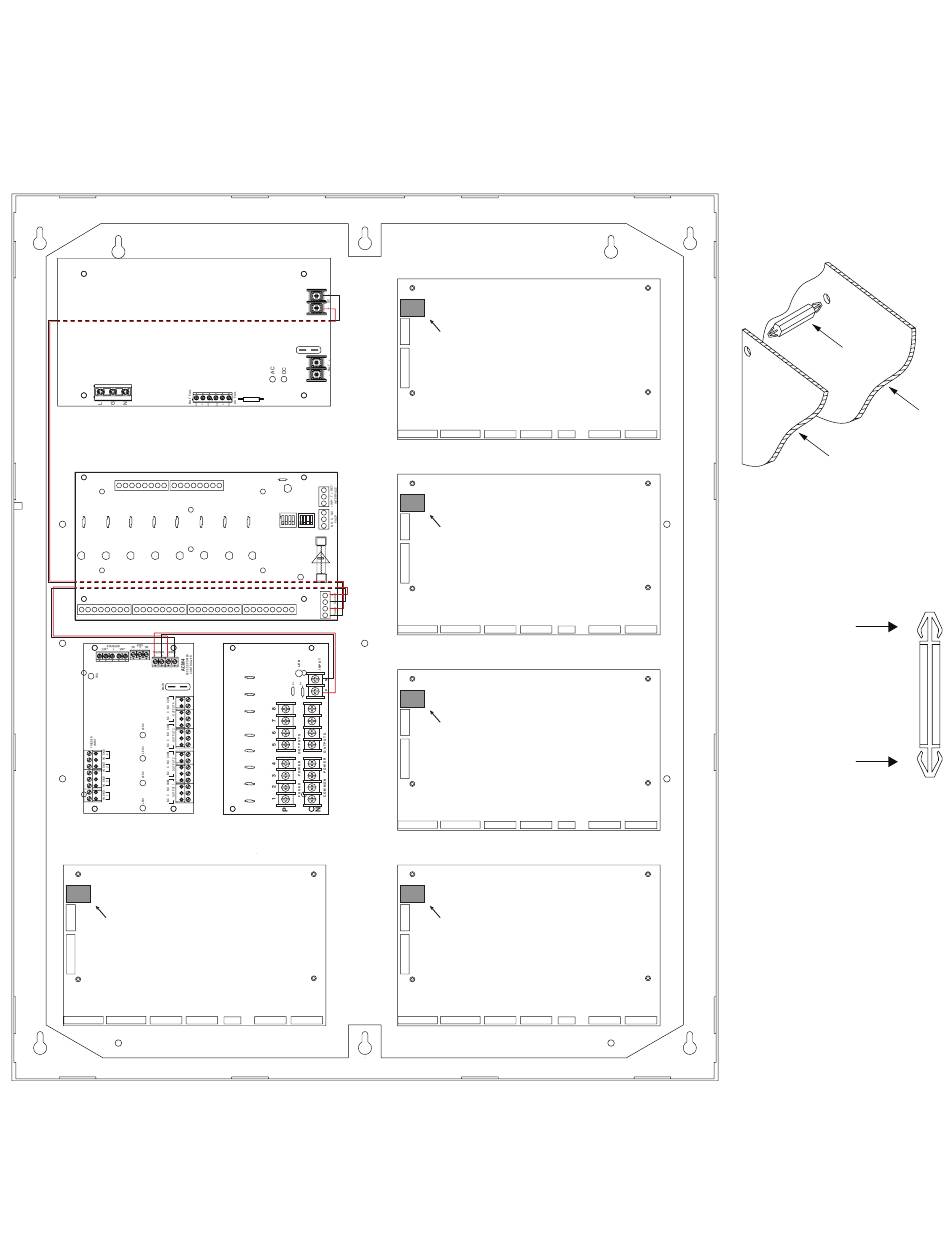

Fig. 3
Altronix AL1024ULXB2
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
5
1 2 3 4
F1 F2 F3 F4
Altronix ACM8CB
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
Altronix
ACM4CB
RJ45 Jack
CDVI - A22K/A22NB/ADH10
- 4 -
AC DELAY
FACP
TRIGGER
TRG
INPUT
6 7 8
F5 F6 F7 F8
O N O N O N O N
1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4
MAIN
10A 250V
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
Altronix PD8ULCB
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
Fig. 3a
Spacer
Backplane
CDVI - A22K/A22NB/ADH10
Access Controller
Fig. 3b
Plastic Spacer
pre-mounted into
CDVI Atrium modules
Insert into
TC1 backplane
