- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2015...
-
Page 2: Table Of Contents
Power/Signal Connection Procedure Addressing Of Each Output When Using Art-Net™ 4. Appendix A Quick DMX Lesson Art-net™ Protocol ArKaos Kling-Net™ Keeping Your PixlStik™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Dimensional Drawings Page 2 PixlStik™ User Manual Rev. A... -
Page 3: Pixlstik
• This Lovely User Manual Getting It Out Of The Box Congratulations on your purchase of the PixlStik™, the totally cool LED strip light that is specifically designed to bring an exciting new look to your light show, and nightmares to your old grammar school teacher! So, now that you’ve got your PixlStik™... -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
In the unlikely event your unit may require service, please visit www.blizzardlighting.com/ tickets to request support via our online support ticket system. Page 4 PixlStik™ User Manual Rev. A © 2015 Blizzard Lighting, LLC... -
Page 5: Meet Pixlstik

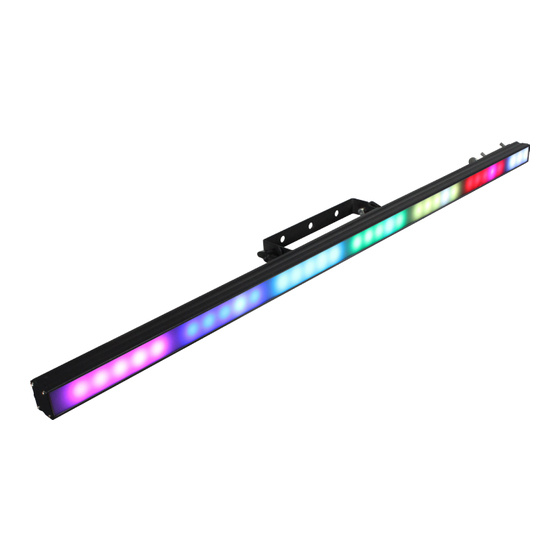

2. MEET THE PIXLSTIK™ LED STRIP PixlStik™ is a pixel mapping, one-meter strip that sets up in minutes with minimal technical knowledge. Each unit houses 40 tri-colored RGB SMD 5050 LEDs, has a pixel pitch of 25 millimeters and 120-degree viewing angle, plus each unit comes with a changeable clear and frosted lens filter. -
Page 6: The Pixlstik™ Pin-Up Picture
Figure 1: The PixlStik™ Pin-Up Picture Mounting Bracket w/Dual Locking Knobs Sturdy Aluminum Housing 40* SMD5050 RGB/FC High-Efficiency LEDs Figure 2: The Rear Connections LEFT Fixture Connector RJ45 Out (Data + Power) Safety Cable Loop RJ45 Out (Data + Power) -
Page 7: Setup
3. SETUP Clear/Frost Filter Installation: The PixlStik™ includes a frost filter already installed. Follow the procedure be- low to install the clear filter. 1. Locate the end cap of the product. 2. Remove the 4 screws from the end cap of the product. -
Page 8: Mounting Instructions
4. Repeat the process to attach more fixtures. Power/Signal Connection Procedure PixlStik™ fixtures use an RJ45 connection to link all ports. Each strip can be linked from end-to-end never exceeding a total of 4 fixtures for each daisy chain. The following diagram illustrates how to configure the data connections. -
Page 9: Addressing Of Each Output When Using Art-Net
Addressing Of Each Output When Using Art-Net™ The PixlKontrol™ uses an RJ45 data connection to link all data ports. You can connect up to 4 daisy chained PixlStik™ fixtures per output on the PixlKontrol™. The following diagram illustrates how to assemble the data connections, and each fixtures starting DMX address per universe using Art-Net: Fixture 1: 001 <-->... -
Page 10: Appendix
• To avoid using expensive hardware video converters to send video to display devices • To allow the creation of an heterogenic network of display devices from different manufacturers, which can all be controlled from one computer Page 10 PixlStik™ User Manual Rev. A © 2015 Blizzard Lighting, LLC... -
Page 11: Keeping Your Pixlstik™ As Good As New
Keeping Your PixlStik™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 12: Tech Specs
Other Operating Modes Standalone, Master/Slave, Auto, Sound Active Other Information Yes. Is time travel possible? 2-year limited warranty, does not cover malfunction Warranty caused by damage to LEDs. Page 12 PixlStik™ User Manual Rev. A © 2015 Blizzard Lighting, LLC... -
Page 13: Dimensional Drawings
Dimensional Drawings 1.4” (36.5 mm) Page 13 PixlStik™ User Manual Rev. A © 2015 Blizzard Lighting, LLC... - Page 14 This page intentionally left blank. Page 14 PixlStik™ User Manual Rev. A © 2015 Blizzard Lighting, LLC...
- Page 15 This page intentionally left blank. Page 15 PixlStik™ User Manual Rev. A © 2015 Blizzard Lighting, LLC...
- Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
