Summary of Contents for Blizzard Lighting PIXELSTORM

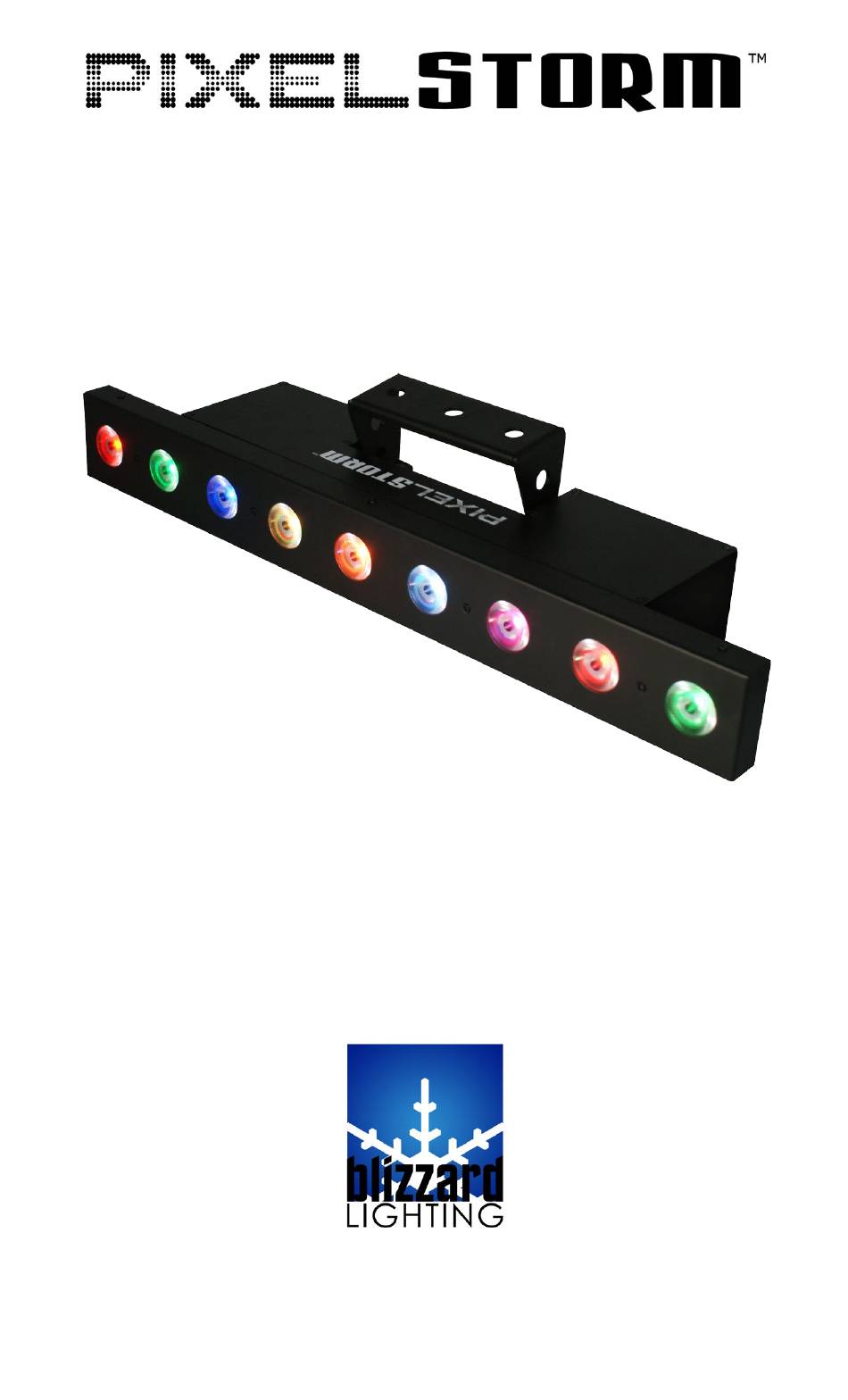

- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2012...
-
Page 2: Table Of Contents
DMX Mode Master/Slave Mode DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your PixelStorm™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 3: Pixelstorm
• This Lovely User Manual Getting It Out Of The Box Congratulations on purchasing one of the coolest LED fixtures anywhere! Now that you’re the proud owner of a PixelStorm™ (or hopefully, MORE!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at support@blizzardlighting.com. Page 4 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 5: Meet The Pixelstorm
Static colors + Built-in programs Speed (slow <--> fast) Speed (slow <--> fast) Red Intensity (0% <--> 100%) Green Intensity (0% <--> 100%) Blue Intensity (0% <--> 100%) Page 5 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... -

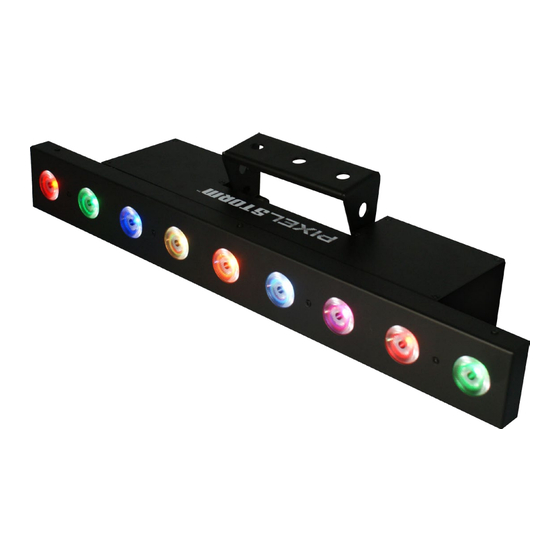

Page 6: The Pixelstorm™ Pin-Up Picture
Figure 1: The PixelStorm™ Pin-Up Picture Mounting Bracket Black Aluminum Casing High Power 3W Tri-Color LEDs Figure 2: The Rear Connections AC Power In AC Power Out 3-Pin DMX In 3-Pin DMX Out 5-Pin DMX In 5-Pin DMX Out Locking Knobs... -
Page 7: Setup
Under normal operating conditions, the fuse should not require replacement. The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your PixelStorm™ fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of PixelStorm™ Fixtures You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in master/slave operating mode. -
Page 8: Cable Connectors
We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixtures overhead. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the goodies and different modes possible with the PixelStorm™ are accessed by using the control panel on the back of the fixture. There are 4 control buttons below the LED display which allow you to navigate through the various control panel menus. MENU DOWN ENTER <MENU> Used to access the menu or return to a previous menu option. -
Page 11: Control Panel Menu Structure
(0-9). Finally, pushing <ENTER> once more ends editing of the program. Program #14 is not editable, it cycles through all of the previous chase effects. P . 6 001 -512 Flips the display. <ENTER>, <UP/DOWN>, <ENTER> Page 11 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
Allows a single or Master/Slaved units to run factory installed programs at user selectable speeds. 1. The first fixture in the DMX chain will serve as the master unit. To set other fixtures in line to slave mode, make sure these fixtures have a starting DMX address that is set to match that of the master unit. For example, if your master fixture has the DMX starting address of C001, all other fixtures linked in the DMX chain must match that DMX starting address of C001. These fixtures will now function exactly as the master does. Page 12 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 13: Dmx Channel Values In-Depth
009 <--> 255 Pixel 9 Red (0% <--> 100%) 009 <--> 255 Pixel 9 Green (0% <--> 100%) 009 <--> 255 Pixel 9 Blue (0% <--> 100%) Page 13 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... - Page 14 009 <--> 255 Pixel 7/8/9 Red (0% <--> 100%) 009 <--> 255 Pixel 7/8/9 Green (0% <--> 100%) 009 <--> 255 Pixel 7/8/9 Blue (0% <--> 100%) Page 14 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC...
- Page 15 000 <--> 255 Speed (Slow <--> Fast) 009 <--> 255 Red (0% <--> 100%) 009 <--> 255 Green (0% <--> 100%) 009 <--> 255 Blue (0% <--> 100%) Page 15 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC...
- Page 16 186 <--> 201 Pixel Effect 10 202 <--> 217 Pixel Effect 11 218 <--> 233 Pixel Effect 12 234 <--> 249 Pixel Effect 13 250 <--> 255 Blackout 000 <--> 255 Speed (Slow <--> Fast) Page 16 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC...
-
Page 17: Troubleshooting
Fixture Not Make sure all connectors are seated properly and securely. Responding / Use Only DMX Cables. Responding Er- Install a Terminator. ratically Check all cables for defects. Reset fixture(s). Page 17 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 18: Keeping Your Pixelstorm™ As Good As New
Keeping Your PixelStorm™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 19: Tech Specs
Coolness Factor Leventy Billion Percent 2-year limited warranty, does not cover Warranty malfunction caused by damage to LED’s. DISCLAIMER: The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG. Page 19 PixelStorm User Manual Rev. B Copyright (c) 2012 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
