Expansion card connection

7

Installation

7.1

Receipt of the product

7.2

Hydraulic connection

Installation and operating instructions • Wilo-Isar BOOST5 • Ed.03/12/2022

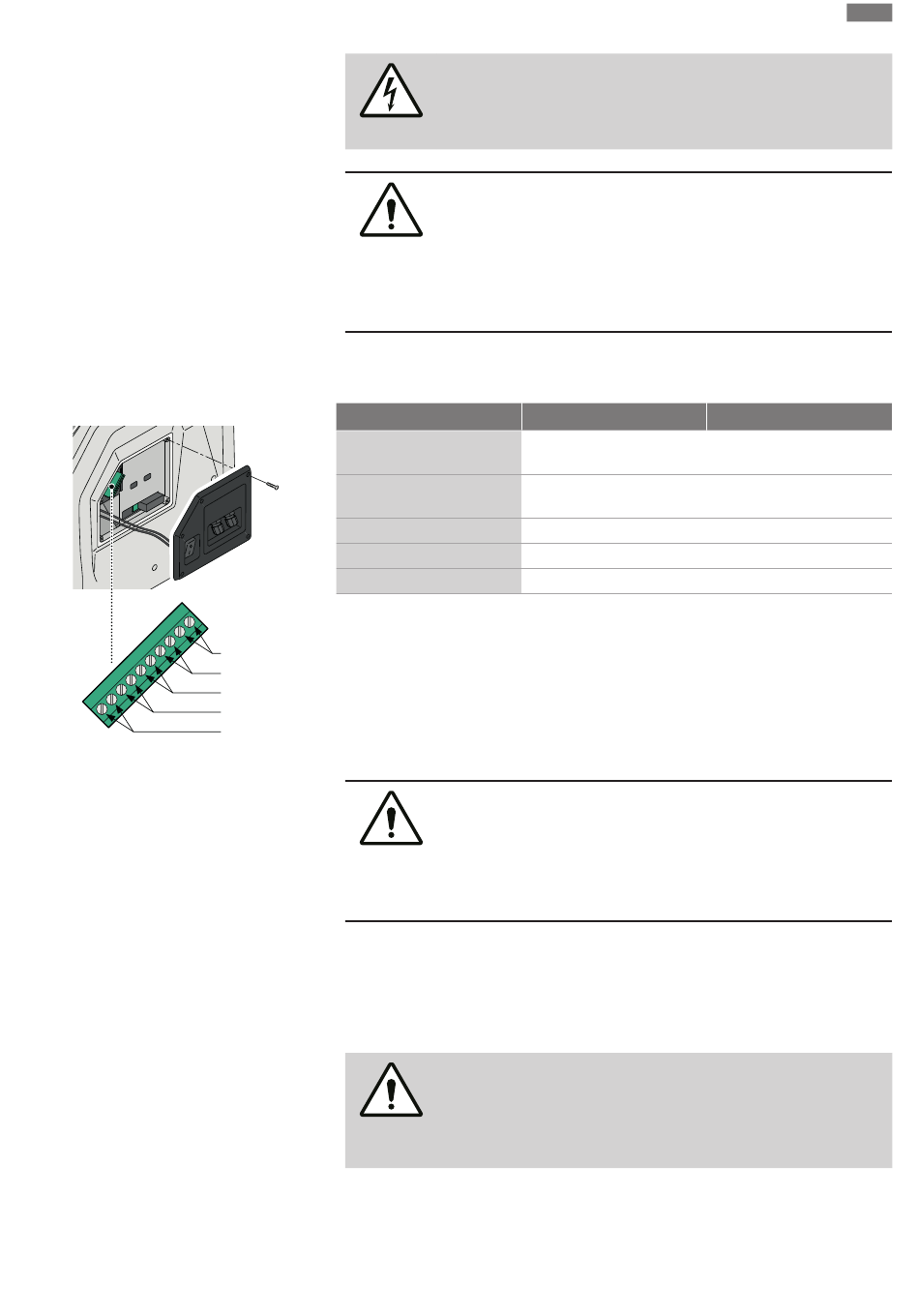

• Unscrew and remove the fastening screws on the cover.
• Partly remove the cover to access the expansion card terminal block.
Terminal block key
9-10
7-8 0 V
5-6
3-4 OUTPUT
1-2 INPUT
Choose a location to suit the device dimensions (Fig. 3) where the connections will be ac-
cessible.
Unpack the pump and recycle or dispose of the packaging in an environmentally respons-
ible manner.
WARNING
Risk of electric shock.
Hazards from electric current must be prevented.
CAUTION
Risk of material damage
Any device attached to the expansion card must be at separated extra-
low voltage (SELV).
Do not pull the electric cables attached to the main on/off switch when
removing the cover.
1-2
3-4
5-6
7-8
9-10
CAUTION
Risk of material damage
Position the product horizontally and level.
Install the product in a dry, well-ventilated location protected from frost.
The product is not designed for use outdoors.
DANGER
Risk of physical injuries
The applicable regulations for the prevention of accidents must be com-
plied with.
Input LEVEL SIGNAL - bridge in ab-
sence of signal
Output ALARM SIGNAL – max 0.3 A
@ 230 V AC / 1 A @ 30 V DC
Not connected - Do not use
0 V Not connected
Not connected - Do not use
