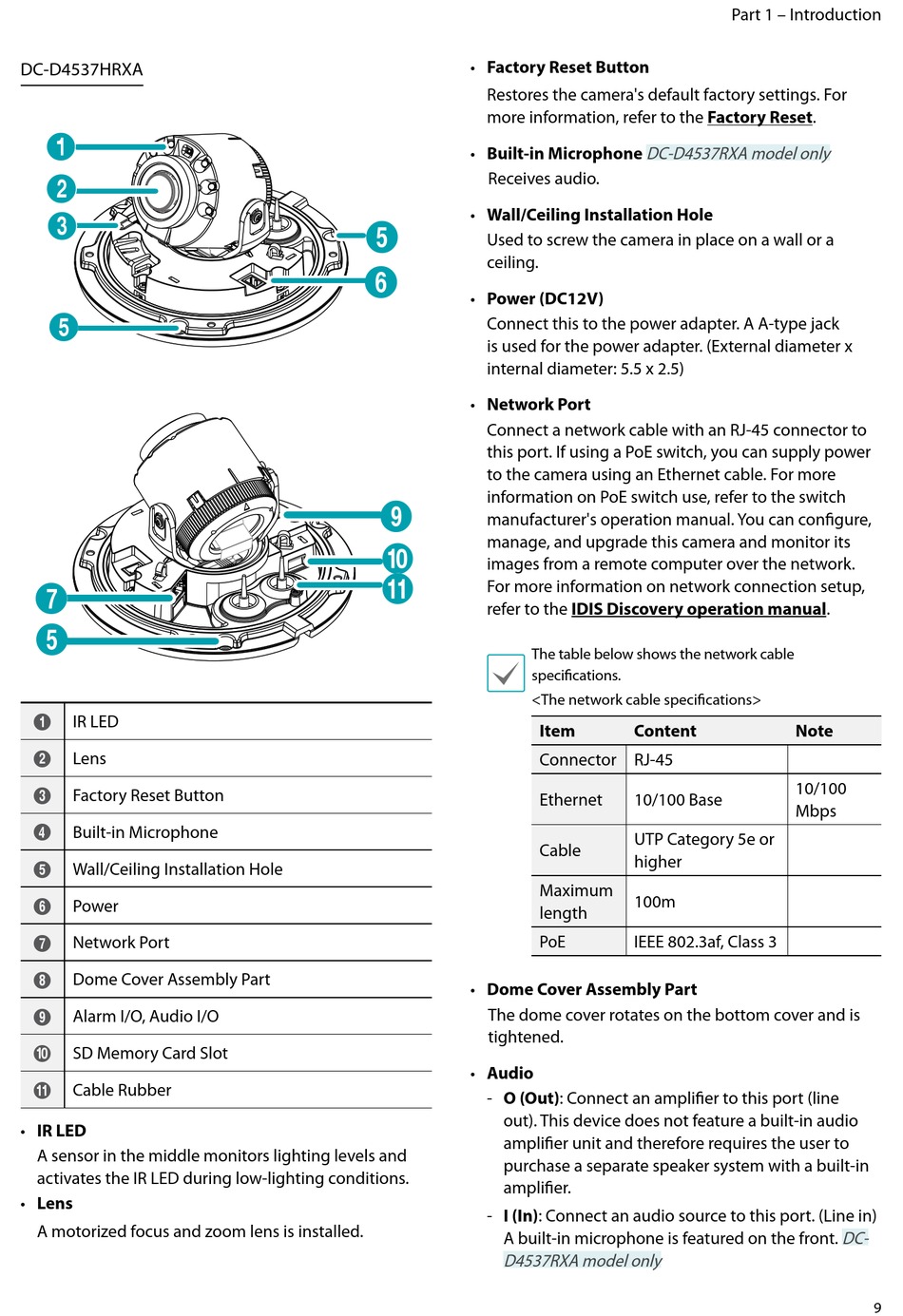

Direct IP IDIS DC-D4537RXA Installation Manual page 9

DC-D4537HRXA
1
2
3
5
7
5
IR LED
1
Lens
2
Factory Reset Button
3
Built-in Microphone
4
Wall/Ceiling Installation Hole
5
Power
6
Network Port
7
Dome Cover Assembly Part
8
Alarm I/O, Audio I/O
9
SD Memory Card Slot
0
Cable Rubber
!
• IR LED
A sensor in the middle monitors lighting levels and
activates the IR LED during low-lighting conditions.
• Lens
A motorized focus and zoom lens is installed.
• Factory Reset Button
Restores the camera's default factory settings. For
more information, refer to the Factory Reset.
• Built-in Microphone
Receives audio.
• Wall/Ceiling Installation Hole
5
Used to screw the camera in place on a wall or a
ceiling.
6
• Power (DC12V)
Connect this to the power adapter. A A-type jack
is used for the power adapter. (External diameter x
internal diameter: 5.5 x 2.5)
• Network Port
Connect a network cable with an RJ-45 connector to
this port. If using a PoE switch, you can supply power
to the camera using an Ethernet cable. For more
information on PoE switch use, refer to the switch
9
manufacturer's operation manual. You can configure,
manage, and upgrade this camera and monitor its
0
images from a remote computer over the network.
!
For more information on network connection setup,
refer to the IDIS Discovery operation manual.
The table below shows the network cable
specifications.
<The network cable specifications>
• Dome Cover Assembly Part
The dome cover rotates on the bottom cover and is
tightened.
• Audio
- O (Out): Connect an amplifier to this port (line
out). This device does not feature a built-in audio
amplifier unit and therefore requires the user to
purchase a separate speaker system with a built-in
amplifier.
- I (In): Connect an audio source to this port. (Line in)
A built-in microphone is featured on the front.
D4537RXA model only
DC-D4537RXA model only
Item Content
Connector RJ-45
Ethernet 10/100 Base
UTP Category 5e or
Cable
higher
Maximum
100m
length
PoE IEEE 802.3af, Class 3
Part 1 – Introduction
Note
10/100
Mbps
DC-
9
