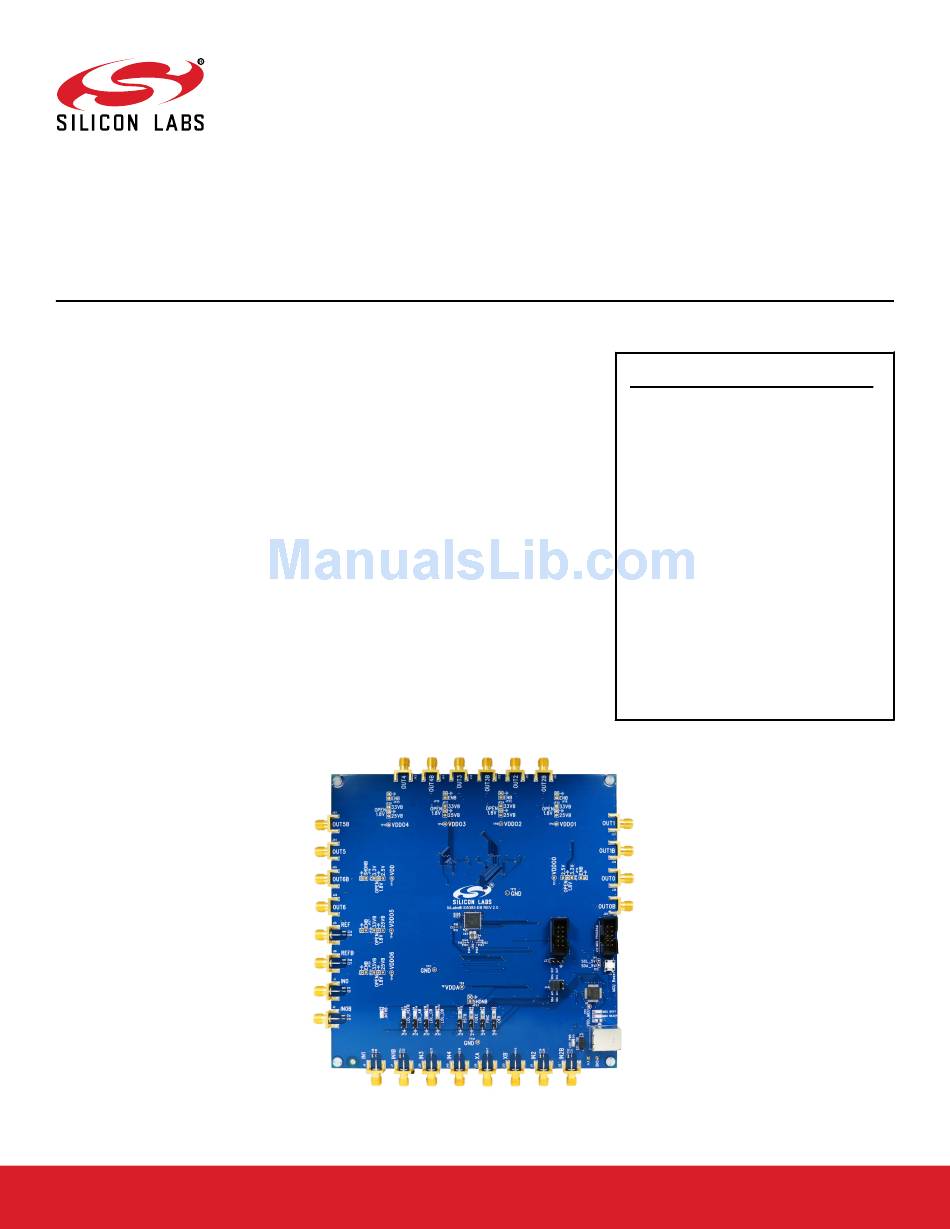

Silicon Laboratories Si5383-EVB User Manual

UG256: Si5383 Evaluation Board User's
Guide

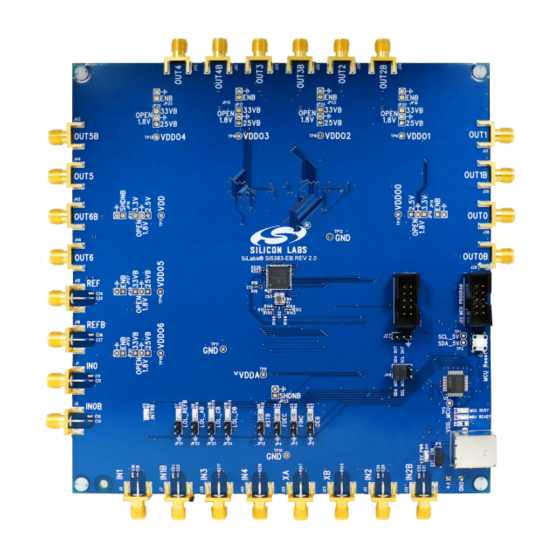

The Si5383-EVB is used for evaluating the Si5383 Network Syn-
chronizer Clock for SyncE/1588 and Stratum 3/3E applications.
The Si5383 contains three independent DSPLLs in a single IC
with programmable jitter attenuation bandwidth on a per DSPLL
basis. The Si5383-EVB supports three independent differential
input clocks, two independent CMOS input clocks, and seven in-
dependent output clocks via onboard SMA connectors. The
Si5383-EVB can be controlled and configured via a USB connec-
tion to a host PC running Silicon Labs' next generation Clock
Builder Pro™ (CBPro™) software tool. Test points are provided
on-board for external monitoring of supply voltages.
silabs.com | Building a more connected world.
EVB FEATURES
• Powered from USB port or external +5 V
power supply via screw terminals
• Onboard 48 MHz XTAL and included
SiOCXO1-EB reference board
standalone or holdover mode of operation
on the Si5383
• CBPro™ GUI programmable V
supplies allow each of the seven outputs
to have its own supply voltage selectable
from 3.3, 2.5, or 1.8 V
• CBPro™ GUI allows control and
measurement of voltage, current, and
power of VDD and all 7 VDDO supplies
• Status LEDs for power supplies and
control/status signals of Si5383
• SMA connectors for input clocks, output
clocks and optional external timing
reference clock
allows
DDO
Rev. 1.2
