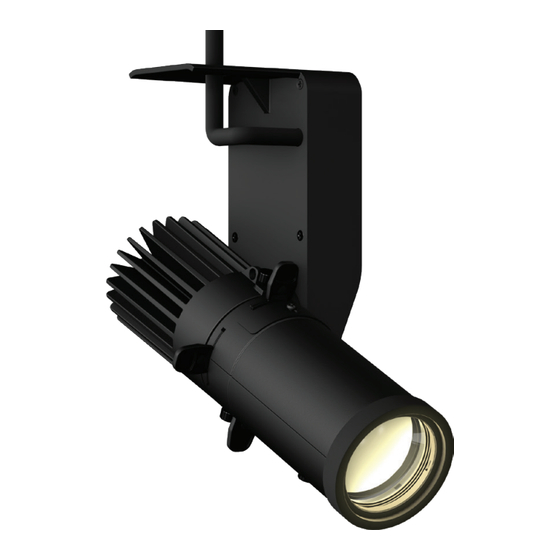

- Page 1 EclMini CC 18W White LED gallery light, constant cur- rent. Connects to an external PSU and driver USER MANUAL English version REV.01-10/22...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY...
- Page 3 ANTI-GLARE LOUVRE (CODE ECLMINILOUVRE - OPTIONAL) ........14 HALF SNOOT, FULL SNOOT (CODES ECLMINIHSNOOT, ECLMINIFSNOOT - OPTIONAL) ........................15 11 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............16 VISUAL CHECK OF PRODUCT HOUSING ..............16 TROUBLESHOOTING ..................... 17 PROLIGHTS - EclMini CC...
-
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •... - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - EclMini CC...
-
Page 7: Package Content
• NAXTSA55129: global Pulse Rotating Nipples 3-Circuit Adapters, M13, H 12mm, D 9mm. • NAGAM109: global Pulse Nut M10 for NAXTSA57129. • NAGAM139: global Pulse Nut M13 for NAXTSA55129. • NASKB12/3: global Pulse Track Mounting Clamp for Rod and Wire, 200N, white/black. PROLIGHTS - EclMini CC... -
Page 8: Technical Drawing
Weight: 1,61 kg - 3,55 lbs ECLMINICC with ECLDISPWASHL1530 Weight: 1,6 kg - 3,53 lbs ECLMINICC with ECLDISPWASHL2550 146 mm 224 mm [5.7 in] [8.8 in] 92 mm [3.6 in] Weight: 1,78 kg - 3,92 lbs ECLMINICC with MINIECLL Fig. 01 PROLIGHTS - EclMini CC... -
Page 9: Tilt Range
4 - TILT RANGE TILR RANGE: 196° Fig. 02 PROLIGHTS - EclMini CC... -
Page 10: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 clamp RSR0630A/B Steel security cable 26 mm 58 mm Track system 1,02 in 2,3 in Fig. 03 PROLIGHTS - EclMini CC... - Page 11 Led driver: constant current 500mA maximum output voltage 60Vdc, min 18W. NOTE: Please take attention to the polarity of the connection. Loosen and remove the marked four screws. Then remove the arm housing (1). Fig. 04 PROLIGHTS - EclMini CC...
- Page 12 7 - CONNECTION TO EXTERNAL POWER SUPPLIES driver CONTROL MAINS SIGNAL CONNECTION WIRES LED - BLACK LED + Fig. 05 PROLIGHTS - EclMini CC...
-
Page 13: Product Overview
3. KNOB for releasing and locking the optic and for zoom. 4. OPTIC (accessory not included, in the figure ECLDISPWASHL1530). 5. RUBBER RING (accessory included in the optic box). 6. PLASTIC CAP for access to connections. 7. LOCK TILT. Fig. 06 PROLIGHTS - EclMini CC... -
Page 14: Accessories Installation
Loosen the two marked knob (A) of the ECLMINICC. Insert the optic (1-B) and rotate it (1-C) so the marked grooves (2-D) of the optic coincides with the four marked flaps of the unit (3-A). Fig. 07 PROLIGHTS - EclMini CC... - Page 15 (3). Insert the holder from above throught the track Move the marked rod down (6). (4). Then insert the barn door (5). Fig. 08 PROLIGHTS - EclMini CC...
- Page 16 NOTE: the rubber ring can also be used to fix a filter with a maximum diameter of 79 mm. Rubber ring Anti-glare louvre Insert the anti-glare louvre or a filter of maximum size of Ø50 mm into the rubber ring. Mount the anti-glare louvre with the rubber ring on the optic. Fig. 09 PROLIGHTS - EclMini CC...
- Page 17 Loosen the three marked knob. Insert the half snoot on the optic and tighten the knobs in the egraved ring. Loosen the three marked knob. Insert the full snoot on the optic and tighten the knobs in the egraved ring. Fig. 10 PROLIGHTS - EclMini CC...
-
Page 18: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 19: Troubleshooting
Timeout error after fixture • One or more hardware • Check product stored error messages for more reset. • components requires information. Contact PROLIGHTS Service or an • mechanical adjustments authorized service partner. Mechanical effect loses • Mechanical hardware •... - Page 20 Note...
- Page 21 Note...
- Page 22 Note...
- Page 24 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
