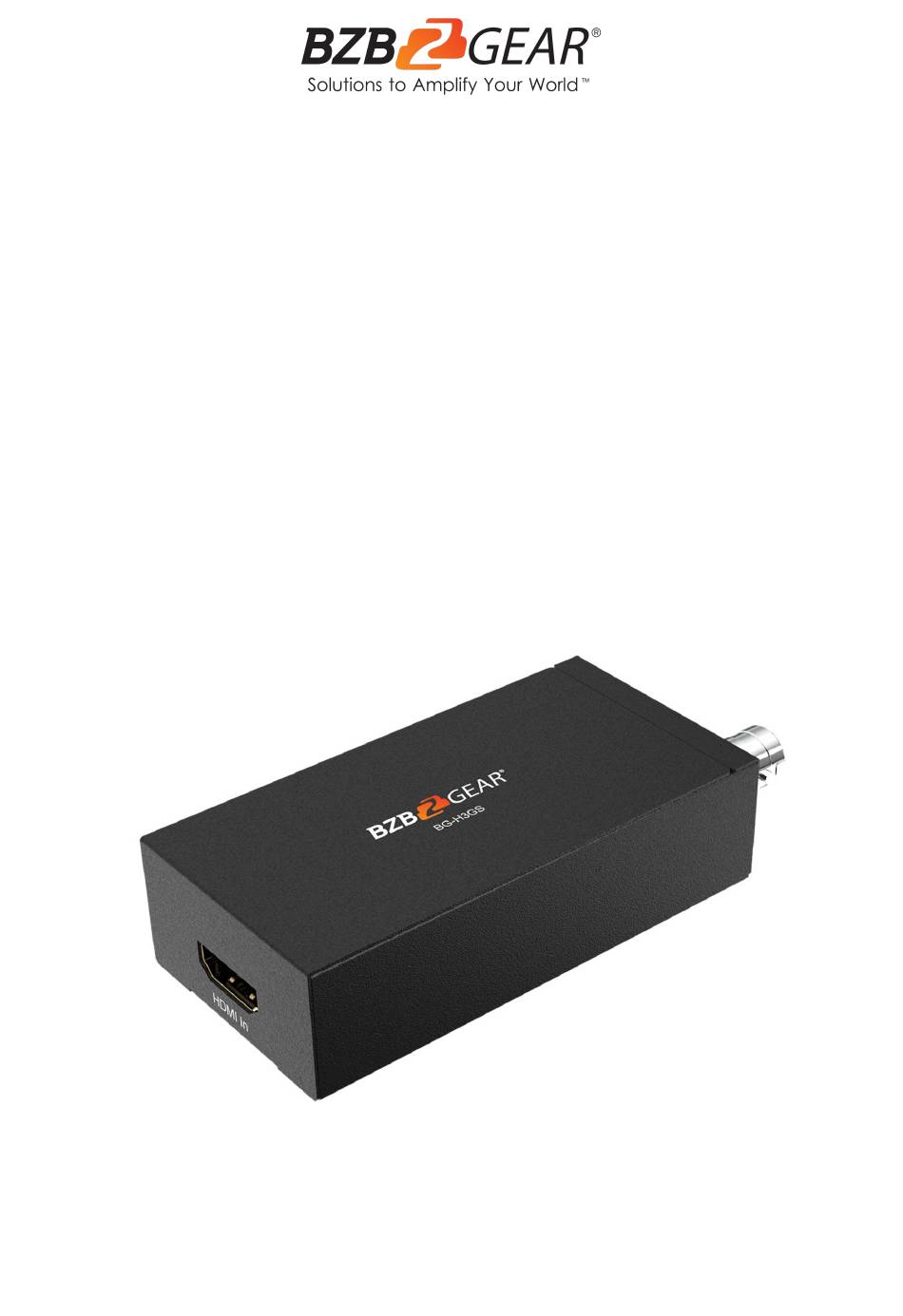

- Page 1 BG-H3GS Mini HDMI to 3G-SDI Converter User Manual...
- Page 2 BZBGEAR BG-H3GS PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 3 BZBGEAR BG-H3GS PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Connection and Operation Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 4 BZBGEAR BG-H3GS PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.
- Page 5 PRODUCT MANUAL Introduction The BG-H3GS allows HDMI signals to be shown on SDI displays while ensuring a high bit rate of 2.970 Gbit/s to provide a high-resolution signal without any loss. For professionals this means that it is now easier to convert your high-definition HDMI signal with audio to SDI for long distance transmissions and display your work on SDI displays.
- Page 6 BZBGEAR BG-H3GS PRODUCT MANUAL Specifications Input Port 1 x HDMI Output Port 1 x BNC (SDI/HD-SDI/3G-SDI) SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s 480i, 576i, 720p@50/59.94,60,1080i @50/59.94/60 Input and Output Resolutions 1080p@23.97/24/25/29.97/30/50/59.94/60 Power Supply DC 5V -12V ESD Protection Human Body ±8kV (air-gap discharge)
- Page 7 BZBGEAR BG-H3GS PRODUCT MANUAL Connection and Operation 1. SDI OUT: Connect to SDI display with a coaxial cable. 2. Power LED: This red LED illuminates when the device is connected to the power supply. 3. DC IN: Port for the 5V-12V DC power supply.
- Page 8 BZBGEAR BG-H3GS PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,...
