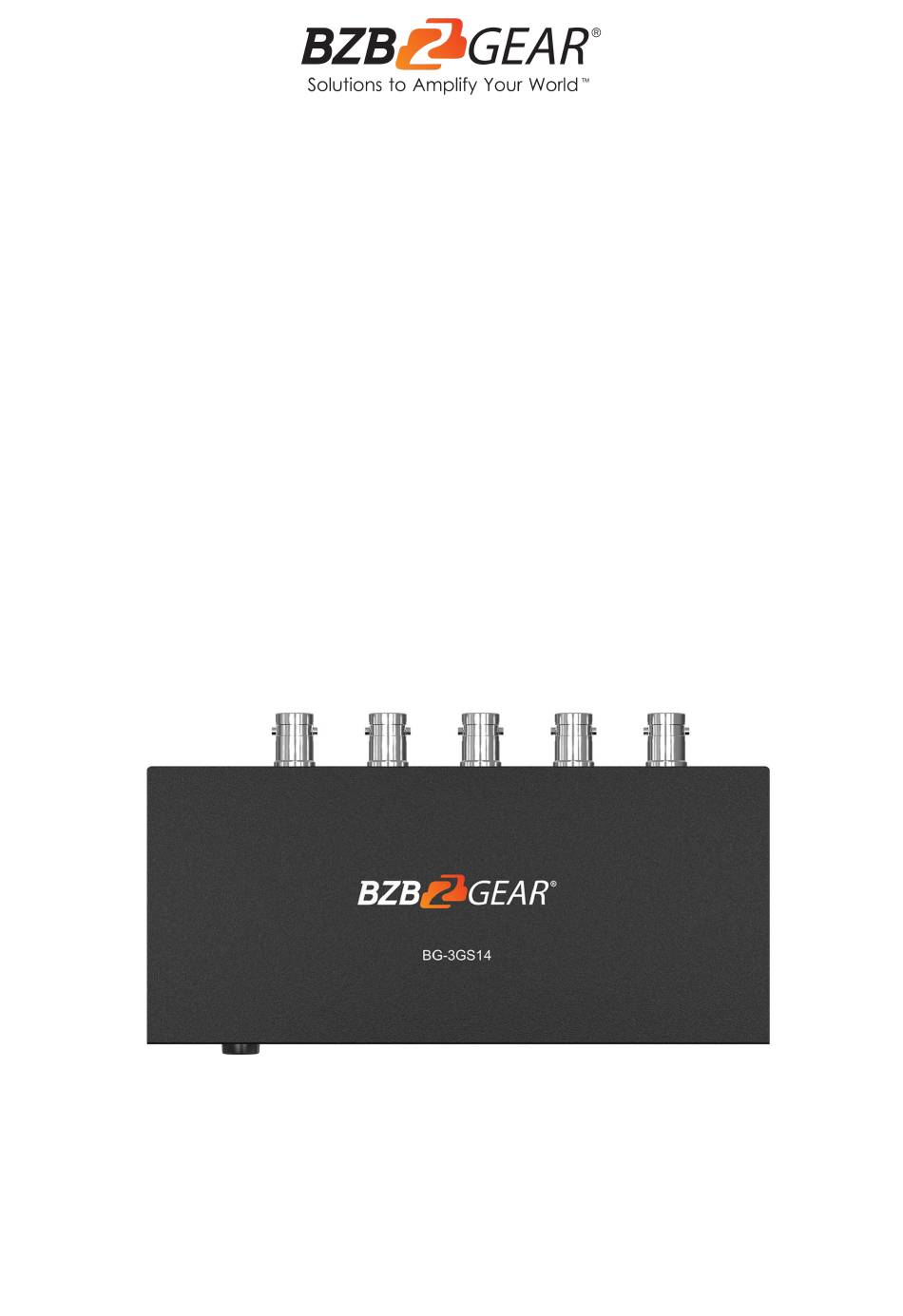

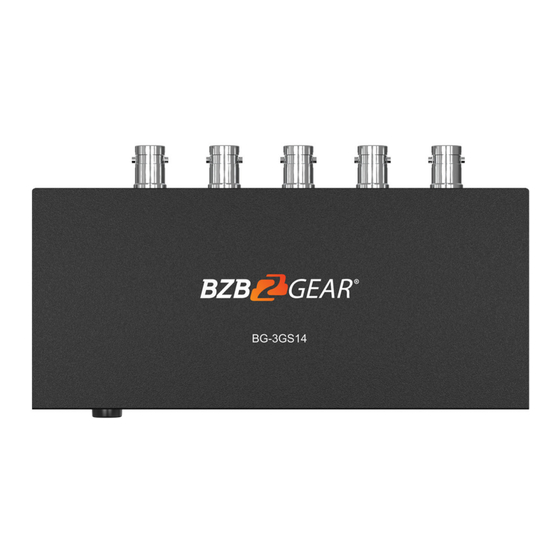

- Page 1 BG-3GS14 SDI 1x4 Splitter User Manual...
- Page 2 BZBGEAR BG-3GS14 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-3GS14 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Connection and Operation Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-3GS14 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-3GS14 is a 1x4 3G-SDI splitter that splits one SDI input to four SDI outputs simultaneously. With a signal relocking feature, the unit also extends a video signal for long distances. This reliable and powerful tool provides consistent connections in a variety of different scenarios such as adding multiple outputs for monitoring a video feed on separate... -
Page 6: Specifications
BZBGEAR BG-3GS14 PRODUCT MANUAL Specifications Signal Input/Output Input Connector 1x SDI BNC Male Output Connector 4x SDI BNC Male SDI Cable Distance (RG59 cable) 3G Mode Up to 80m (263ft) HD Mode Up to 120m (394ft) SD Mode Up to 200m (656ft) -
Page 7: Connection And Operation
Connection and Operation Application Example 1. Connect the BG-3GS14 to power. 2. Connect the SDI cable to signal “SDI IN” from the source device. 3. Connect the SDI cable from “SDI OUT” to a SDI display or another SDI device. -
Page 8: Tech Support
BZBGEAR BG-3GS14 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,...
