Summary of Contents for BZB Gear BG-8K-DA14A

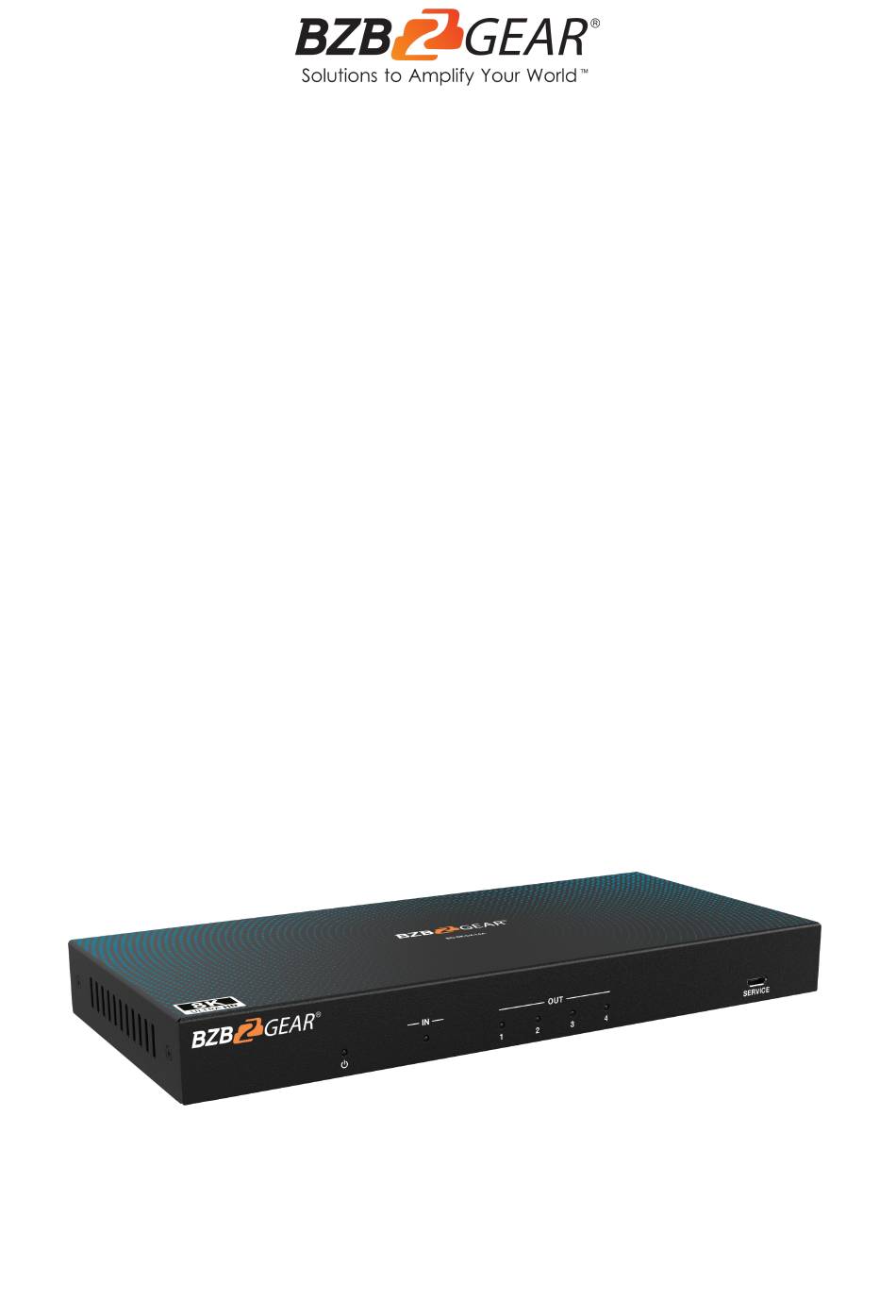

- Page 1 BG-8K-DA14A 8K HDMI 1x4 Splitter User Manual...
- Page 2 BZBGEAR BG-8K-DA14A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-8K-DA14A PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Application Diagram Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906... -
Page 4: Statement
BZBGEAR BG-8K-DA14A PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-8K-DA14A is an 8K HDMI 1x4 splitter that can distribute one HDMI source signal to any of the four connected display devices. It supports video resolution up to 8K@60Hz 4:2:0, advanced EDID management, and audio de-embedding functionality (output through the optical and analog ports). -
Page 6: Specifications
BZBGEAR BG-8K-DA14A PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 40Gbps Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 Video Resolution 10bit Color Depth 8/10/12-bit Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0... -
Page 7: Operation Controls And Functions
BZBGEAR BG-8K-DA14A PRODUCT MANUAL Operation Controls and Functions Front Panel Rear Panel Name Function Description POWER LED When the device is powered on the blue LED will illuminate. IN LED When the HDMI IN port connects an active source device the blue LED will illuminate. -
Page 8: Application Diagram
BZBGEAR BG-8K-DA14A PRODUCT MANUAL Application Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 9: Tech Support
BZBGEAR BG-8K-DA14A PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 10: Warranty
BZBGEAR BG-8K-DA14A PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 11: Mission Statement
BZBGEAR BG-8K-DA14A PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 12: Copyright
BZBGEAR BG-8K-DA14A PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
