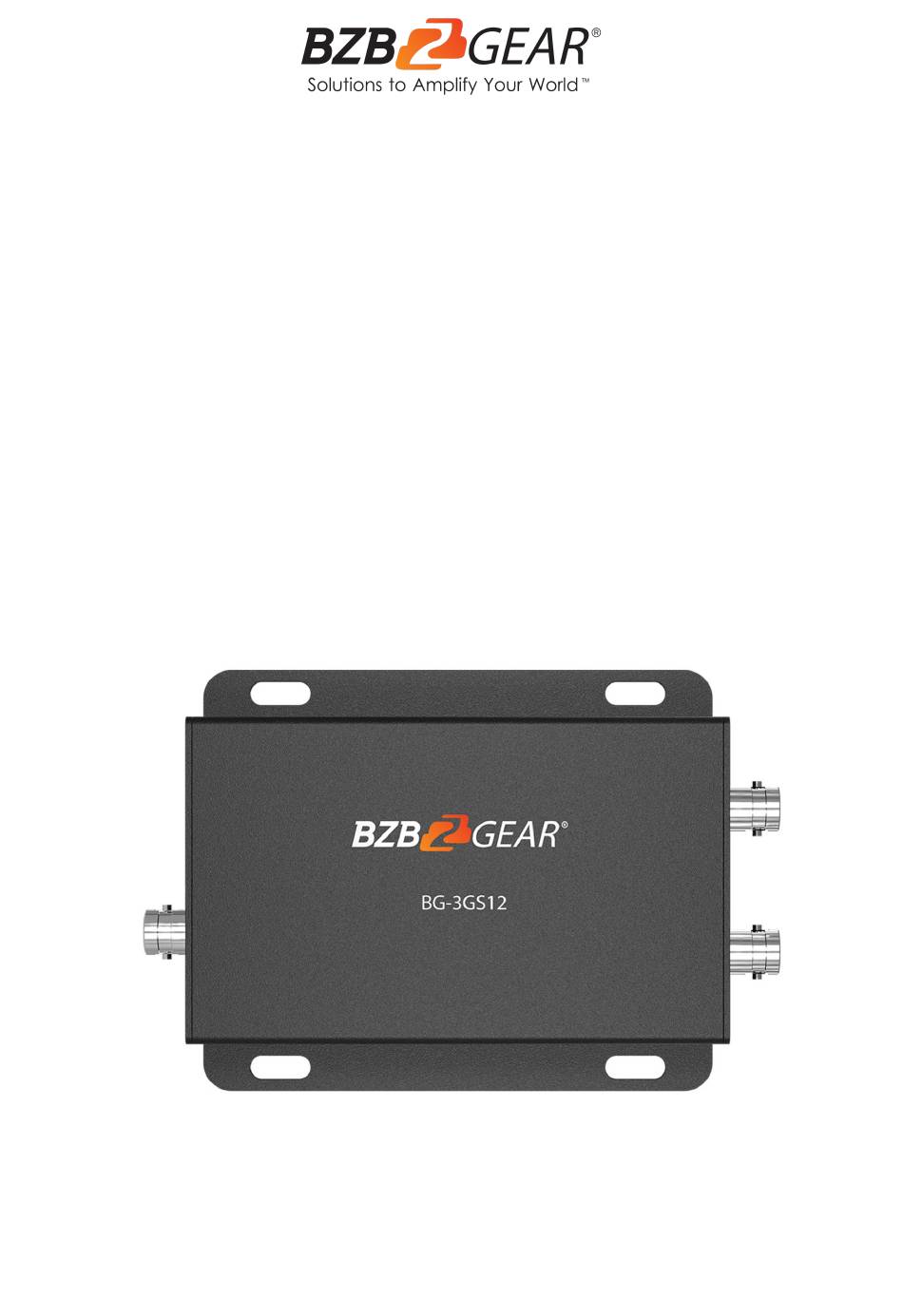

- Page 1 BG-3GS12 SDI 1x2 Splitter User Manual...
- Page 2 BZBGEAR BG-3GS12 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-3GS12 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Connection and Operation Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-3GS12 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-3GS12 is a 1x2 3G-SDI splitter that splits one SDI input to two SDI outputs simultaneously. With a signal relocking feature, it also extends a video signal for long distances. This reliable and powerful tool provides consistent connections in a variety of different scenarios, such as adding a second output for monitoring video feeds on a... -
Page 6: Specifications
BZBGEAR BG-3GS12 PRODUCT MANUAL Specifications Signal Input/Output Input Connector 1x SDI BNC Male Output Connector 2x SDI BNC Male SDI Cable Distance (RG59 cable) 3G Mode Up to 80m (263ft) HD Mode Up to 120m (394ft) SD Mode Up to 200m (656ft) -
Page 7: Connection And Operation
● SDI Output: Connects with SDI monitor or another SDI device. Application Example 1. Connect the BG-3GS12 to power. 2. Connect the SDI cable to signal “SDI IN” from the source device. 3. Connect the SDI cable from “SDI OUT” to a SDI display or another SDI device. -
Page 8: Tech Support
BZBGEAR BG-3GS12 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,...
