BZB Gear BG-3GSH Quick Installation Manual

BG-3GSH

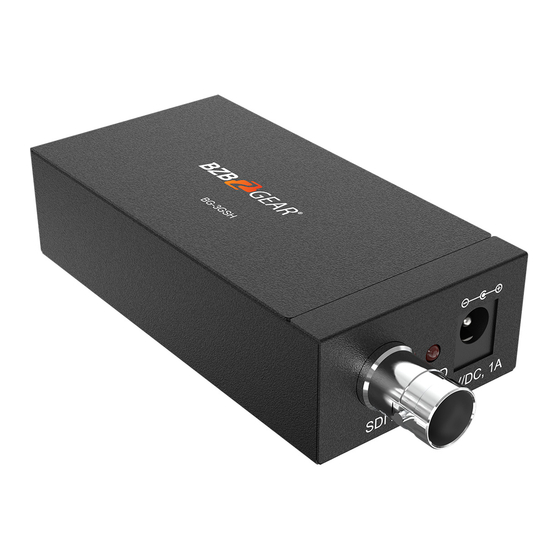

MINI 3G SDI to HDMI Converter
Quick Installation Guide

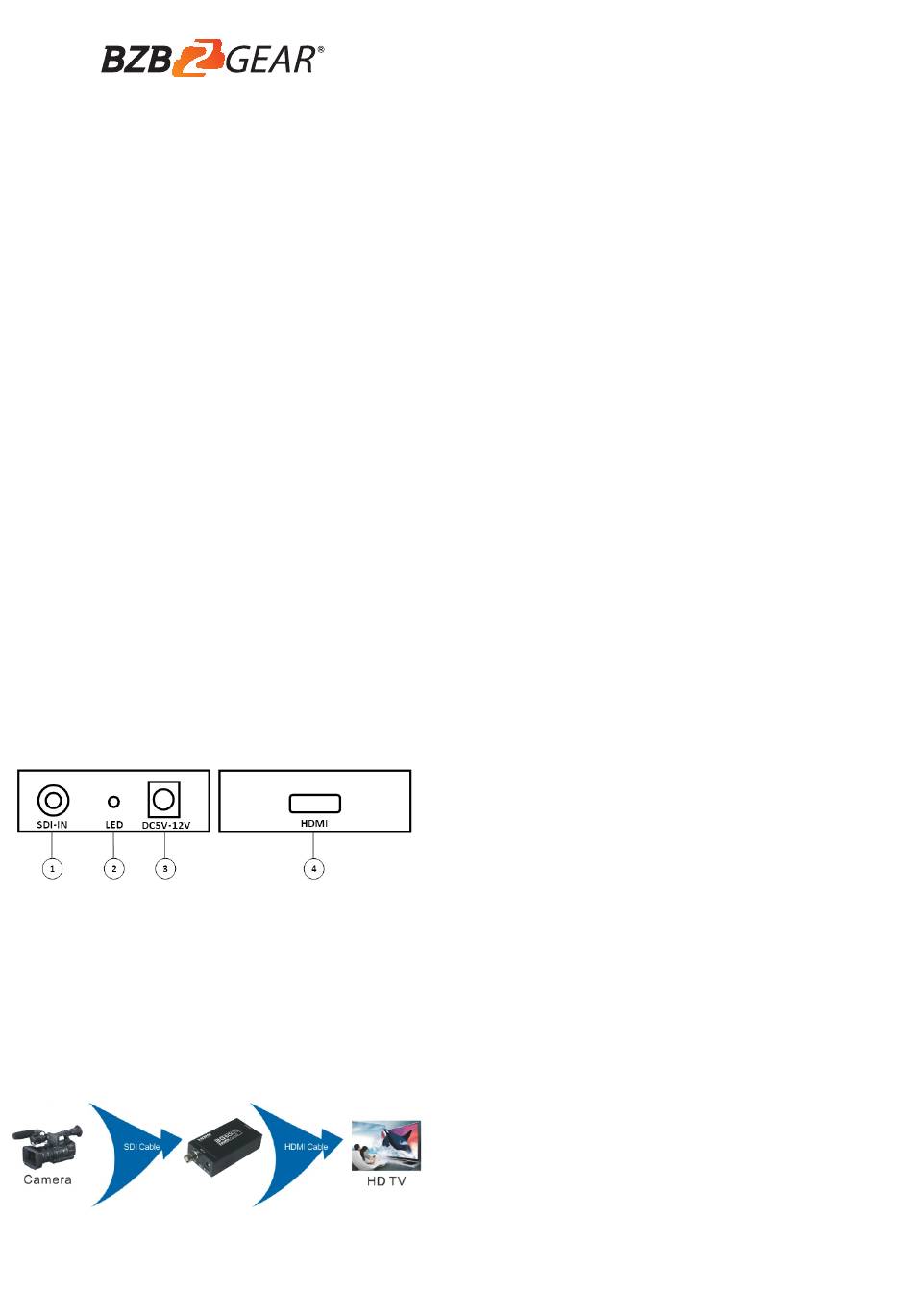

CONNECTION AND OPERATION:
1. SDI IN: Connect the SDI source output.
2. POWER LED: This red LED illuminates when the device is conne c ted with
the power supply.
3. HDMI OUT: Connect the HDMI display with an HDMI cable.
4. DC IN: Port for the 5V-12V DC power supply.
CONNECTION DIAGRAM:
INTRODUCTION:
The MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals
to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to
give you fast signal transmission without any loss. For professionals this
means that it is now easier to distribute and extend your 3G SDI signal while
giving you the ability to display your work on HDMI displays thanks to the
built-in HDMI converter.
FEATURES:
• Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
• Equalized and re-clocked loop output Integrated audio de-embedder for a
maximum of 8 channel, 48 KHz Audio
• Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2
10-bit
• Connect with other units to extend your signal over long distances
PACKAGE CONTENTS:
● 1× 3G SDI to HDMI Converter
● 1x 5V DC Power Supply Adaptor
● 1× User Manual
1
SPECIFICATIONS:
Input Port:
Output Port:
SDI Transmission Rates:
In/Output Resolution:
1080p@23.97/24/25/29.97/30/50/59.94/60
Power Supply:
ESD Protection Human body model:
±4kV (contact discharge)
Dimension:
Weight:
Operating Temperature:
Storage Temperature:
Relative Humidity:
Power Consumption (Max):
3
1 x BNC (SDI/HD-SDI/3G-SDI)
1 x HDMI
2.970 Gbit/s and 2.970/1.001 Gbit/s
480i, 576i, 720p@50/59.94,60,1080i@50/59.94/60
DC 5V -12V
±8kV (air-gap discharge)
80mm x 41mm x 25 mm
150g
0°C ~ 40°C / 32°F ~ 104°F
-20°C ~ 60°C / -4°F ~ 140°F
20 ~ 90% RH (Non-condensing)
5W
