BG-3GSH
Mini 3G-SDI to HDMI Converter
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-3GSH and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-3GSH

Summary of Contents for BZB Gear BG-3GSH

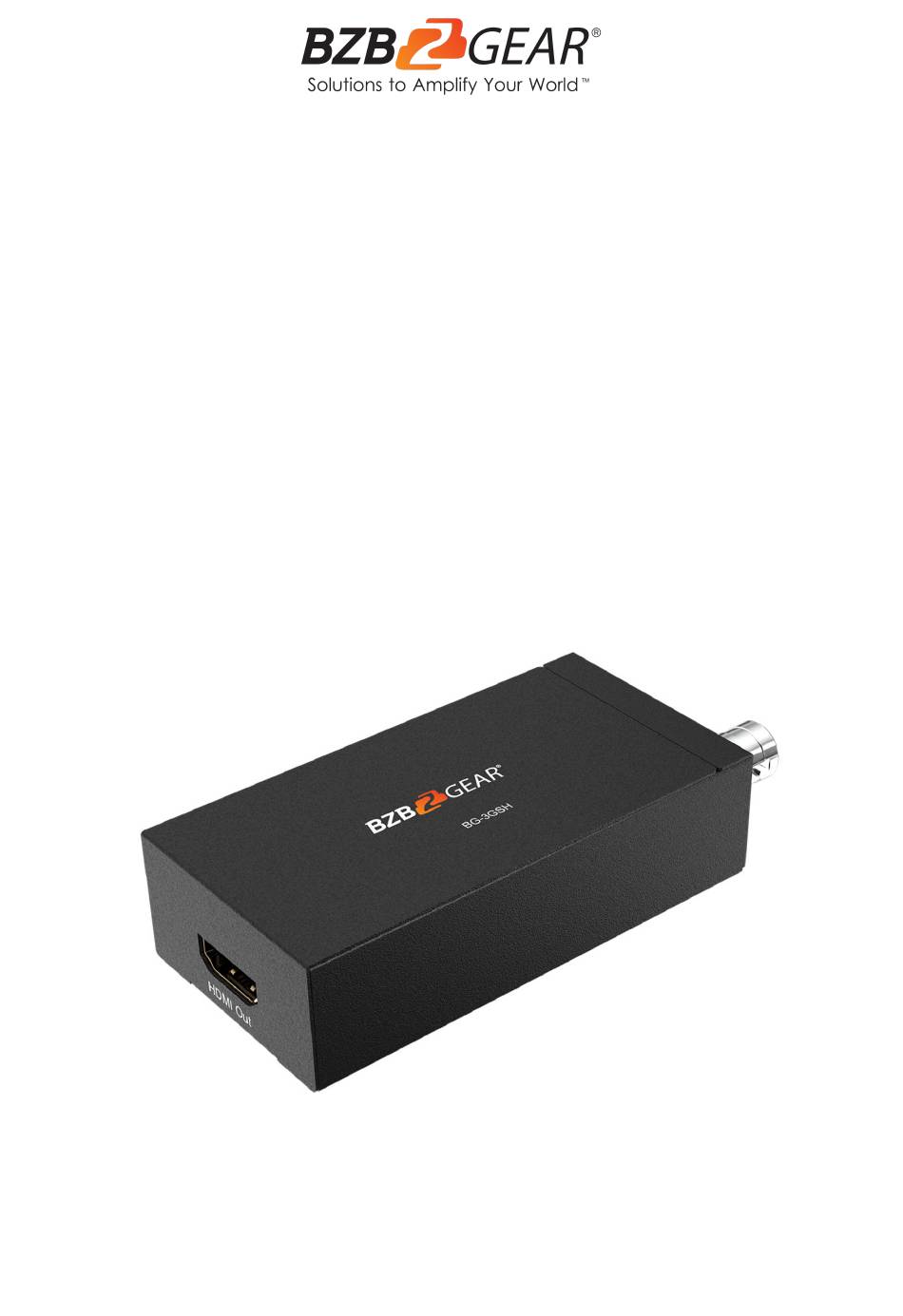

  • Page 1 BG-3GSH Mini 3G-SDI to HDMI Converter User Manual...
  • Page 2 BZBGEAR BG-3GSH PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-3GSH PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Connection and Operation Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 4: Statement

    BZBGEAR BG-3GSH PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    PRODUCT MANUAL Introduction The BG-3GSH converts SD-SDI, HD-SDI, and 3G-SDI signals to the more widely used HDMI interface. The unit is capable of a high bit rate of 2.970 Gbit/s and signal transmission without any loss ensuring a crystal clear 1080p@60 image for HDMI displays. For...

  • Page 6: Specifications

    BZBGEAR BG-3GSH PRODUCT MANUAL Specifications Input Port 1 x BNC (SDI/HD-SDI/3G-SDI) Output Port 1 x HDMI SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s 480i, 576i, 720p@50/59.94,60,1080i @50/59.94/60 Input and Output Resolutions 1080p@23.97/24/25/29.97/30/50/59.94/60 Power Supply DC 5V -12V ESD Protection Human Body ±8kV (air-gap discharge)

  • Page 7: Connection And Operation

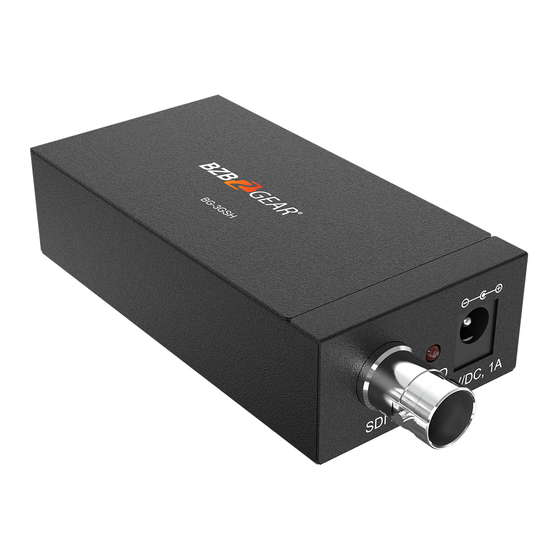

    BZBGEAR BG-3GSH PRODUCT MANUAL Connection and Operation 1. SDI IN: Connect to a SDI source 2. Power LED: LED is illuminated RED when the device is connected to power. 3. DC IN: Power port for the included 5V DC power supply.

  • Page 8: Tech Support

    BZBGEAR BG-3GSH PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,...
