Related Manuals for BZB Gear BG-UHD-DA2X8
Summary of Contents for BZB Gear BG-UHD-DA2X8

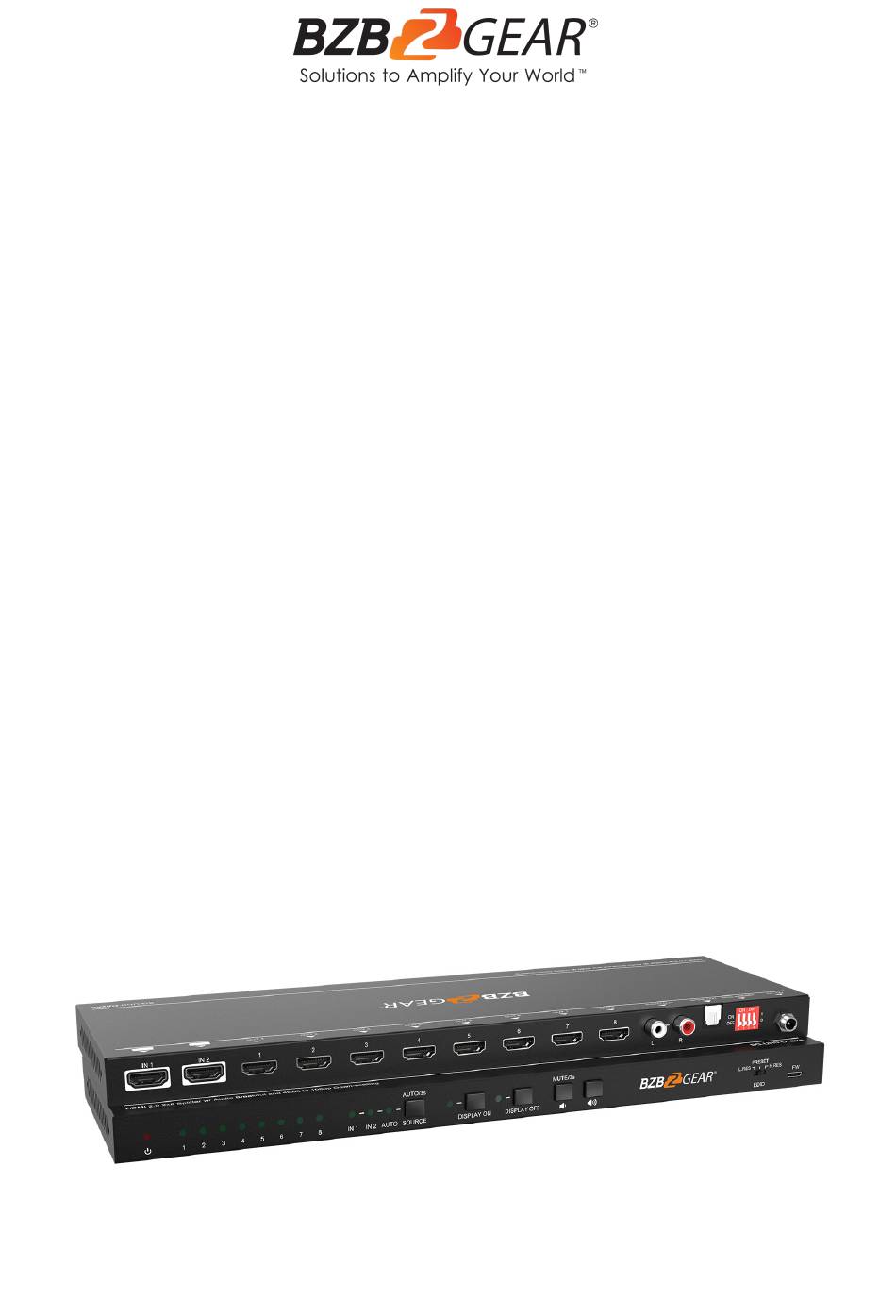

- Page 1 BG-UHD-DA2X8 2X8 4K 18Gbps UHD HDMI Splitter/Distribution Amplifier with Downscaling/Audio Extraction and CEC Control User Manual...
- Page 2 BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions EDID Management Video Resolution Down-scaling Firmware Upgrade Application Example Troubleshooting and Maintenance Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precautions ● Unpack the equipment carefully and save the original box and packing material for possible future shipment. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-UHD-DA2X8 is an HDMI 2.0 2x8 splitter that can distribute either of the two HDMI inputs to eight outputs. The splitter supports HDMI video resolutions up to 4K@60Hz 4:4:4, 1080p 3D, and multichannel audio formats. In addition to passing EDID information from the display, there are multiple built-in EDID settings that can be selected by the 4-pin DIP switches on the rear panel. -
Page 6: Specifications
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Specifications Video Input Input (2) HDMI Input Connector (2) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version Supported Video Output Output (8) HDMI Output Connector (8) Female type-A HDMI... -
Page 7: Operation Controls And Functions
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Operation Controls and Functions Front Panel 1. POWER LED: The LED illuminates red when power is connected. 2. OUTPUT LEDs: The LED illuminates green when there is an HDMI output on the corresponding channel. 3. SOURCE Button and LEDs: ●... - Page 8 BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Rear Panel 10. INPUTS: Two type-A female HDMI input ports to connect HDMI sources. 11. OUTPUTS: Eight type-A female HDMI output ports to connect HDMI displays. 12. AUDIO OUT: RCA jack for stereo analog audio output.
-
Page 9: Edid Management
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Since displays with different capabilities can be connected to the splitter, the 3-pin DIP switch on the front panel and the 4-pin DIP switch on the rear panel can be used in combination to set the EDID to a fixed value to ensure compatibility of... -
Page 10: Video Resolution Downscaling
Video Resolution Downscaling The BG-UHD-DA2X8 supports video resolution downscaling. This means a 4K input can be automatically degraded to 1080P output for compatibility with 1080P displays. Compatibility is shown in the chart below:... -
Page 11: Firmware Upgrade
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Firmware Upgrade Please follow the steps below to upgrade the firmware via the Micro-USB port: 1. Connect the splitter to the PC with a USB cable. 2. Power on the splitter, and then the PC will automatically detect a U-disk named “BOOTDISK”. -
Page 12: Troubleshooting And Maintenance
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Troubleshooting and Maintenance Problem Potential Causes Solutions Check whether the cables are Color loss or no video signal output in The connecting cables may not be connected correctly and in working HDMI display. connected correctly or may be broken. -
Page 13: Tech Support
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 14: Warranty
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 15: Mission Statement
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 16: Copyright
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
