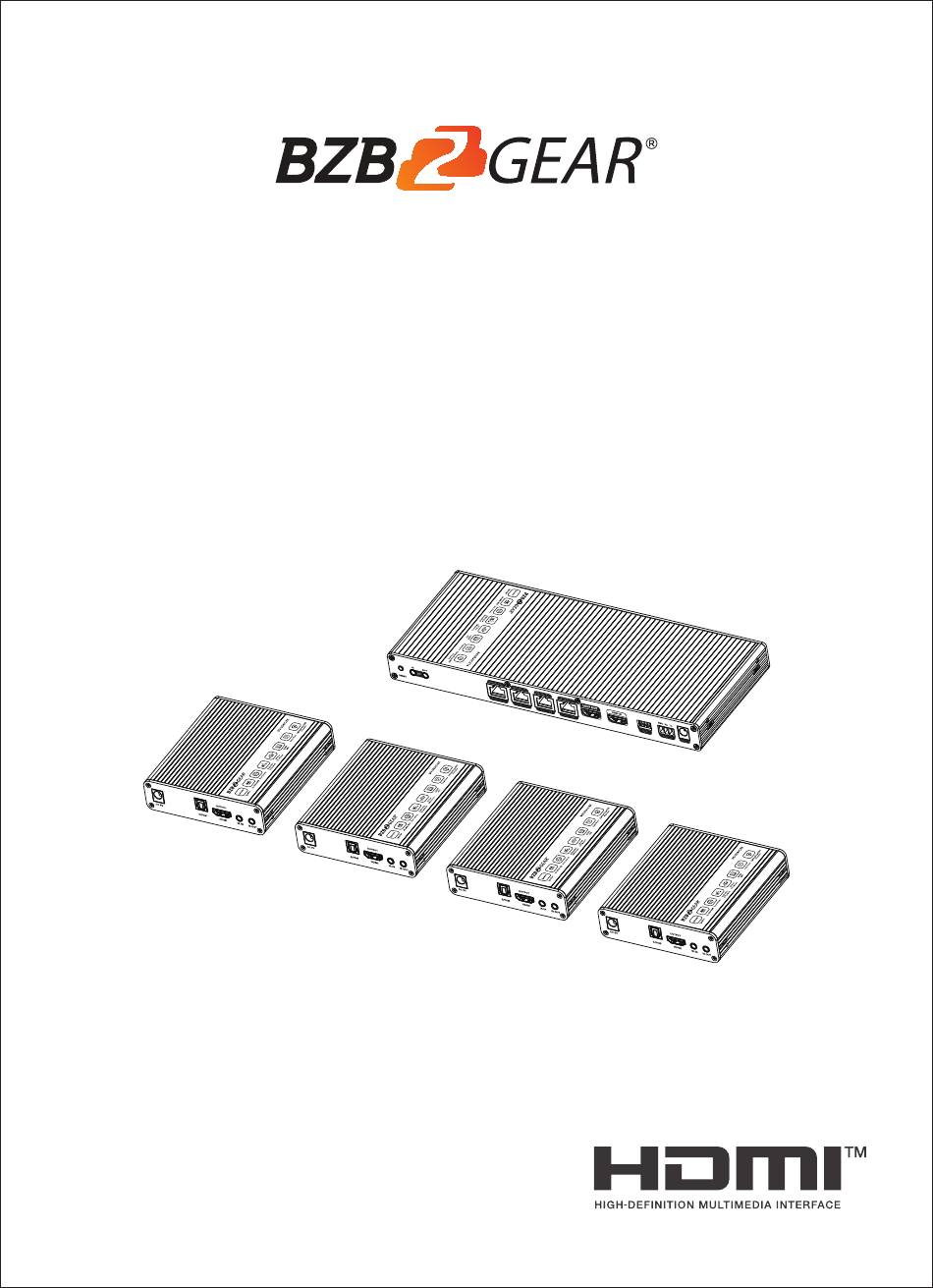

- Page 1 BG-UDAIC-E14 1x4 HDMI Splitter with Extender User Manual CONTACT 1.888.499.9906 | support@bzbgear.com | bzbgear.com...
-
Page 2: Important Safety Notice
· Introduction The BG-UDAIC-E14 is an extender splitter kit that distributes 1 HDMI input to 4 HDMI outputs and extends these signals up to 70 meters. The kit features resolution up to 4K60Hz, bi-directional IR passback, and RS232 control. - Page 3 · Package Contents HDMI splitter extender HDMI splitter extender User manual TX x1pcs RX x4pcs x1pcs DC12V/2A x1pcs DC5V/2A x4pcs Terminal block (RS-232) x1pcs IR blaster extension IR Receiver extension Mounting brackets cable x1pcs cable x4pcs x20pcs Screw x40pcs · Installation Requirements 1.
- Page 4 · Panel Description Transmitter (TX) ① Power indicator The blue light will illuminate when powered on ② Reset button Restarts the device ③ IR in Connects using an IR receiver extension cable ④ IR out Connects using an IR blaster extension cable ⑤...
- Page 5 Receiver (RX) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ① Reset button Restarts the device ② Audio switch Choose the audio source (output from the S/PDIF port) S/PDIF: From the source device ARC: From the TV (receiver end) ③...
- Page 6 · Installation Procedures 1. Network cable Follow the IEEE-568B standards: 1-Orange/white 2-Orange 3-Green/white 4-Blue 5-Blue/white 6-Green 7-Brown/white 8-Brown 2. Connection Video Source HDMI OUT HDMI Display HDMI IN Network able HDMI OUT HDMI Display HDMI OUT HDMI Display HDMI OUT HDMI Display HDMI Display...
-
Page 7: Function Setting
3. Connection instructions 1) Connect the source device to the transmitter's HDMI IN port using an HDMI cable. 2) Connect the transmitter's CAT6 OUT port to the receiver's CAT6 IN port using network cables. 3) Connect the receiver's HDMI OUTPUT port to the display devices using HDMI cables. - Page 8 Control Commands Function Descriptions Turn on the network signal output port(s), choose from “01” to “04” (the network ES XX On/n ports from right to left are: 01, 02, 03, 04.); “All” means all four ports Turn off the network signal output port(s), choose from “01”...
- Page 9 2. EDID settings: The transmitter has 16 built-in EDID settings that can be configured using the DIP switch. Flipping the DIP switch upward indicates a “1” and flipping downward indicates a “0.” Switch Status EDID Information 4K@60Hz 2CH 4K@60Hz 5.1CH 4K@60Hz 7.1CH 4K@60Hz HDR 7.1CH 4K@30Hz 2CH...
- Page 10 · FAQ Q: Why does my display device not have an image? 1) Check the power supply and all cables and ensure they are properly connected. 2) Check if the HDMI signal input is detected. 3) Check the corresponding network output and ensure it has not been turned off by the RS-232 command.
-
Page 11: Specification
· Technical Parameters Item Specification Transport protocol ipcolor Split mode 1 IN 4 OUT CAT6/6A/7≤70m Transmission Distance HDMI signal HDMI 2.0, HDCP2.2 480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz, 720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz, 1280x960,1280x800,1280x768,1680x1050, Resolution 1360x768,1366x768,1600x900,1024x768,800x600, 3840x2160@24/25/30/50/60Hz,4096x2160@24/25Hz Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1 Bi-directional IR passback (20-60khz) RS-232 3-pin: TxD-RxD-GND, follows RS-232 levels Working Temperature -20~60℃... -
Page 12: Warranty
Tech Support Before contacting tech support, we may have answered your question already! Visit our BZBGEAR support page at bzbgear.com/support for valuable information on our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) consisting of tutorials, quick start guides, and step-by-step troubleshooting instructions.
