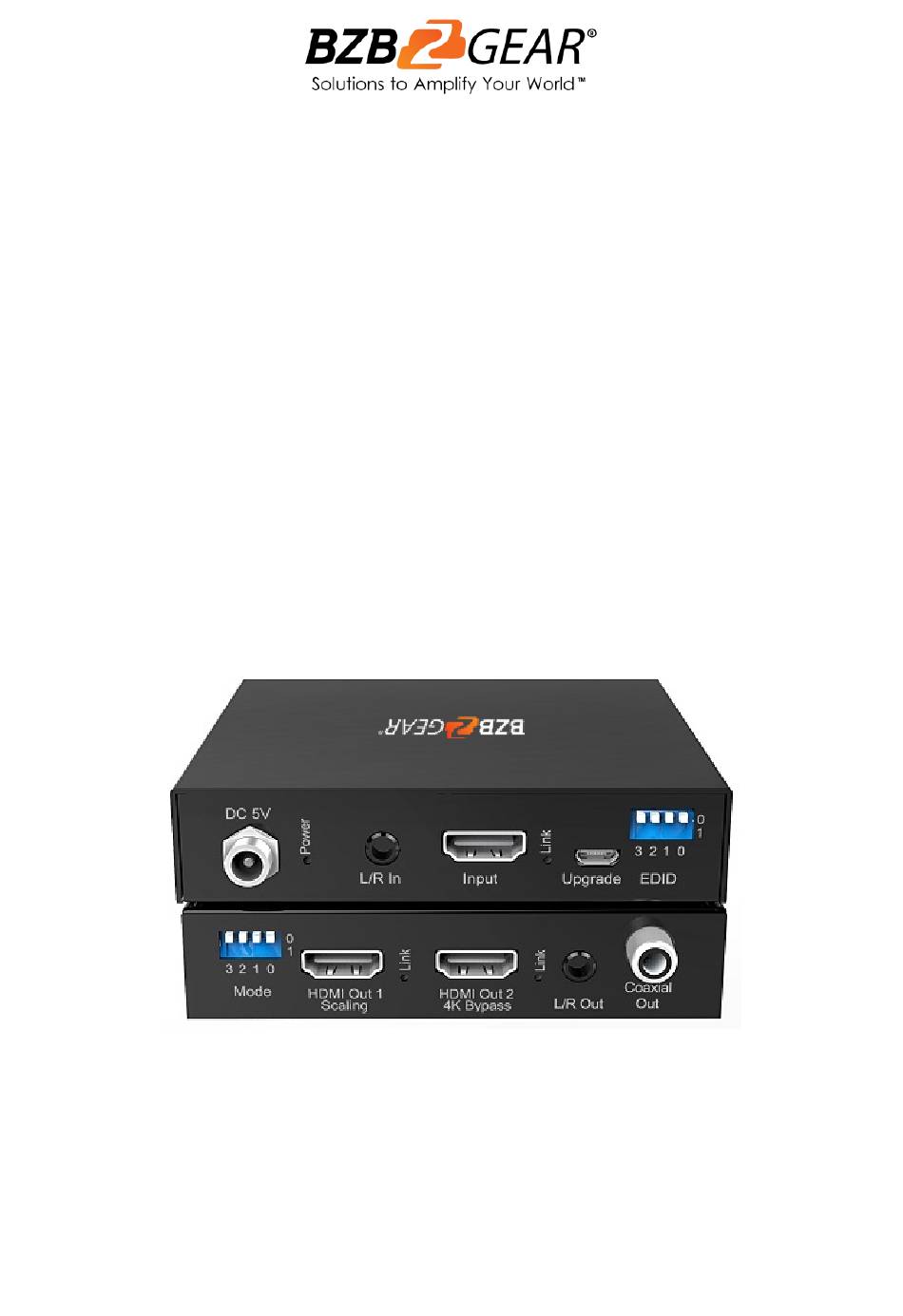

- Page 1 BG-UHD-SC1X2 4K/18G 1x2 HDMI Splitter Scaler w/ Audio User Manual...
- Page 2 BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Panel Descriptions Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL Introduction The BG-UHD-SC1X2 is a 4K/18G HDMI splitter with in-built scaler, designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions. The BG-UHD-SC1X2 supports down-scaling of 4K video to a fixed resolution of 1080p or to a lower color gamut if the... -
Page 6: Specifications
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL Specifications Bandwidth 18Gbps Video Input Connectors 1x HDMI Type A, 19-pin, female Audio Input Connectors 1x 3.5mm stereo jack (L/R) Video Output Connectors 1x HDMI Type A, 19-pin, female Audio Output Connectors 1x 3.5mm stereo jack (L/R) -
Page 7: Application Example
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL DIP switcher* EDID management HDMI output 1 Scaled video output, connect to HDMI sink device HDMI output 1 LED indicator Lit when detecting an active HDMI connection to a sink device HDMI output 2 Bypass video output, connect to HDMI sink device... -
Page 8: Tech Support
BZBGEAR BG-UHD-SC1X2 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,...
