BZB Gear BG-SAVS User Manual

H.265/ h.264 sdi streaming encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

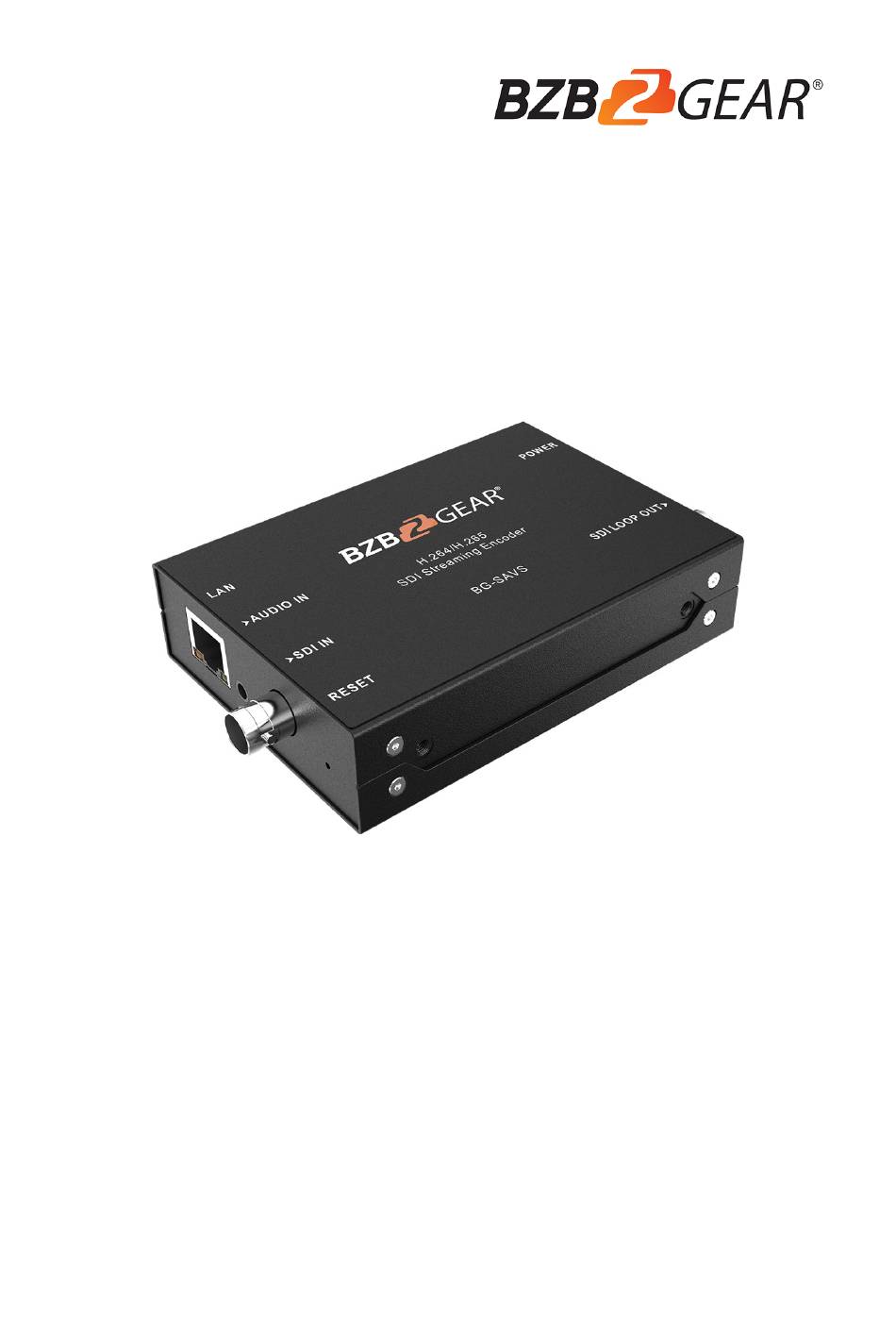

BG-SAVS
H.265/ H.264 SDI
STREAMING ENCODER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-SAVS and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-SAVS

Summary of Contents for BZB Gear BG-SAVS

  • Page 1 BG-SAVS H.265/ H.264 SDI STREAMING ENCODER USER MANUAL...
  • Page 2 USING THE UNIT SAFELY Before using this unit, please read the below warnings and precautions which provide important information concerning the proper operation of the unit. To assure you have gained a good grasp of every feature of your new unit, read the entire manual. This manual should be saved and kept on hand for future reference.

  • Page 3: Table Of Contents

    CONTENTS BRIEF INTRODUCTION ......................1 Overview ..........................1 1.1. Main Features ........................1 1.2. Interfaces ..........................1 1.3. SPECIFICATIONS ........................2 OPERATIONS GUIDE ......................2 Network Configuration and Login ..................2 3.1. Management Web Page ..................... 3 3.2. Language Settings ......................3 3.2.1.

  • Page 4: Brief Introduction

    1. BRIEF INTRODUCTION 1.1. Overview BG-SAVS is an HD audio and video encoder that encodes and compresses SDI video and audio sources into IP stream, and then transmits it to streaming media servers via network IP address to broadcast live on platforms like Facebook, YouTube, Ustream, Twitch, and Wowza.

  • Page 5: Specifications

    2. SPECIFICATIONS CONNECTIONS Video Input: SDI Type A ×1; Loop Out: SDI Type A ×1 Analog Audio 3.5mm line in ×1 Network RJ-45×1(100/1000Mbps self-adaptive Ethernet) STANDARDS 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 50/59.94/60, SDI In Format Support 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60 Video Coding H.265/ H.264 Video Bitrate...

  • Page 6: Management Web Page

    page for setting up. The default Username is admin, and password is admin. 3.2. Management Web Page The encoding settings can be set on the encoder management web page. 3.2.1. Language Settings There are languages of Chinese (中文), Japanese (日本語) and English as options on the top-right corner of the encoder management web page.

  • Page 7: Network Settings

    3.2.3. Network Settings The network can be set to dynamic IP (DHCP Enable) or static IP (DHCP Disable). The default IP information can be checked in Part 3.1. 3.2.4. Main Stream Settings The main stream can be set to mirror image and upside-down image from MAIN PARAMETER tab.

  • Page 9: Sub Stream Settings

    3.2.5. Sub Stream Settings Configure sub stream network protocol RTMP/ HTTP/ RTSP/ UNICAST/ MULTICAST/ RTP/ SRT accordingly. Please note that only one of HTTP/ RTSP/ UNICAST/ MULTICAST/ RTP can be enabled at a time.

  • Page 11: Audio And Extension

    3.2.6. Audio and Extension 3.2.6.1. Audio Settings The encoder supports audio embedding from the external analog input. The audio can be from SDI embedded audio or analog Line in audio. Audio Encode Mode can be ACC/ MP3/ MP2. 3.2.6.2. OSD Overlay The encoder can insert logos and text to the Main Stream / Sub Stream video at the same time.

  • Page 12: Color Control

    3.2.6.3. Color Control User can adjust the brightness, contrast, hue, and saturation of the streaming video through the web page. 3.2.6.4. ONVIF Settings Settings of ONVIF are below: 3.2.6.5. System Settings User can set the encoder reboot after 0-200 hours for some applications.

  • Page 13: Live Stream Configuration

    The default password is admin. User can set new password through below web page. The firmware version information can be checked on the web page as below. Upgrade new firmware through the web page as below. Please note: DO NOT turn off the power and refresh web page when upgrading.
  • Page 14 Step 3. Enter the stream URL and stream key in the RTMP URL, and connect them with ”/”. For example, the stream URL is “rtmp://a.rtmp.youtube.com/live2”. The Stream key is “acbsddjfheruifghi”. Then the RTMP URL will be “Stream URL” + “/” + “Stream Key”: “rtmp://a.rtmp.youtube.com/live2/acbsddjfheruifghi”.

  • Page 15: Tech Support

    5. TECH SUPPORT Before contacting tech support, we may have answered your question already! Visit our BZBGEAR support page at bzbgear.com/support for valuable information on our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) consisting of tutorials, quick start guides, and step-by-step troubleshooting instructions. Also visit our YouTube channel BZB TV at youtube.com/c/BZBTVchannel for help setting up, connecting,...
