- Page 1 BG-UHD-VW2X2 2x2 VIDEO WALL WITH LOOP OUT Quick Installation Guide...
- Page 2 ● Controllable via front-panel buttons, IR and RS232 control ● Support HDMI Local loop out ● Metal housing ● Plug and play PACKAGE CONTENTS: ● 1x BG-UHD-VW2X2 ● 1x DC Power Supply ● 1x Remote control ● 1x User Manual ● 1x Phoenix plugs for RS232 cable termination...
- Page 3 CONNECTION DIAGRAM: HDMI Source PS4,PC,STB, Blu-ray DVD player, etc. RS232 Equipped PC or Notebook HDMI In DC 12V/2A Power Input R/L Audio Cable Speaker...

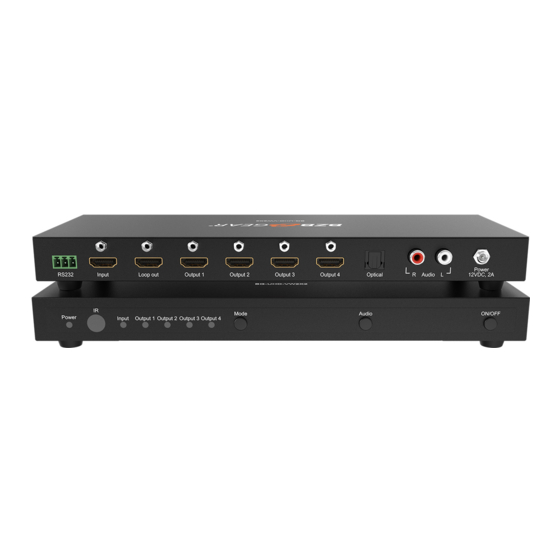

- Page 4 PRODUCT OVERVIEW: Front Panel: Mode Audio ON/OFF Power Input output 1 output 2 output 3 output 4 ⑦ ① ② ③ ④ ⑤ ⑥ ①Power LED indicator: The LED will illuminate when the power is turned on ②Remote control sensor ③HDMI input LED indicator ④HDMI output LED indicator ⑤Mode switch: Press the “Mode”...
- Page 5 REMOTE CONTROL: ① ⑤ ② ③ ⑥ Audio ① ② ④ ⑦ ③ ④ ⑤ ① ON\OFF: Power ON\OFF. ② RST: Restore Factory Defaults. ③ Change the Output port order. ④ Audio: Switch the audio output from L\R or Optical. ⑤...
- Page 6 OUTPUT MODE: 1x2(H) 1x3(H) 1x4(H) 2x1(V) 3x1(V) 4x1(V) SPECIFICATIONS: Video and Audio Input: Up to 4k@60Hz 4:4:4 Loop Out: Up to 4k@60Hz 4:4:4 HDMI resolution Video wall Output: Up to1080p@60Hz HDMI2.0, HDCP2.2 HDMI version 36-bit Deep Color all channels maximum Support video color format HDMI: PCM 2CH Toslink: PCM 2CH...
- Page 7 WARRANTY: BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1.
