BZB Gear BG-H3GS Quick Installation Manual

BG-H3GS
MINI 3G HDMI to SDI Converter
Quick Installation Guide

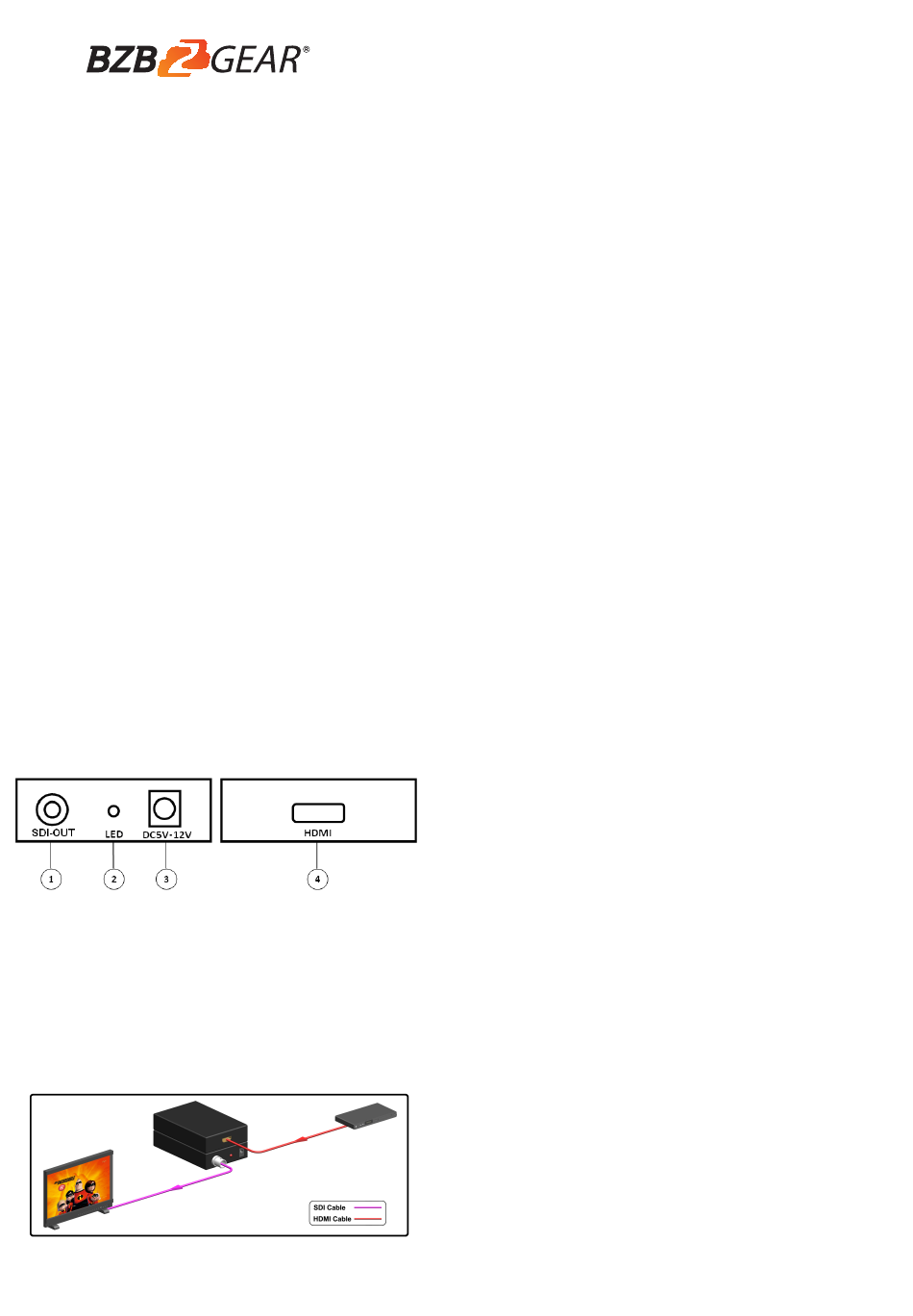

CONNECTION AND OPERATION:
SDI-OUT: Connect the SDI display with a coaxial cable.
POWER LED: This red LED illuminates when the device is connected with
the power supply.
DC IN: Port for the 5V-12V DC power supply.
HDMI IN: Connect the HDMI source with an HDMI cable.
CONNECTION DIAGRAM:
INTRODUCTION:
The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI
display while ensuring high bit rates of 2.970 Gbit/s to give you high
resolution signal without any loss. For professionals this means that it is now
easier to convert your high def HDMI signal with audio to SDI for long
distance transmission and display your work on SDI display.
FEATURES:
• Shows HDMI source on SDI display.
• SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485
Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
• Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60,
1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
• Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or
1.485/1.001 Gbit/s)
• 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and
2.970/1.001 Gbit/s)
• Supports SDI output distance up to 100 meters (3G-SDI), 200 meters
(HD-SDI), or 300 meters (SD-SDI)
PACKAGE CONTENTS:
● 1× 3G HDMI to SDI Converter
● 1x 5V1A DC Power Supply Adaptor
● 1× User Manual
1
SPECIFICATIONS:
Input Port:
Output Port:
SDI Transmission Rates:
In/Output Resolution:
1080p@23.97/24/25/29.97/30/50/59.94/60
Power Supply:
ESD Protection Human body model:
±4kV (contact discharge)
Dimension:
Weight:
Operating Temperature:
Storage Temperature:
Relative Humidity:
Power Consumption (Max):
3
1 x HDMI
1 x BNC (SDI/HD-SDI/3G-SDI)
2.970 Gbit/s and 2.970/1.001 Gbit/s
480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60
DC 5V -12V
±8kV (air-gap discharge) ,
80mm x 41mm x 25 mm
150g
0°C ~ 40°C / 32°F ~ 104°F
-20°C ~ 60°C / -4°F ~ 140°F
20 ~ 90% RH (Non-condensing)
5W
