Summary of Contents for Rydeen MV432T

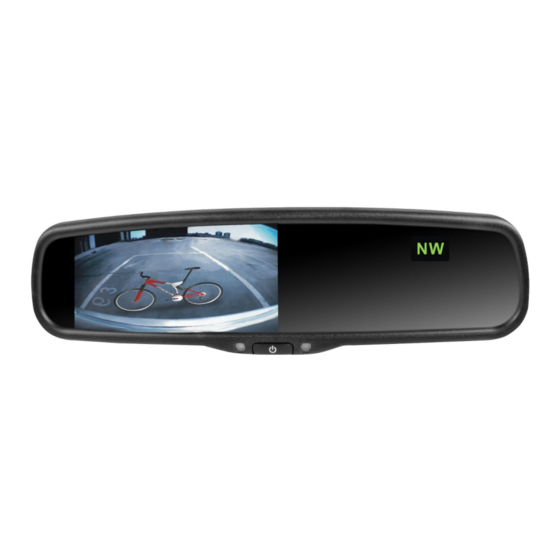

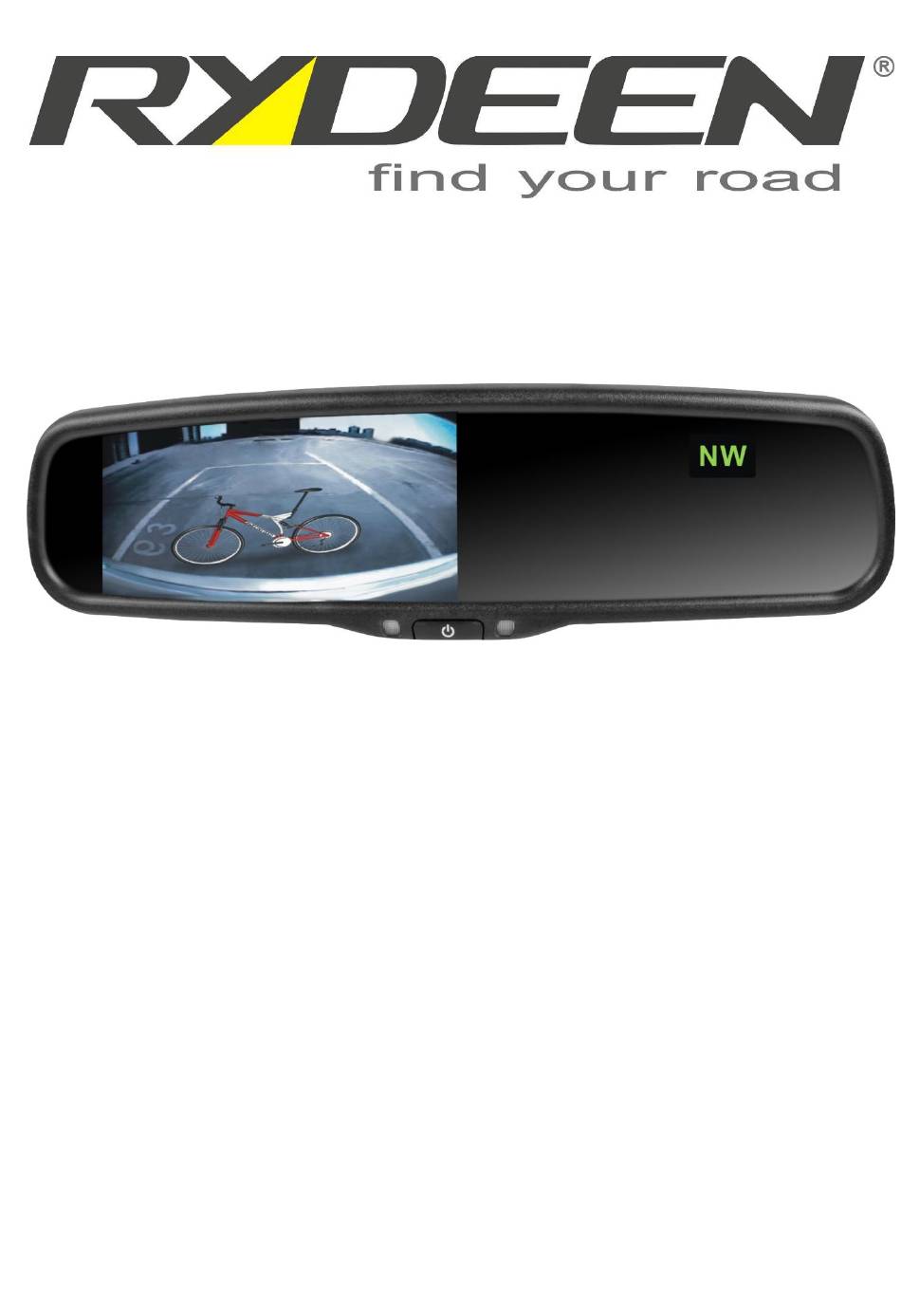

- Page 1 Owner’s Manual MV432T Replacement Mirror Monitor System with Temperature & Compass Display V2.0...
- Page 2 PROFESSIONAL INSTALLATION BY AUTHORIZED RYDEEN RETAILER REQUIRED TO BE COVERED UNDER WARRANTY. Dropping your MV432T unit or subjecting it to excessive shock and vibrations as this may cause it to malfunction and is not covered by warranty. ...
- Page 3 also be necessary to remove the sun visor and maybe even the overhead console in order to freely route the power harness from the knee bolster to the mirror connector). Important! Make sure to route the wire behind the airbag for safety precaution. 4) Install the Exterior Temperature Sensor (longer sensor wire) at Front grill (away from the Engine heat) 5) Install the Interior Temperature Sensor (shorter sensor wire) away from the A/C...
- Page 4 3. Setup 1) Turn Ignition ON 2) Parking lines on mirror will turn ON 3) If AUX video 1 source was connected (turn video source ON then press PWR button on mirror and the image should appear on screen) 4) Shift vehicle into reverse, the camera image will appear on the screen 5) Shift vehicle out of reverse and the camera image will disappear and go back to its previous stage 6) Press the key...
- Page 5 Manual Compass Calibration “H-” Press once to adjust Compass(﹣25° ～﹢25° ) Find out the magnetic declination of the certain area. Automatic Compass Calibration “A-“ Hold for 3 seconds to save the previous setting then enters the Automatic Compass Calibration “A-“. The mirror will start counting from 0-200 Starting from 20 seconds, put the vehicle in drive and drive the vehicle less than 5MPH going counter clockwise.
- Page 6 ON/OFF temperature/compass display Press and Hold key for 6 seconds to enter settings 5. Removable Mount Structure MV432T is equipped with the removable mounting stem structure, which allows to exchange with the following available ball joint mounting stems.
- Page 7 A: Connect the Green jumper at the camera harness to turn the parking line feature OFF. 7. Technical Support Contact Info If you have other questions about the RYDEEN MV432T, please contact your retailer or Technical Support: Telephone: 1-877-777-8811 (within USA only) ...
- Page 8 (MV432T) only to the original purchaser as described by the following: Warranty Period Rydeen warrants this product for a period of one (1) year from the original purchase date. Warranty Coverage This warranty covers all defects in material and workmanship except as specified below.
