FRYERS 油炸锅

Henny Penny Corp.

Low Oil Volume Fryer – Electric

LVE-102; LVE-103; LVE-104

对照索引（可选）

Cross reference (optional)

Daily maintenance tasks 日常维

护工作

FR 01D01

Maintenance Filter

维修过滤器

FR 01D02

Change Filter Pad

更换过滤垫

Weekly maintenance tasks 每周

FR 01W01

Clean Behind

Fryer 清洁油炸锅

背部

Quarterly maintenance tasks 季度

性维护工作

FR 01Q03

Replace Filter

System O-Ring

更换 O 型圈过滤

系统

FR 01Q01

Deep Clean

深度清洁

FM07-241-A-Mandarin

恒鹏（苏州）设备有限公司

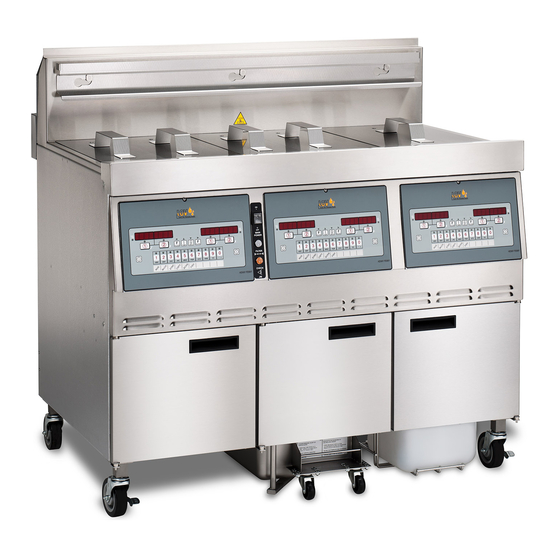

Model LVE-103 型号：LVE-103

A. Filter Drain Pan, B. JIB (Jug-in-Box)

A 过滤泄油盘

Hazards 危险

These icons alert you to a possible risk of personal injury.

此类标识警告操作人员可能存在造成人身伤害的风险。

Equipment alerts 设备警告

Look for this icon to find information about how to avoid damaging the

equipment while doing a procedure.

找出设备上所附的此类标识，以便于知晓如何避免在操作时对设备造成

损害。

Tips 贴士

Look for this icon to find helpful tips about how to do a procedure.

找到此类标识，以便于了解一些对操作有用的小贴士。

低油量电热式炸锅

B JIB（盛油箱）

麦当劳公司定期维修保养手册 2008年1月更新改版

FR 01

Need help?

Do you have a question about the LVE-102 and is the answer not in the manual?

Questions and answers

Summary of Contents for Henny Penny LVE-102

Page 1 FR 01 FRYERS 油炸锅恒鹏（苏州）设备有限公司 Henny Penny Corp. Low Oil Volume Fryer – Electric 低油量电热式炸锅 LVE-102; LVE-103; LVE-104 对照索引（可选） Cross reference (optional) Daily maintenance tasks 日常维 Model LVE-103 型号：LVE-103 护工作 FR 01D01 Maintenance Filter 维修过滤器 FR 01D02 Change Filter Pad 更换过滤垫...
Page 2 油炸锅 FR 01 Maintenance Filter 过滤器维护 Daily 每日 Why 为何原因 Cleans the vat of crumbs and filters the oil thoroughly to prolong the life of the oil 清理碎屑槽，并对油进行彻底过滤以延长其使用寿命； Time required 所需 5 minutes to prepare 15 minutes per vat to complete 需...
Page 3 Maintenance Filter (continued) Check filter pan Press DOWN button 检查过滤盘按下 DOWN 键 Make sure filter drain pan and Press DOWN button and pan cover are properly in display shows 2.MAINT place with filter lock (right) FILTER? 按 DOWN 键，显示器显示 engaged and the filter pipe is tightly connected (left).
Page 4 Maintenance Filter (continued) Lift elements Scrub inside vat 起重元件将槽内擦干净 Once oil has drained, remove Use the scouring tool, a nylon basket support and use lift scouring pad, and a small tool to raise the hinged amount of McD’s Fryer elements from the vat.
Page 5 Maintenance Filter (continued) Washing Rinse again 清洗再冲洗 Lower the elements and then Once completed, the display press √ button for YES and shows RINSE AGAIN?, along with YES NO. If vat is display shows WASHING. not yet clean, press √ for YES Oil is circulated through the vat.
Page 6 Maintenance Filter (continued) Fill vat 向槽内加油 Once the polish cycle is complete, FILL VAT shows in display, along with YES NO. Press √ button for YES and display shows FILLING and the vat fills with oil. 一旦抛光过程结束，显示器将显示 FILL VAT（给槽内加满油）和...
Page 7 Change Filter Pad 更换过滤垫 Daily 每日 FR 01 D02 Why 为何原因 To extend the life of the oil 为延长炸油的使用寿命 Time required 所需 1 minute to prepare 10 minutes to complete 需 1 分钟时间准备需 10 分钟时间完成时间 Time of day 固定时 Beginning of work day For 24-hour restaurants: ??? 工作日开始时...
Page 8 Change Filter Pad 更换过滤垫 Daily 每日 FR 01 D02 Power switch on Remove filter drain pan cover 打开电源开关取下过滤油盘的盖子 Make sure the main power Lift the pan cover from the switch is in the ON position. drain pan. 确认主电源开关在“ON”档位取下泄油盘上的盖子。置。...
Page 9 Change Filter Pad 更换过滤垫 Remove bottom screen Reassemble 取下底板重新组装 Pull the bottom screen from Reassemble in reverse order, pan and clean thoroughly with placing the bottom screen into soap and water. Rinse the filter pan first, followed thoroughly with hot water. by the filter pad, retaining 从泄油盘内取出底板，用肥...
Page 10 Change Filter Pad 更换过滤垫 Push filter drain pan assembly back in place 将泄油盘部件放回原位 Push the filter pan assembly back underneath the fryer, making sure the filter tube makes a good connection and the drain pan stop is engaged. 将油炸锅下的泄油盘部件放至原位，确保滤管都已经连接到位且泄油盘栏板也恢复...
Page 11 Check Filter Drain Pan O-Rings 检查泄油盘 Quarterly 每季 FR 01 Q01 O 型圈 Why 为何原因 To keep oil from leaking from tube 防止炸油从油管里渗出 Time required 所需时间 1 minute to prepare 3 minutes to complete 1 分钟时间准备 3 分钟时间完成 Time of day 固定时制 Beginning of work day For 24-hour restaurants: ??? 工作日开始时...
Page 12 Vat Deep Clean Procedure 槽内深层清洁 Quarterly 每季 FR 01 Q02 程序 Why 为何原因 To thoroughly clean the vat 彻底清洁锅槽 Time required 所需 5 minutes to prepare 1 hour, 15 minutes to complete 需 5 分钟时间准备需 1 小时 15 分钟时间完成时间...
Page 13 Vat Deep Clean Procedure 槽内深层清洁 Quarterly 每季 FR 01 Q02 程序 Put on protective gear Press and hold TEMP and INFO 带上保护装置持续按住 TEMP 和 INFO 鍵 Use all McDonald’s approved Press and hold TEMP safety equipment, including and INFO buttons until apron, face shield and gloves.
Page 14 Vat Deep Clean (continued) 槽内深层清洁（续） Press √ button Oil still in vat 槽内仍旧有油按√键 Press √ button and display If vat still has oil, press X button and display shows “IS shows “OIL RMVD”, along DISPOSAL UNIT IN with “YES NO” PLACE?”...
Page 15 Vat Deep Clean (continued) 槽内深层清洁（续） Disposing Vat Clean 处理锅槽清洗 If “NO” is selected, display Display then shows “VAT shows “INSERT DISPOSAL EMTY”, along with “YES NO”. Press √ button when UNIT” (JIB systems). Once pan/disposal unit is in place ready and display shows press √...
Page 16 Vat Deep Clean (continued) 槽内深层清洁（续） Solution Added Cleaning 增加清洗液清洁 Press √ button display shows Display shows “SOLUTION ADDED?”, along with “CLEANING”, along with a “YES NO”. Mix McD countdown timer. Heat Heavy-Duty Degreaser regulates to 195°F (91°C) for Solution in the vat to be this step for one hour.
Page 17 Vat Deep Clean (continued) 槽内深层清洁（续） Empty Filter Drain Pan Empty Vat 清空泄油盘清空锅槽 Empty filter drain pan of Using a 1/2 gal. (2 liter) internal filtering components pitcher, remove the solution and take the components to a from the vat, pouring it into a sink to be cleaned.
Page 18 Vat Deep Clean (continued) 槽内深层清洁（续） Clean Vat Rinse Vat 3 Times 清洁锅槽对锅槽进行三次冲洗 Once vat is empty, press √ Once vat is clean, press the √ button and display shows button and display shows “SCRUB VAT COMPLETE” “RINSE VAT” and the drain “YES NO”.
Page 19 Vat Deep Clean (continued) 槽内深层清洁（续） Vat Dry Refill vat from bulk 干燥锅槽从 BULK 系统给槽内加油 Press √ button and drain Once vat is completely rinsed, press the √ button and display closes and display shows shows “VAT DRY” “YES “FILL POT FROM BULK”, NO”.
Page 20 Clean Behind Fryer 清洁油炸锅背部油炸锅 FR 01 Weekly 每周 Why 为何原因 To prevent grease build-up and to meet McDonald’s cleanliness standards 防止油脂堆积，符合麦当劳的清洁标准 Time required 所需 5 minutes to prepare 45 minutes to complete 需 5 分钟准备需 45 分钟完成时间 Time of day 固定时...
Page 21 Clean Behind Fryer 清洁油炸锅背部（续） Roll fryer from hood Cleaning Order 清洗顺序将油炸锅从顶盖下拉出 Clean the area behind the fryer in this sequence: Carefully roll the fryer from the hood far enough to get A. Accessible parts of stack B. Back of hood behind the fryer.
Page 22 Clean Behind Fryer 清洁油炸锅背部（续） Wash casters 清洗轮脚 Use nylon brush and hot McD A.P.C. (HCS) to clean casters. 用尼龙刷和麦当劳 A.P.C 热剂清洁炸锅背部所有区域（包括底板）。 Clean Area 洁净区 Use a mop and McD A.P.C. (HCS) to clean area around fryer. 用一块抹布和麦当劳 A.P.C （HCS）剂清洁炸锅四周。...
