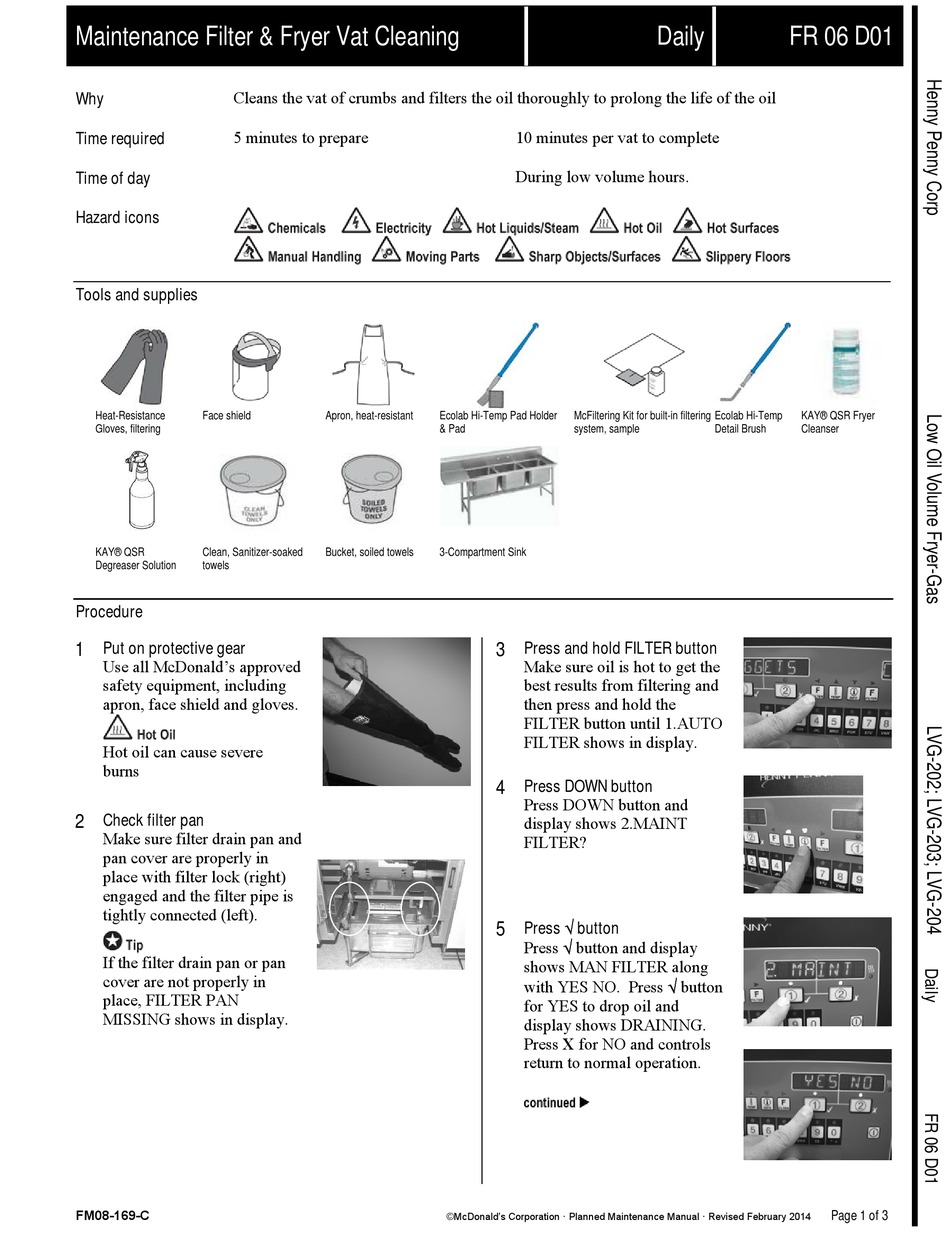

Maintenance Filter & Fryer Vat Cleaning
Why
Cleans the vat of crumbs and filters the oil thoroughly to prolong the life of the oil
5 minutes to prepare
Time required
Time of day
Hazard icons
Tools and supplies
Heat-Resistance
Face shield
Gloves, filtering
KAY® QSR
Clean, Sanitizer-soaked
Degreaser Solution
towels

Procedure

1
Put on protective gear
Use all McDonald's approved
safety equipment, including
apron, face shield and gloves.
Hot oil can cause severe
burns
2
Check filter pan
Make sure filter drain pan and
pan cover are properly in
place with filter lock (right)
engaged and the filter pipe is
tightly connected (left).
If the filter drain pan or pan
cover are not properly in
place, FILTER PAN
MISSING shows in display.
FM08-169-C
Apron, heat-resistant
Ecolab Hi-Temp Pad Holder
& Pad
Bucket, soiled towels
3-Compartment Sink
3
4
5
©McDonald's Corporation · Planned Maintenance Manual · Revised February 2014
Daily
10 minutes per vat to complete
During low volume hours.
McFiltering Kit for built-in filtering
system, sample
Press and hold FILTER button
Make sure oil is hot to get the
best results from filtering and
then press and hold the
FILTER button until 1.AUTO
FILTER shows in display.
Press DOWN button
Press DOWN button and
display shows 2.MAINT
FILTER?
Press  button
Press  button and display
shows MAN FILTER along
with YES NO. Press  button
for YES to drop oil and
display shows DRAINING.
Press X for NO and controls
return to normal operation.
FR 06 D01
Ecolab Hi-Temp
KAY® QSR Fryer
Detail Brush
Cleanser
Page 1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOV Gas 200 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Henny Penny LOV Gas 200 Series

  • Page 1 Maintenance Filter & Fryer Vat Cleaning Daily FR 06 D01 Cleans the vat of crumbs and filters the oil thoroughly to prolong the life of the oil 5 minutes to prepare 10 minutes per vat to complete Time required During low volume hours. Time of day Hazard icons Tools and supplies...
  • Page 2 Maintenance Filter & Fryer Vat Cleaning (continued) Scrub inside vat Rinse again Attach the Pad to the Hi- Once completed, the display Temp Pad Holder and shows RINSE AGAIN?, moisten with shortening. along with YES NO. If vat is Sprinkle KAY® QSR Fryer not yet clean, press ...
  • Page 3 Maintenance Filter & Fryer Vat Cleaning (continued) Pull-out filter drain pan Clean filter drain pan cover, Open the door, lift-up on the crumb basket, filter pad drain pan stop and pull-out retaining ring, bottom screen the filter drain pan assembly, and filter drain pan using the handle on the drain Take all of the removable...
